Caroma International Pty Ltd. ABN 90 35 053 413 157

Rough in:

It is possible to fix the toilet into 10” (255mm) or 12” (305mm)

rough in positioins by rotating the offset adaptor.

IMPORTANT:

Reducing wax ring MUST NOT be used when installing this

toilet bowl as detailed in Fig.2.

Working Water Pressure:

USA & Canada: Recommended working water pressure is

20-80psi (140-550Kpa).

Installation Procedure:

Date of Issue: 7/29/2014

Standard Wax Bowl

Ring

Reducing Wax Bowl

Ring

Fig.2

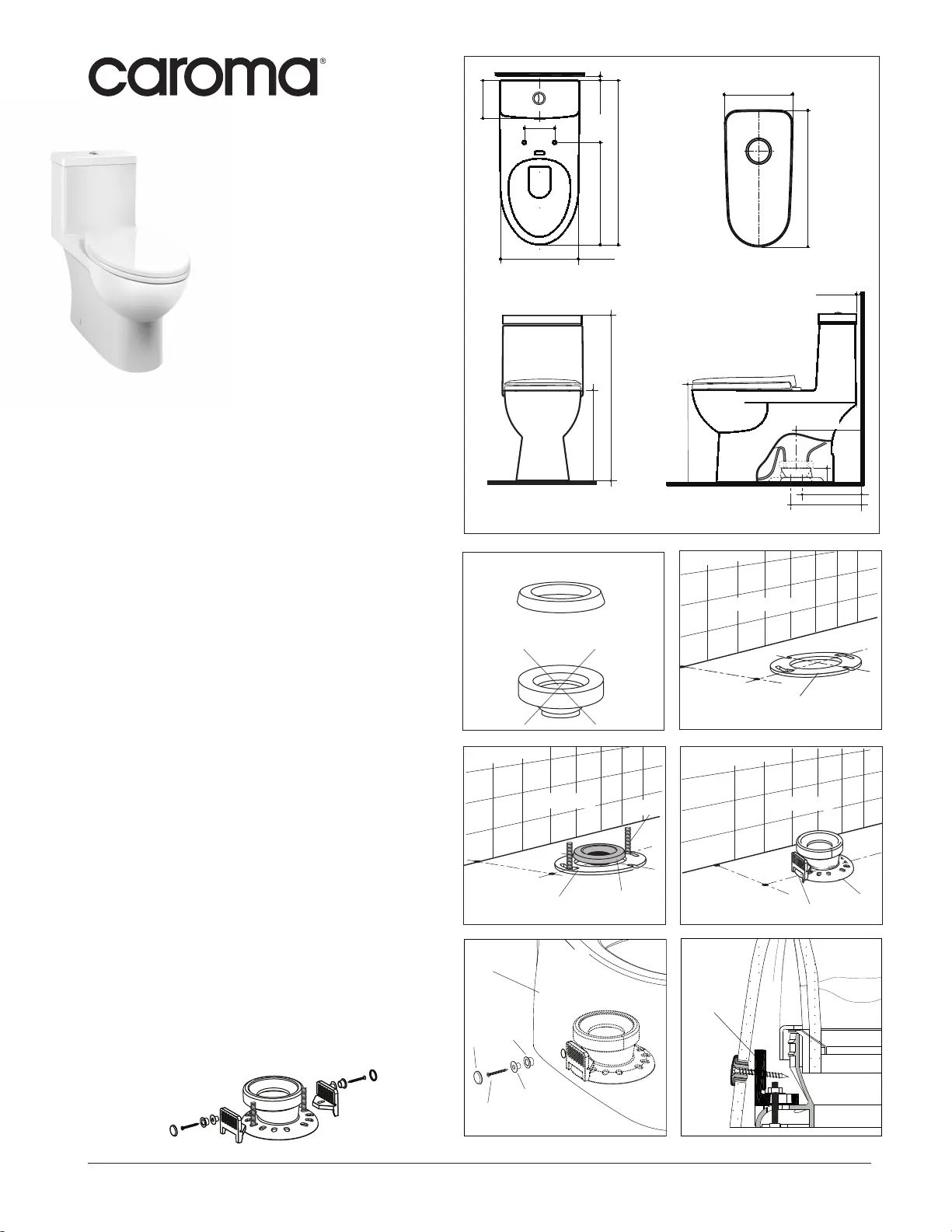

Caravelle Smart One Piece

1.28/0.8 gpf (4.8/3 lpf) Easy

Height Elongated Toilet

#989900

Vitreous China Dual Flush

High Efficiency (HET),

O n e Piece Ultra Low Flush

(ULF) Washdown Toilet.

PLUMBERS INSTALLATION INSTRUCTIONS. PLEASE

READ CAREFULLY BEFORE INSTALLATION.

1. It is important for the installation of Caravelle Smart 1 PC

Washdown toilet that the closet flange be accurately set out

from the finished wall as detailed in Fig.3.

2. Position wax seal and offset adaptor onto “T” bolts as

detailed in Fig. 4 and 5, ensuring that the offset adaptor is

positioned for 10” (255mm) or 12” (305mm) rough in as

detailed in Fig.1.

4. Ensure that the area around the closet bowl is clean and

free from building materials.

6. It is recommended that a bead of silicone caulking is

applied fully around base of the closet bowl.

2"

(50mm)

11"

(280mm)

12”(305mm)

10”(255mm)

6-7/8”

(175mm)

13/16”

(20mm)

29-15/16”

(760mm)

18-1/2”

(470mm)

5-1/2”

(140mm)

14-1/8”

(360mm)

30-3/8”(770mm) approx.

16-1/2”(420mm)

18”(455mm) to top of seat

3/4”

(20mm)

21-1/4”

(540mm)

10-3/4”

(272mm)

Closet Flange

Finished Wall

12" or 10"

(305mm or 255mm)

Closet Flange

Wax Seal

Finished Wall

12" or 10"

(305mm or 255mm)

'T' Bolt

Adaptor

Finished Wall

12" or 10"

(305mm or 255mm)

Fixing

Bracket

Fixing

Bracket

Caravelle Bowl

Cap

SS Screw

Brass Bush

Plastic

Bush

3. Place fixing bracket onto “T” bolt and secure it by hand

tightening nuts and washers onto the “T” bolts. Apply an

additional turn for final installation as detailed in Fig.5.

5. Accurately align the closet bowl over the offset adaptor

and lower into position.

7. Remove any excess silicone caulking.

8. Insert the plastic bushing and brass bushing into the Bowl

fixing hole as shown in Fig.6. Secure the bushings through

the holes in fixing bracket with SS screws as shown in Fig. 7.

Cover the holes with caps.

Fig.1

Fig.3

Fig.4

Fig.5

Fig.6

Fig.7

Fixing Bracket Assembly
