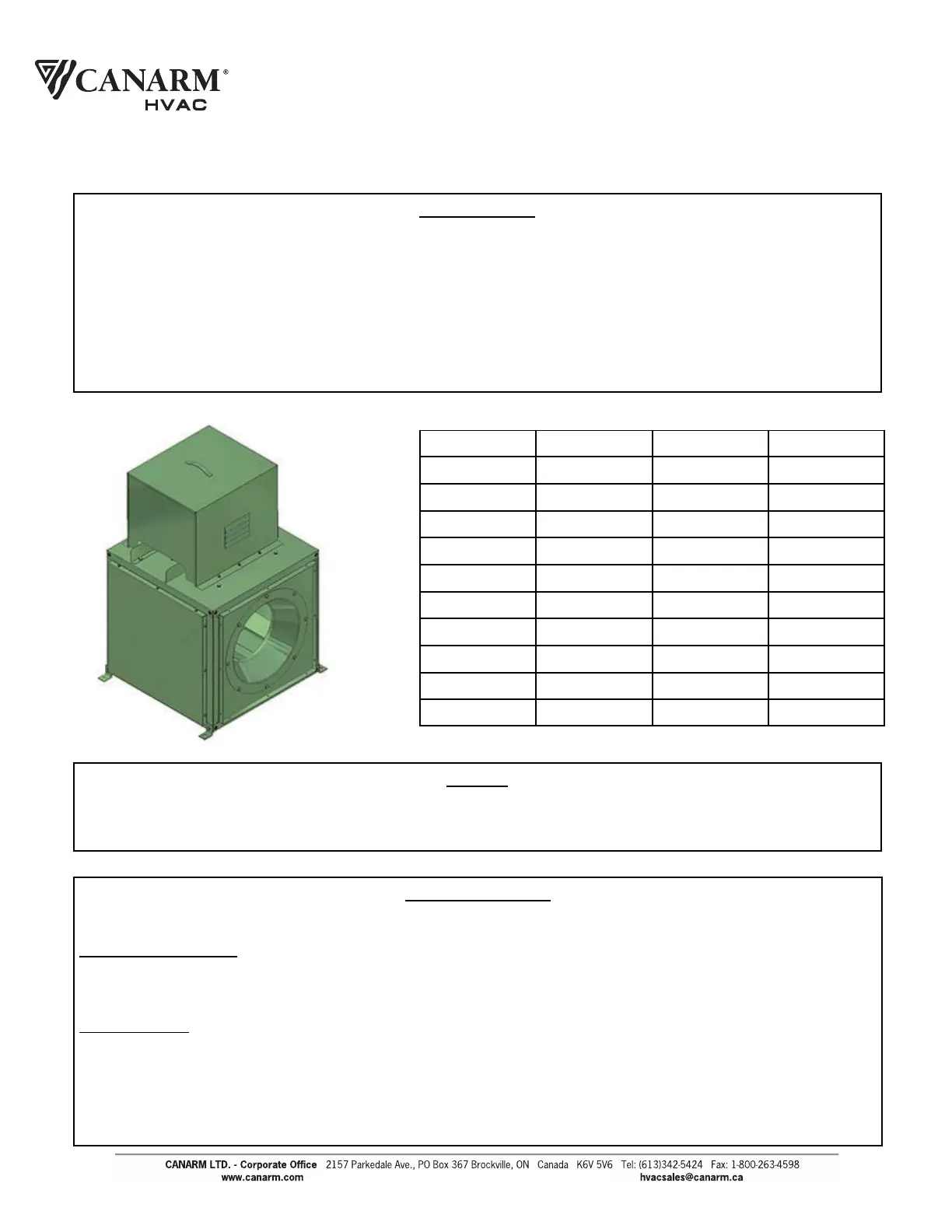

DSQ-B SERIES - BELT DRIVE INLINE BLOWERS

OPERATION INSTRUCTIONS AND PARTS MANUAL

MODELS: DSQ-B-10, DSQ-B-12, DSQ-B-13, DSQ-B-15,

DSQB-16, DSQ-B-18, DSQ-B-20, DSQ-B-22, DSQ-B-24 AND DSQ-B-27

Model Max. H.P. Shaft Dia. Unit Weight

DSQ-B-10 13/4"62

DSQ-B-12 1-1/2 3/4"73

DSQ-B-13 1-1/2 3/4"85

DSQ-B-15 23/4"95

DSQ-B-16 33/4"123

DSQ-B-18 31"140

DSQ-B-20 31"165

DSQ-B-22 51"211

DSQ-B-24 7-1/2 1-3/16" 241

DSQ-B-27 7-1/2 1-3/16" 280

Installation (Fig. 1)

The 4 angle brackets provided allow for base or suspension mounting

Suspension Mounting

For suspension mounting, move the 4 angle iron mounting brackets to the four upper corners (front and rear

or both sides) using the hardware provided, secure the unit to 4 customer provided suspension rods.

Base Mounting

For base mounting, 4 angle iron mounting brackets are supplied in the 4 lower corners (front and rear or both

sides) secure these to the customer supplied base.

Vibration Isolation (not included).

Recommended (spring or rubber) for both suspension or base mount.

General Safety

Rotating parts, (pulleys, shafts and belts) on fans should not be exposed. Where these components are not

protected by ductwork, cabinets or covers, appropriate guards should be employed to restrict exposure to

rotating parts. Access doors should not be opened with the fan operating to avoid foreign objects being drawn

into the system. On initial start-up a careful inspection should be carried out to ensure no foreign material is

present which could become airborne in the system.

Read installation and operation instructions carefully before attempting to install, operate or service Delhi

DSQ-B Series Blowers. Failure to comply with instructions could result in personal injury and/or property

damage. Retain instructions for future reference.

General

Inspect unit for damage, report any shipping damage to carrier. Check all fasteners, re-tighten as required.

Rotate the blower wheel by hand to ensure free rotation. If rubbing occurs, loosen the inlet venturi bolts,

re-position the venturi to establish clearance, re-tighten bolts.
