DPL-DD SERIES

DIRECT DRIVE PLENUM FANS

GENERAL SAFETY

BEFORE YOU BEGIN

INSTALLATION

Rotating wheels on fans should not be exposed. Where these components

are not protected by ductwork, cabinets or covers, appropriate guards

should be employed to restrict exposure to rotating parts. Access doors

should not be opened when fan is in operation to prevent foreign objects

from being drawn into the system. On initial start up, a careful inspection

should be carried out to ensure that no foreign material is present which

could become airborne in the system.

Read installation and operation instructions carefully before attempting to

install, operate or service Canarm DPL-DD Series or Canarm DPL-AF-DD

Series Fans. Failure to comply with instructions could result in personal

injury and/or property damage. Retain instructions for future reference.

It is the responsibility of the purchaser to ensure that the installation and

maintenance of this unit is handled by qualified personnel. Follow all

applicable local and national codes.

Inspect the unit for damage, report any shipping damage to carrier. Check all fasteners and re-tighten as required. Rotate the fan wheel by

hand to ensure free rotation. If rubbing occurs, loosen bolts around the venturi, re-align it to the shroud of the wheel, and re-tighten bolts.

BASE MOUNTING

Secure the unit through the holes located on the base rails to a solid base or isolators depending on your specific requirement. Ensure the

unit is level. Complete installation of ductwork or enclosures.

NOTE: Flexible inlet and outlet duct collars are recommended to minimize vibration transmission.

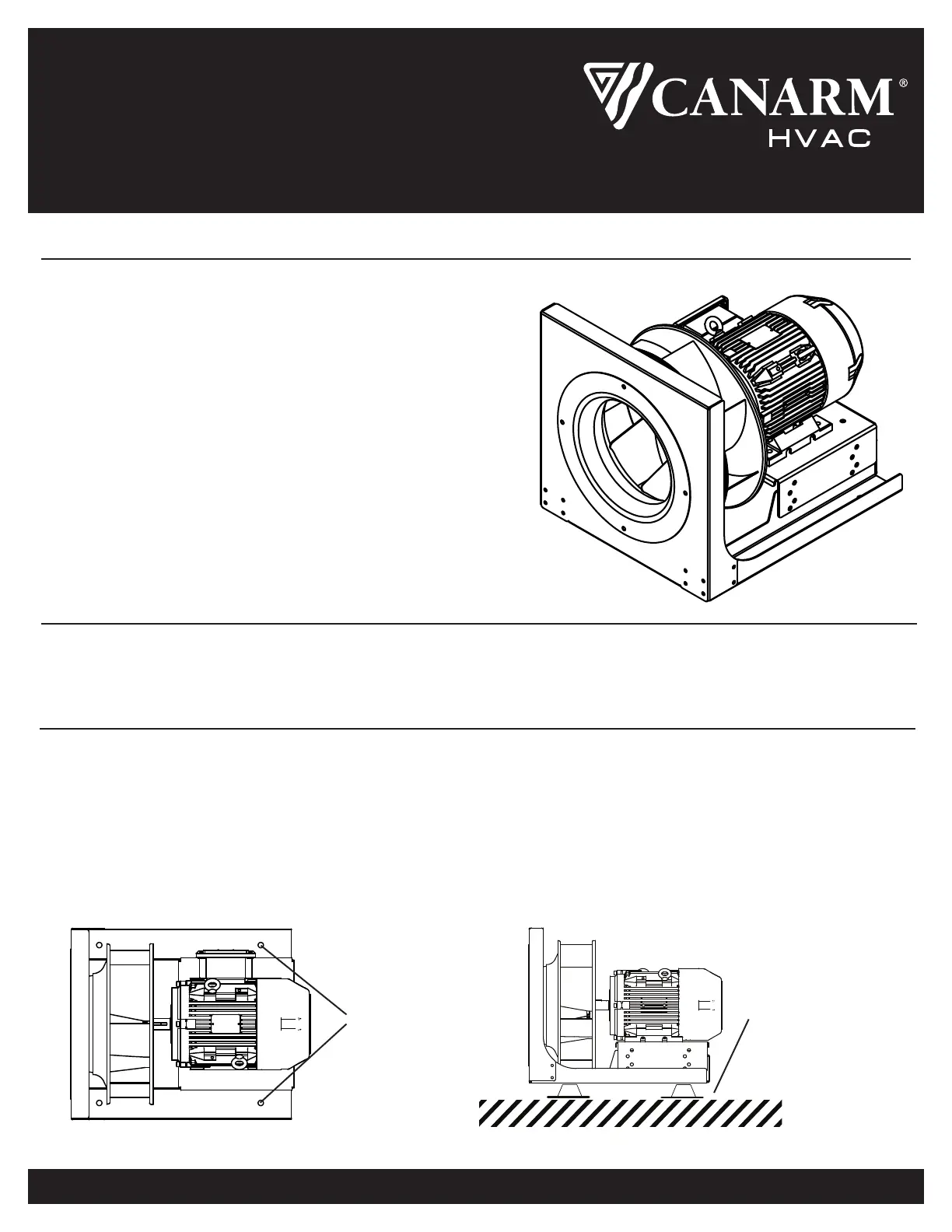

Mounting locations

provided in units

base rails

Secure directly to a solid

base, or install isolators

for vibration dampening.

M-DPL-DD 15_07_24Page 1 of 2

OPERATION INSTRUCTIONS AND PARTS MANUAL

PLEASE READ AND SAVE THESE INSTRUCTIONS

MODELS: DPL-DD, DPL-AF-DD
