A hard working hood that won't interrupt the natural beauty

of your wood cabinets.

FEATURES

•Dual centrifugal blower

•Fire retardant, all metal insert

•Innite speed control

•Energy ecient 24 inch uorescent light (bulb not included)

•Built-in damper/duct connector — vertical or horizontal dis-

charge

•Exclusive Heat Sentry

™

— automatically turns blower on to

high speed when excess cooking heat is detected

•Fits wood hoods with interiors 28-1/4" to 28-7/8" (can be

adapted to wood hoods up to 42" wide)

•Uses Model 103123 Rough-in Kit

VOLTSAMPSRPMVER.HOR.CFMDUCT

1203.715805.04.53603¼" X 10"

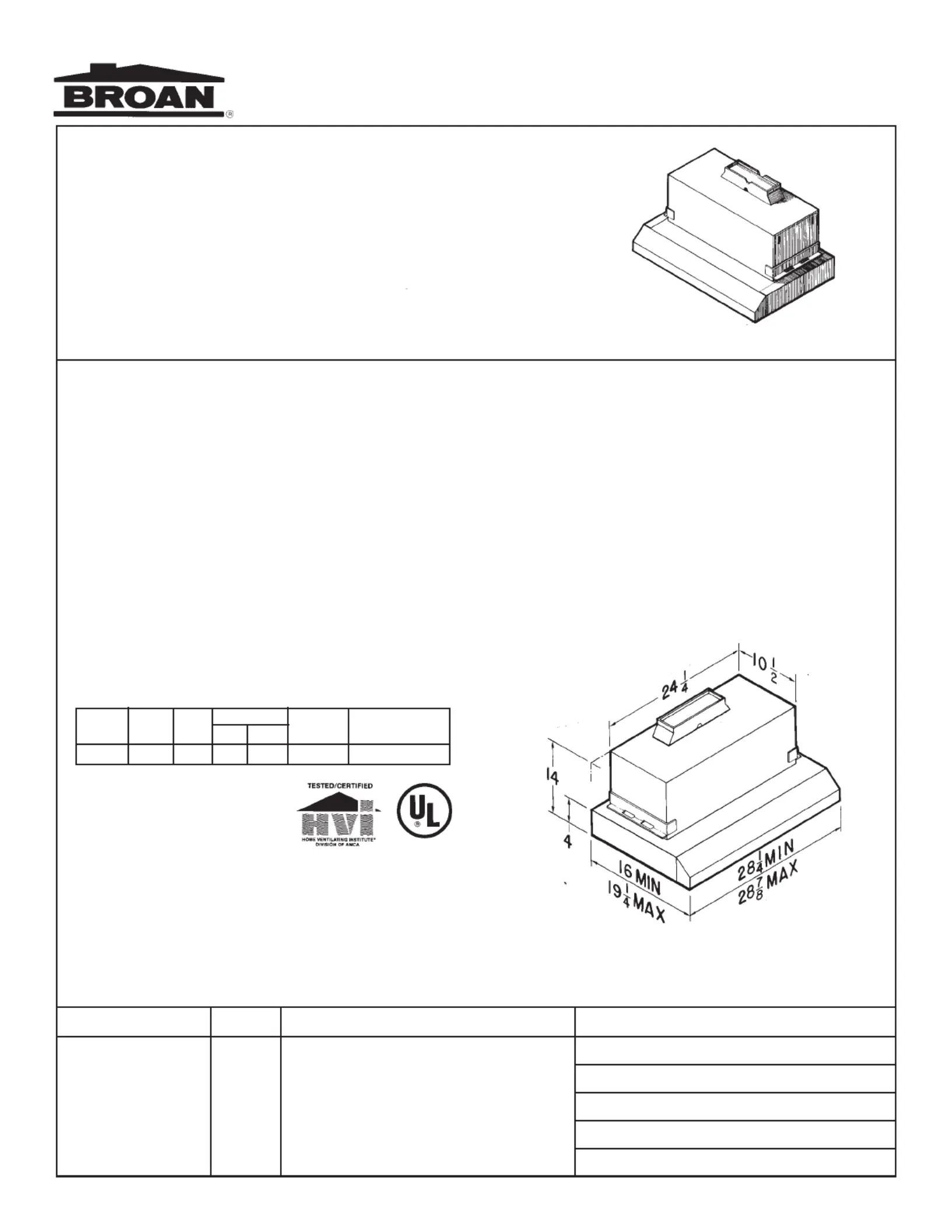

SPECIFICATION SHEET

Broan-NuTone LLC, 926 West State Street, Hartford, WI 53027 (1-800-637-1453)

REFERENCEQTY.REMARKSProject

Location

Architect

Engineer

Contractor

Submitted byDate

TYPICAL SPECIFICATION

Wood Hood Kit shall be Broan Model 103023.

Kit shall have all-metal construction and t in a Wood Hood

up to 42 inches wide. Damper/duct connector to be included).

Unit shall have innite speed control, uorescent light and

dual centrifugal blower. Blower to automatically turn on to

HIGH speed when excess cooking heat is detected.

Air delivery shall be no less than 360 CFM and sound level no

greater than 4.5 Sones (horizontal discharge), 5.0 Sones

(vertical discharge). All air and sound ratings to be certied by

HVI. Unit to be U.L. listed.

01C 99041105C

SPECIFICATIONS

HVI certied ratings comply with testing proce-

dures prescribed by the Home Ventilating Insti-

tute. Ratings are at .10 in. static pressure. Sones

are a measure of loudness and are measured in

HVI's semi-reverberant sound test room.

WOOD HOOD

KIT

SONES
