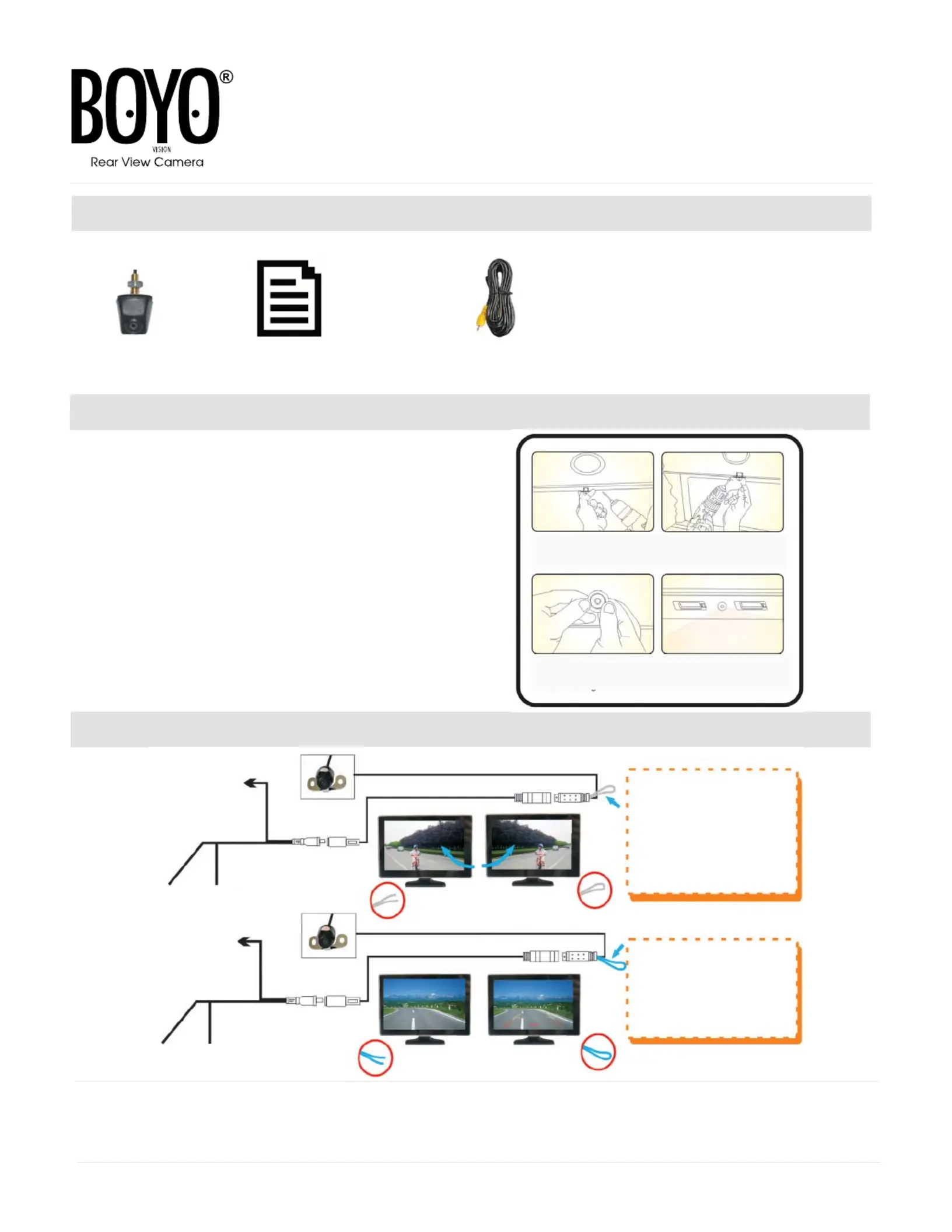

USER’S MANUAL

Model: VTK230HD

MINI LIP MOUNT

1. BILL OF MATERIAL

Camera

Manual

2. SPECIFICATION

• High sensitive 1/4” HD Color CMOS Sensor

(1089)

• Reverse/ Non-reverse image selectable

• Parking guide line on/o selectable

• Waterproof (IP67)

• 170° wide viewing angle

• Super sensitive low Lux performance

• 12VDC (Tolerance 9V ~ 16V)

• Chipset 1089 HD

• Pixel: NTSC/PAL 800x533

• 0.05 Lux

3. WIRING

For technical support contact 888-941-3060 or email [email protected]om

WWW.VISIONTECHAMERICA.COM

4. Installation Tip

To monitor

To monitor

Ground

Ground

12VDC Rear Lamp

12VDC Rear Lamp

Camera

Camera

Video

Video

White

Blue

Cut loop to disable grid line

Cut loop for non-mirror image

If using the camera as front

camera, cut the white loop

to get non-mirror image.

If using the camera as rear

view camera, do not cut the

white loop.

Cut the blue loop to turn o

the parking assist grid lines.

1. Select suitalbe at position

near the license plate light

and mark it.

2. Drill a hole according to the

the camera diameter

3. Mount the camera into the

hole using your two thumbs to

press it evenly for tight and at

mounting

4. Read section #3 for wiring

help.

24’ Male to male RCA cable
