© 2015 Blum, Inc. Subject to technical modifications without notice
6

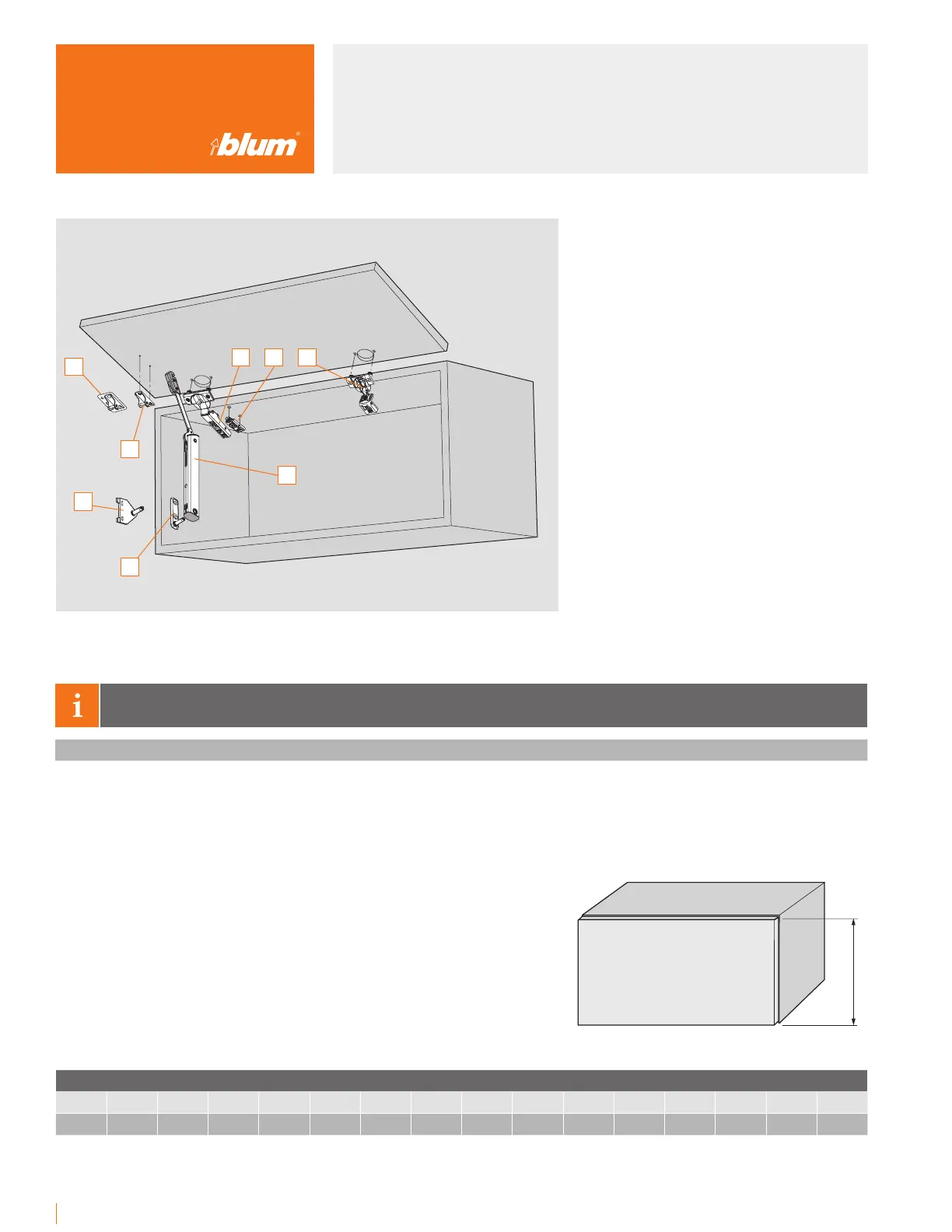

AVENTOS HK-XS
Ordering information
for face frame and panel
▀Well suited for small wall cabinets
▀Cabinet height from
238 (9-3/8") to 610 (24")
▀Interior depth minimum 127 (5")
▀Closes silently and effortlessly with
CLIP top BLUMOTION or
COMPACT BLUMOTION hinges
▀Simple, virtually tool-free assembly and easy
adjustment
▀Symmetrical lift mechanism – can be used on
one or both sides
▀Designed for use with BLUMOTION hinges
Step 1 – Determine the power factor for the application
Determine power factor
To select the correct lift mechanism for a given application, the power factor must first be calculated by using the formula below.
Use the table at the bottom of the page to convert ounces into decimal form for easy calculation.
Example:
Cabinet height: 15 inches (within possible range)
Door weight including twice the handle weight: 9 lb 14 oz (14 oz = .9 lb see chart below)
Total weight converted to decimal is 9.9 lb
Power factor = cabinet height multiplied by door weight including twice the handle weight
Power factor = 15 x 9.9
Power factor = 148.5
A power factor of 148.5 requires lift mechanism 20K1501
NOTE:AVENTOS planning tools available at blum.com/planning
weight conversion chart
oz123456789101112131415
lb.1.1.2.3.3.4.4.5.6.6.7.8.8.9.9
door weight + twice handle weight = 9 lb 14 oz
381 (15")
Power factor = cabinet height (inch) x door weight including double handle weight (lb)
4a
1
4b
3b
3a
2b
2a
5
