I . Main description:

Working temperature: -20-60 Input Supply Voltage: DC12V~24V ℃

External dimension: L0*W2*H57 3414 Output : 24-CMOS open-drain output

Connection mode: common anode

Output current: 2A/channel

IIFunction:．

1.

2. DMX signal can be received when coding switch FUN (10) = OFF (ON is set 0)

3. When coding switch that FUN (10) isON, its function is as follows:

Coding switch

Function

switch1-9 is off

black

Switch1=ON

red

Switch2=ON

green

Switch3=ON

blue

Switch4=ON

yellow

Switch5=ON

purple

Switch6=ON

cyan

Switch7=ON

white

Switch8=ON

seven-color jumpy changing(8 step speed)

Switch9=ON

seven-color gradual changing (8 step speed)

4. If coding switch is 8 or 9, from 1 to 7 is the choice for speed, there are 8 steps in all, the description is as follows:

Coding switch

Function

switch1-7 is off

0 steps

Switch1=ON

1 steps

Switch2=ON

2 steps

Switch3=ON

3 steps

Switch4=ON

4 steps

Switch5=ON

5 steps

Switch6=ON

6 steps

Switch7=ON

7 steps (the greatest speed)

5. There are several switches is ON at the same time, the great value is standard.

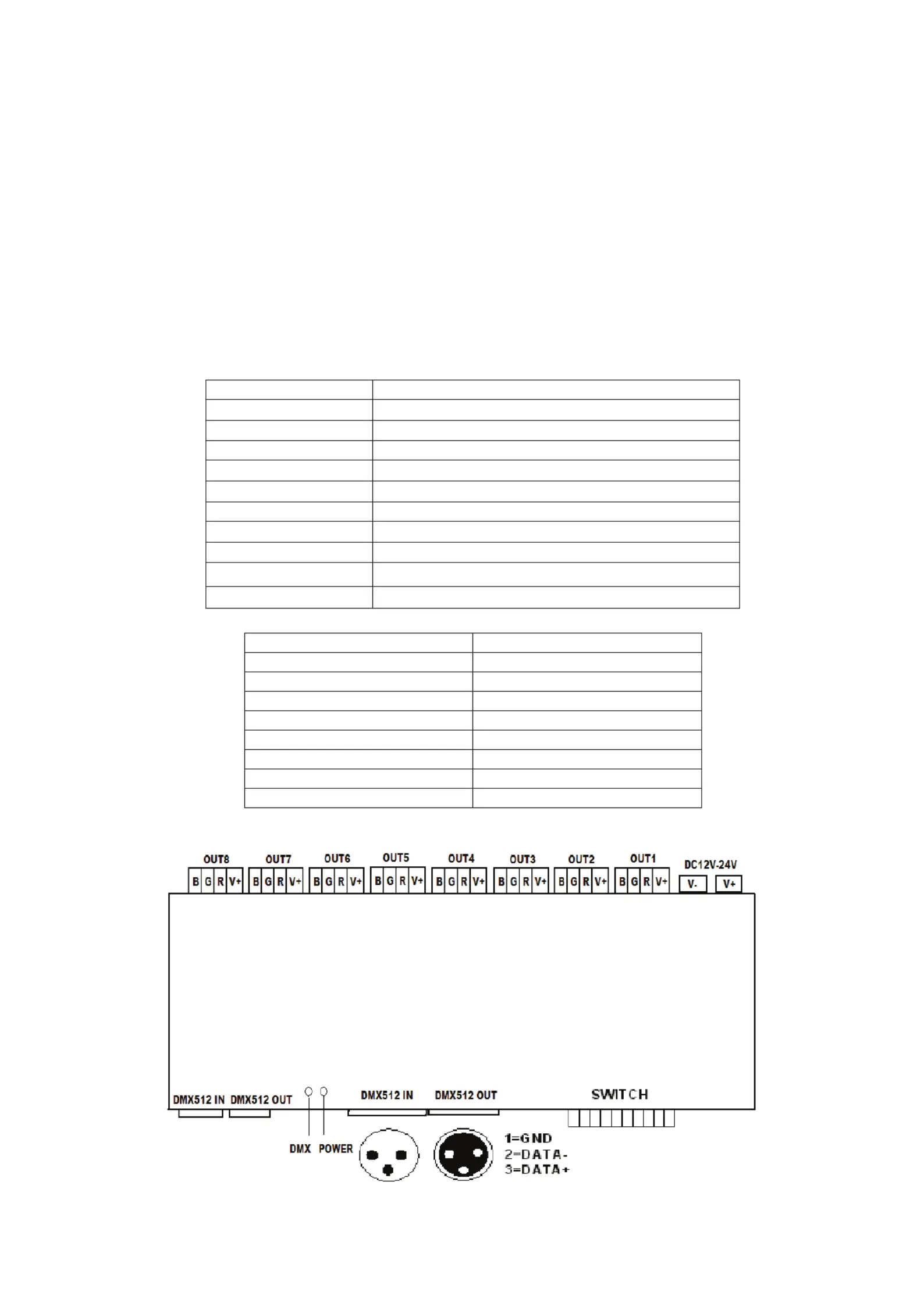

III. Interface diagram:

IVAttention: ．

1. Supply voltage of this product is DC12V~24V，other higher voltages would most probably destroy it.

2. Lead wire should be connected correctly according to colors that connection drawing offers.

Blizzard Lighting - Komply™ DMX-24

24CH DMX512 Decoder

the

Each Komply DMX-24 controller occupies 24 DMX addresses. Each coding switch can set address code from 1

to 9, 1 is the lowest, and 9 is the highest. A combination of 511 address codes are possible. DMX original

address code is the total value of the coding switch value from 1 to 9. Dial the coding switch upward (ON is set

to 1) to set the bit value (by default the bit value is 0). For example: if you want to set 37 as the address code,

you can only dial down the first, the third, and the sixth code switch, the total value of coding switch from 1 to

9 is 32+4+1. The default address code of DMX512 is 37.
