Order toll-free in the U.S.: Call 877-877-BBOX (outside U.S. call 724-746-5500)
FREE technical support 24 hours a day, 7 days a week: Call 724-746-5500 or fax 724-746-0746
Mailing address: Black Box Corporation, 1000 Park Drive, Lawrence, PA 15055-1018
Web site: www.blackbox.com • E-mail: info@blackbox.com
Customer
Support
Information
February2010
MT1000A-85-R4
BLACKBOX
®

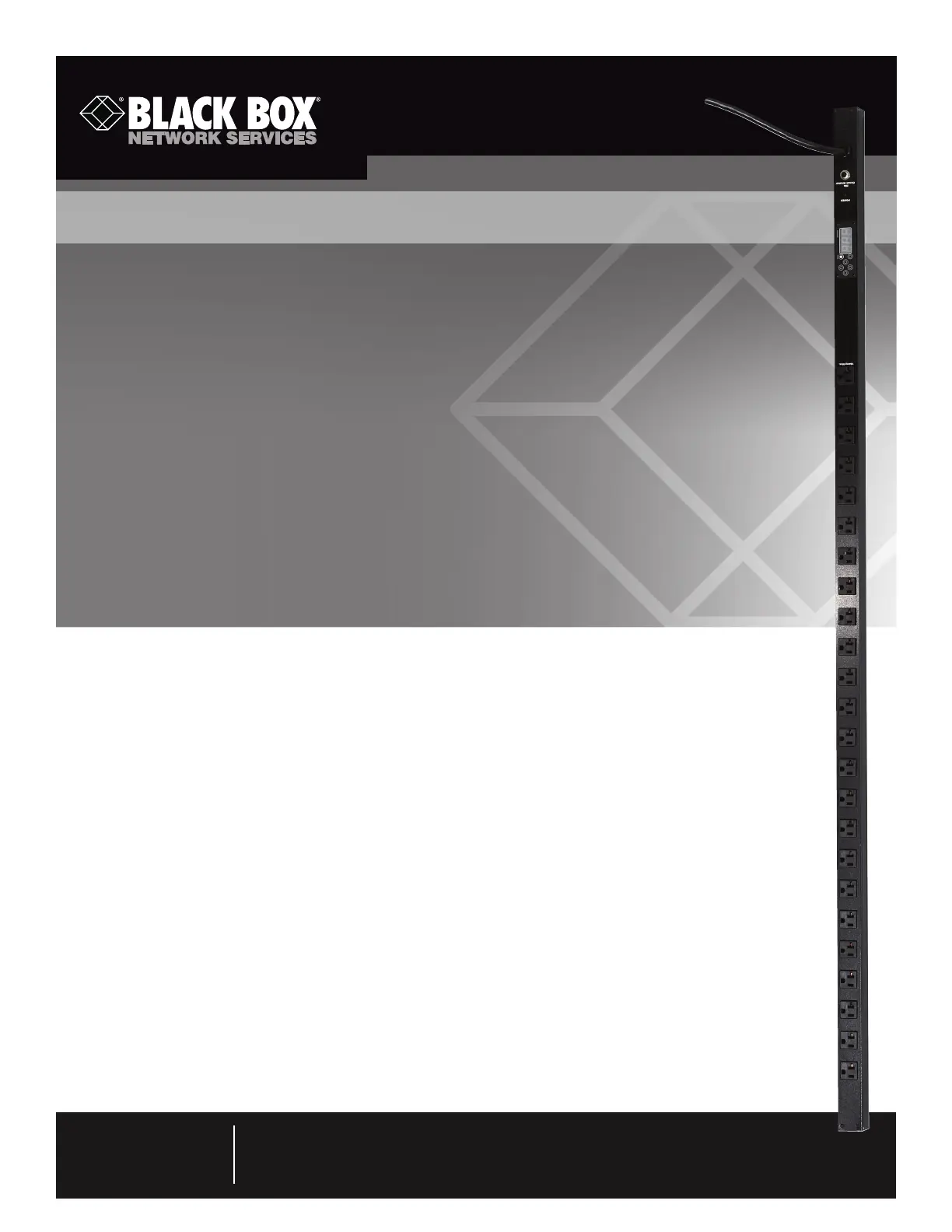

20-Amp Metered Vertical PDU, 24-Outlet (5-20R)
This 20-amp, vertically mounted power distribution unit is 60 inches long,
features a current meter, and has 24 outlets.
PDUMV24-S20-120V
PDUMV24-S20-120V
Overview
The metered PDU LCD display shows the current power draw
in amps. The metered PDU only has one function button,
MUTE, located next to the display. The metered PDU’s alarm
sounds when the current draw reaches 90% of capacity (18
amps). The alarm can be turned off by pressing the MUTE
button. When the current draw excedes 90% the maximum
current rating, the alarm cannot be muted, and the PDU alarms
until the current draw is reduced.
Environmental: Operating Temperature: 32 to 104° F
(0 to 40° C);
Storage Temperature: 32 to 149° F (0 to 65° C);
Operating and Storage Humidity: 0 to 90%,
noncondensing relative
cUL Listed:Yes
RoHS:Yes
Specifications
Circuit Breaker: 20 A
Cord Connector:L5-20P
Cord Length: 15 ft. (4.5 m)
Cord Type: SJT 12/3C
Current Alarm:Yes
Current Rating:20 amps (16A derated)
Input Voltage: 120 VAC
Metered: Yes, 3-digit LED
Mounting:Vertical
Number of Outlets:24
Outlet Location:Front
Outlet Max. Current:20A
Outlet Type:5-20R
Indicator: Power LED
Product specificaties
| Merk: | Black Box |
| Categorie: | Stekkerdoos |
| Model: | PDUMV24-S20-120V |
| Kleur van het product: | Zwart |
| Afmetingen (B x D x H): | 38 x 152.4 x 38 mm |
| Montage: | Verticaal |
| Stekker: | NEMA L5-20P |
| Rackcapaciteit: | 1U |
| AC-ingangsfrequentie: | 50 - 60 Hz |
| Bedrijfstemperatuur (T-T): | 0 - 50 °C |
| Aantal AC uitgangen: | 24 AC-uitgang(en) |
| Nominale input voltage: | 120 V |
| Stopcontacttypes: | NEMA 5–20R |
| Stroom (max.): | 20 A |
| PDU types: | Gemeten |
