This antenna is specically designed for indoor AM/FM radio reception,

featuring a compact and stylish housing to complement your AM/FM

radio.

Range and performance can be impacted by several external factors.

See "Tips for better reception" and "Troubleshooting" to improve

reception.

Package contents

• Balun adapter

• Antenna stand

• Power adapter

Features

• Receive AM/FM radio broadcasts, including HD

• Maximize reception and sound quality

• Easy routing with coaxial cabling

• Ensure stability with a weighted, non-slip base

• Expands connection options with balun adapter

• Built and backed by Best Buy

*Note: Mile range will vary, depending on a wide range of environmental and

geographic factors.

Setting up and using your antenna

Install this antenna near your AM/FM radio or receiver with an AM/FM

tuner.

1Select a location to place your antenna. See “Tips for Better Reception”

for more information.

Note: This is an indoor antenna. Do not place it outside.

2If your radio has a 75-Ohm FM connector, connect the antenna’s

coaxial cable to your radio’s 75-Ohm FM connector.

OR

If your radio has a 300-Ohm FM connector, connect the antenna’s

coaxial cable to the balun adapter, then connect the other end of the

balun adapter to your radio’s push-button or screw terminals.

3Connect the antenna’s AM cable to your radio’s push-button or screw

terminal AM connector.

4Connect the power adapter to the antenna’s DC 12 V input, then plug

the AC end into an AC outlet.

Note: Use only the supplied power adapter.

Before using your new product, please read these instructions to prevent any damage.

AM/FM Powered

Radio Antenna

Quick Setup Guide

BE-ANT20FM

• Antenna

• Quick Setup Guide

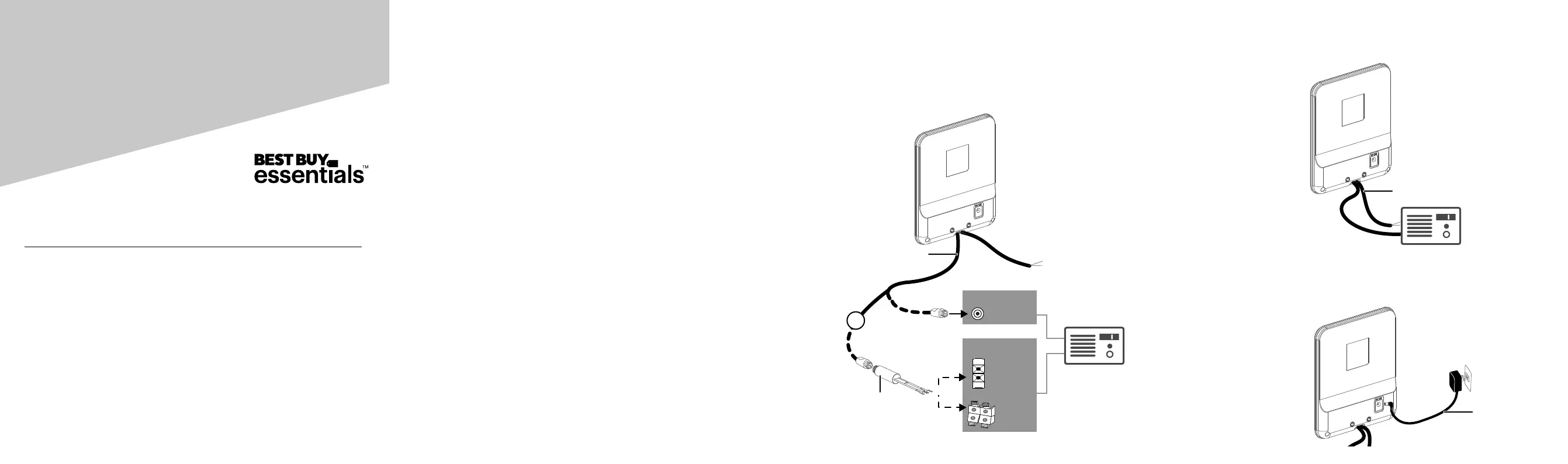

FM ANT

75Ω

300Ω

Rear Panel of Radio FM ANT

OR

Balun adapter

OR

Push-button

terminals

Screw

terminals

Coaxial cable

300-Ohm FM

75-Ohm FM

AM cable

Power adapter

OR
