Recommended tools:

Compatibility:

BBO-09:

- PF30 (68/73 x Ø46mm) + Ø30mm spindle BB30 cranksets

BBO-29:

- BB86/92 (86.5/89/91.5 x Ø41mm) + Ø24mm spindle

cranksets

ENDEFRNLESPT MANUAL / HANDBUCH / MANUEL / HANDLEIDING / MANUAL / MANUAL /

ITHUPLCZ MANUALE / HASZNÁLATI UTASÍTÁS / / PODRĘCZNIK UŽIVATELSKÁ PŘÍRUČKA

/ MANUÁL / JP使用説明書/RUРУКОВОДСТВО ПОЛЬЗОВАТЕЛЯ / SKNOHÅNDBOK

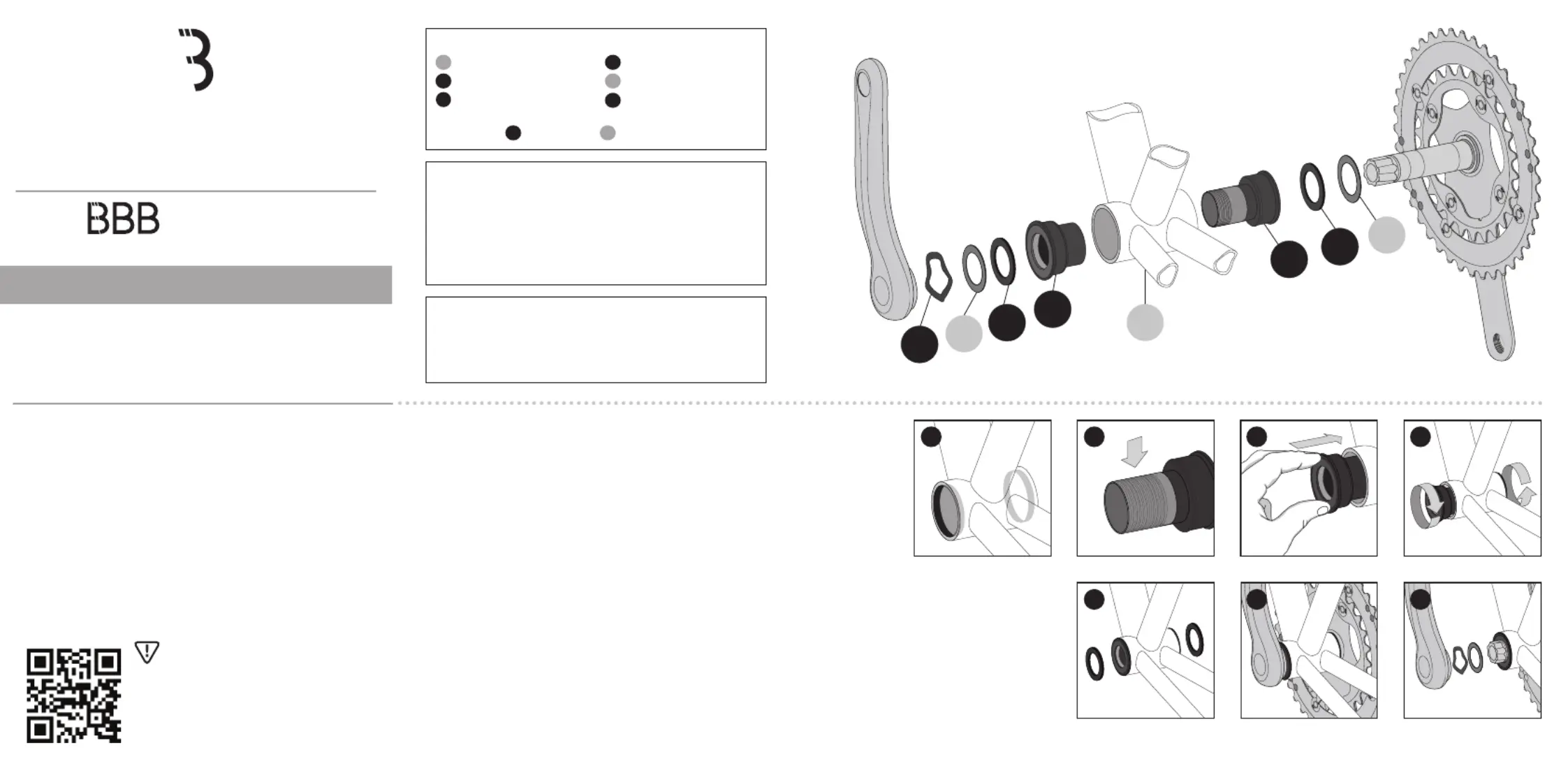

Components:

3

2

1

Boachettom brk setll

Nodve (x1)n-riside cup

Dve de (x1)risi cup

5

6

4

2. 5mmsprsace

Sh simSetsperac

Wave washerspring

IncludedNot Included

BBB has no responsibility for misprints or changed technical content.

BOTTOMFIT

/BBO-09/29

BOTTOM BRACKET

BBB CYCLING.COM

ROO SEVELTSTRAAT 46, 2321 BM

LEIDEN. THE NETHERLANDS

BCD

E

A

FG

IMPORTANT:

* Before installing a bottom bracket, use a reaming tool if required

and make sure the bottom bracket (BB) shell is clean and free ①

of metal chips, dirt and excess paint.

* Inspect the BB shell for width, ID, ovalization or anything that

could cause potential problems.

* Always use a calibrated torque wrench to tighten crank bolts.

* BBB Cycling cannot guarantee compatibility with you frame and/or

crank combination, consult your manufacturer for compatibility.

* BBB Cycling cannot be held responsible for any damage occured.

Find your translation on

BBBcycling.com

WARNING

Sold only by professional bicycle dealers.

For proper installation, ask your BBB dealer.

Not following the instructions in this manual may

cause damage to the product not covered under

warranty, damage to the bicycle, or cause an

accident resulting in injury or death.

INSTALLATION:

A. After checking BB shell carefully, apply a thin layer of grease, PTFE (for Carbon) or ①

anti-seize compound (for Ti) on the inside surface of BB shell ①.

B. Apply a little bit of grease on the cup threads. DO NOT use PTFE, anti-seize or thread

locking compound.

C. First insert the drive side cup preferable with a press tool, then insert non-drive ③

side cup until the threads engage while making sure you do not cross-threads the②

cups.

D. Use the BracketGrip cup tools to tighten until the lip of the cups are flush against

the BB shell (Max. 40Nm, for Carbon shells lower torque is recommended.). ①

E. - BBO-09: If your BB shell is 68mm wide and you are trying to assemble an MTB crank, ①

you might need to add a 2.5mm spacers on each side (depends on crank brand/type).④

- BBO-29: If your BB shell is 89mm wide, add the 2.5mm spacer on the Drive-side.①④

F. Install crankset following manufacturers specifications.

G. Add the Wave spring washer if needed to add preload on the bearings and crankset. ⑥

Add ShimSet spacers if necessary to take up any play or adjust chainline. ⑤

If binding occurs, try removing spacers or the Wave spring washer ⑥.
