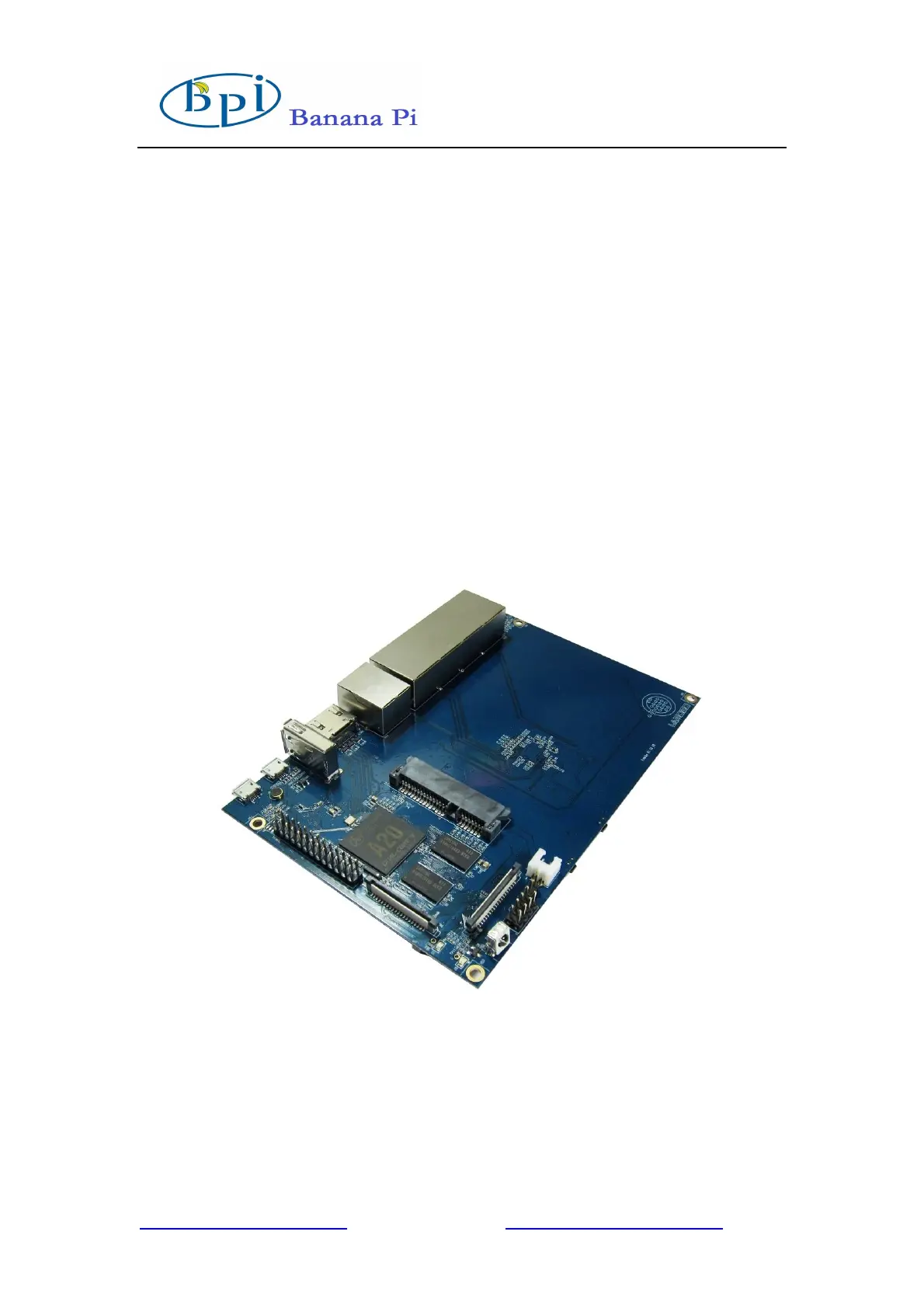

BPI-R1 User Manual
http://www.banana-pi.com http://www.sinovoip.com.cn
1
SinoVoip Co.,Limited
BPI-R1
User Manual
BPI-R1 User Manual
http://www.banana-pi.com http://www.sinovoip.com.cn
2
The BPI- R1 is a 300Mbps Wireless N Router with both wired and wireless network
connections designed specifically for smart home networking use. With 2T2R MIMO
Technology and two detachable antennas, the R1 is the dual core Android 4.2 product which
more better than Linux product. It can run with Android 4.2.2 smoothly and with Gigabit
ethernet port, SATA Socket, it can easily run with the game and support 1080P high definition
video output.
Hardware specification
CPU A20 ARM Cortex™-A7 Dual-Core
GPU ARM Mali400MP2Complies with OpenGL ES 2.0/1.1
Memory (SDRAM) 1GB DDR3 (shared with GPU)
Onboard Storage Micro SD (Max. 64GB) card slot UP to 2T on 2.5 SATA disk
Onboard Network 10/100/1000 Ethernet RJ45, WLAN @802.11b/g/n
Video Input A CSI input connector allows for the connection of a designed camera
module
Video Outputs HDMI , LVDS/RGB
Audio Output
Audio Input
3.5 mm Jack and HDMI
Microphone
Power Source 5 volt via Micro USB(DC In Only)
USB 2.0 Ports USB Host and Micro USB (OTG)
Buttons Reset button: Next to Power button
Power button: Next to Battery connector
GPIO(2X13) pin GPIO,UART,I2C bus ,SPI bus with two chip selects,
CAN bus,ADC,PWM,+3.3v,+5v,ground.
LED Power Key & RJ45
Remote IR
OS Android 4.2, Linux
Interface definition
Product size 148 mm Ă— 100mm
Weight 83g
BPI-R1 User Manual
http://www.banana-pi.com http://www.sinovoip.com.cn
3
Hardware
Front:
Back:
