AXAC-FD1
INSTALLATION INSTRUCTIONS
AxxessInterfaces.com © COPYRIGHT 2023 METRA ELECTRONICS CORPORATION REV. 4/24/23 INSTAXAC-FD1
INTERFACE FEATURES
TOOLS REQUIREDINTERFACE COMPONENTS
REQUIRED ITEMS
TABLE OF CONTENTS
Introduction ...........................................................2
Configuration ..................................................... 2-5
Connections ............................................................ 6
Installation .............................................................7
Programming .........................................................7
• (4) Camera inputs *
• Reverse signal trigger generated via CAN bus communication of the vehicle
•
Turn signal trigger generated via CAN bus communication of the vehicle
• (4) Programmable camera control wires
• USB Micro-B updatable
* Models equipped with NAV can only use front and rear camera inputs
Note: AXAC-FDSTK (sold separately) required for 2014-Up models
with a 4.2-inch display screen.
• Crimping tool and connectors, or solder gun,
solder, and heat shrink
• Tape • Wire cutter • Zip-ties
• AXAC-FD1 interface
• AXAC-FD1 interface harness
• AXAC-FD1 vehicle harness (qty. 2)
• 12-pin T-harness
• 54-pin T-harness
Update Cable: AXUSB-MCBL (sold separately)
Supplemental Harness ‡: AX-ADDCAM-FDSTK
(sold separately)
Axxess Updater Program
‡ 2014-Up models with 4.2-inch display screen only
Note: Only compatible with NTSC cameras.
Visit AxxessInterfaces.com for more detailed information
about the product and up-to-date vehicle specific applications
Ford† Camera Interface With Pre-Wired Harness
2011-Up
†
With either a 4.2-inch, 6.5-inch, or 8-inch display screen
APPLICATIONS
Ford
Edge ..........................................2011-Up
Escape ...................................2013-2019
Explorer ...................................2020-Up
F-150......................................2013-2020
F-250/350/450/550 .................2017-Up
Focus ......................................2012-2019
Fusion .......................................2013-Up
Mustang ....................................2015-Up
Transit ....................................2014-2019
Transit Connect .....................2015-2018
Ranger ..................................... 2019-Up
ATTENTION: With the key out of the ignition,
disconnect the negative battery terminal
before installing this product. Ensure that all
installation connections, especially the air
bag indicator lights, are plugged in before
reconnecting the battery or cycling the ignition
to test this product.
NOTE: Refer also to the instructions included
with the aftermarket radio.
Product Info
2
CONFIGURATION
• Download and install the Axxess Updater available at: AxxessInterfaces.com
• Connect the AXUSB-MCBL update cable (sold separately) between the interface and the computer.
The cable will connect into the micro-B USB port in the interface.

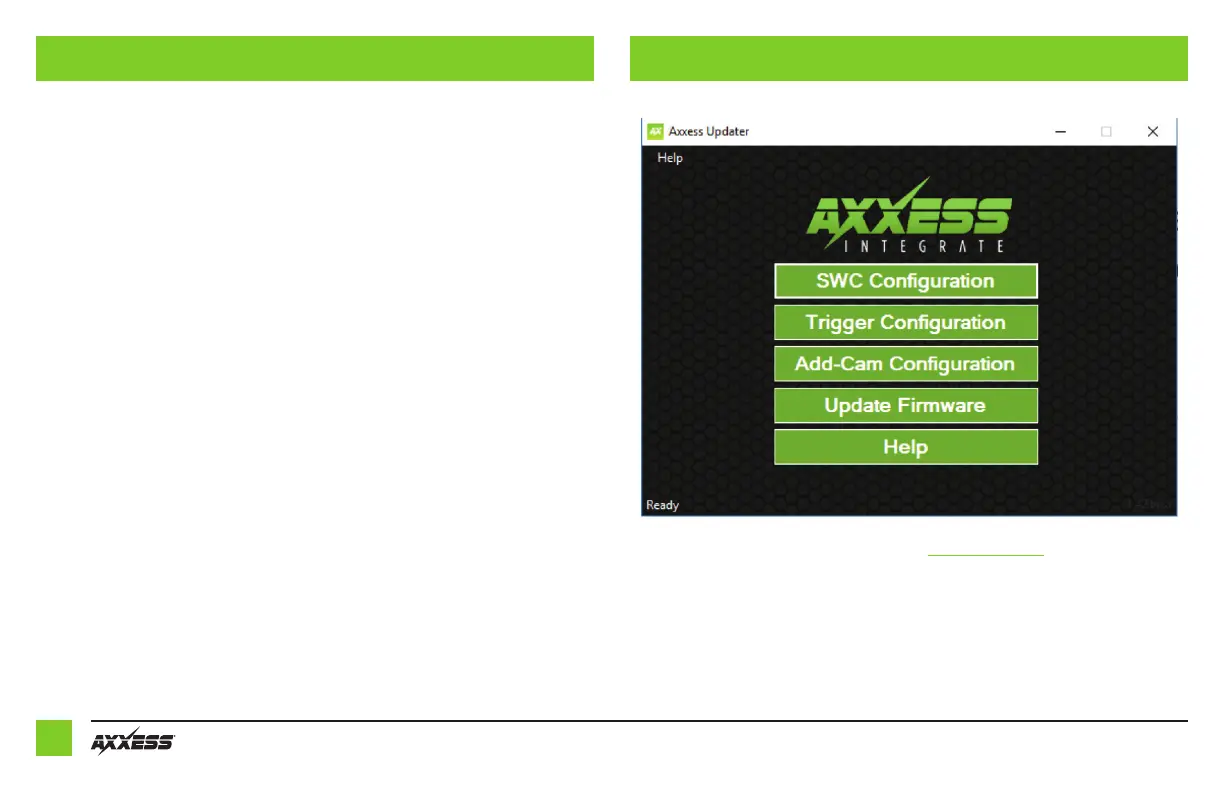

• Open the Axxess Updater and wait until the word “Ready” is listed in the bottom left of the screen.
• Select Add-Cam Configuration.
Continued on the next page
INTRODUCTION
The AXAC-FD1 is a camera switching interface that provides:
• A front camera, and/or side cameras that can be added to the factory radio.
• Up to (3) additional camera inputs to the factory radio, while still retaining the factory camera.
• Automatic camera function, no human interaction is required, unless desired.
• Up to (4) cameras, if the vehicle doesn’t come equipped with a backup camera.
Note: Axxess recommends cameras from the iBEAM product line for best results.
