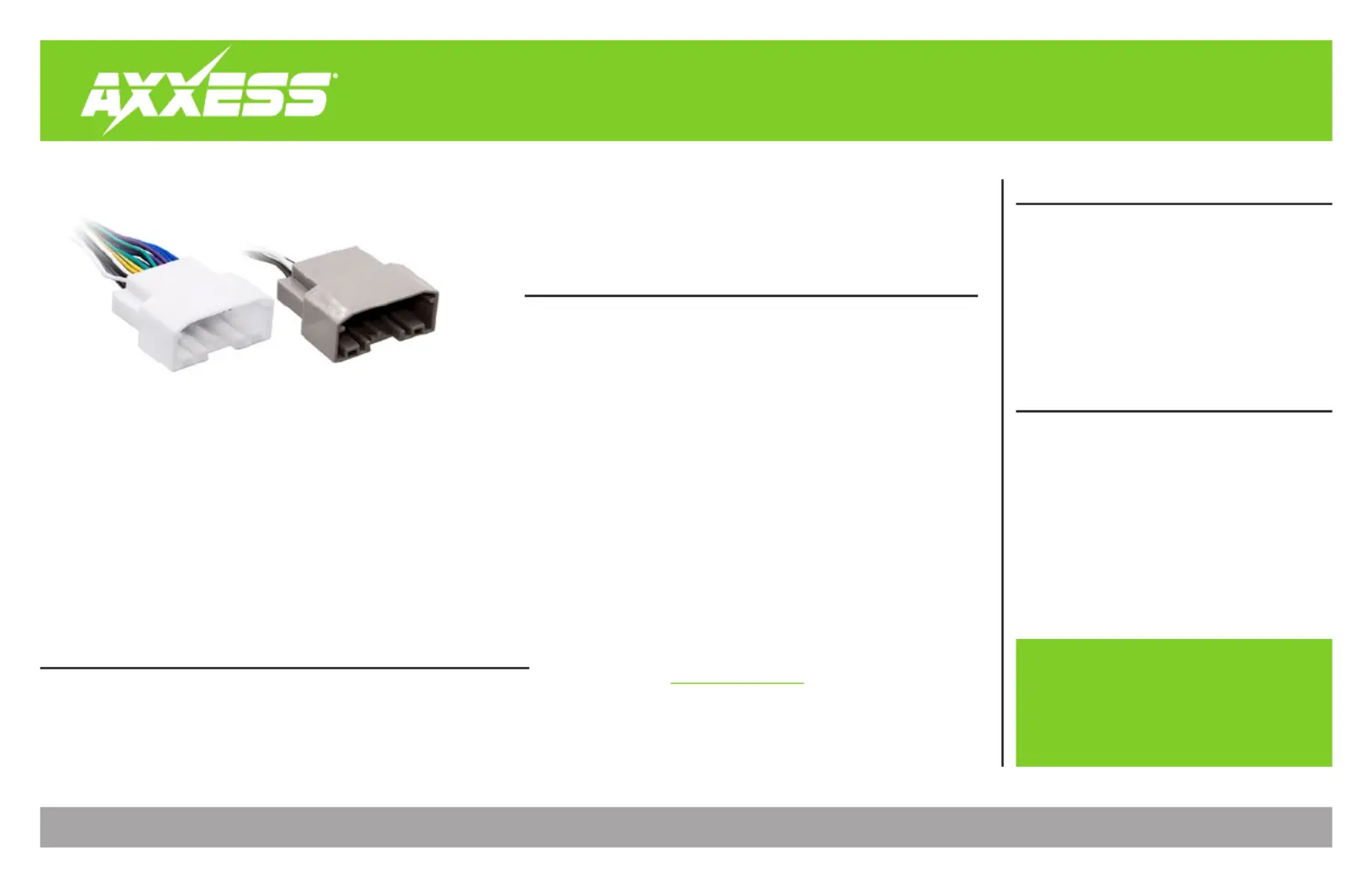

CAUTION!
All accessories, switches, climate
controls panels, and especially air bag indicator
lights must be connected before cycling the
ignition. Also, do not remove the factory radio
with the key in the on position, or while the
vehicle is running.
AXABH-CH3
I N S TA L L AT I O N I N S T R U C T I O N S
AxxessInterfaces.com © COPYRIGHT 2025 METRA ELECTRONICS CORPORATION REV. 6/03/25 INSTAXABH-CH3
TOOLS REQUIRED
• Crimping tool and connectors, or solder gun,
solder, and heat shrink
• Tape • Wire cutter • Zip ties
TABLE OF CONTENTS
Connections
Fiat 500X 2015-2017 2 .............................................
Jeep Renegade 2015-Up 2 ......................................
APPLICATIONS
Fiat
500X 2015-2017 ................................
Jeep
Renegade 2015-2020 ......................
Refer to the following pages for the vehicle specific instructions for wiring connections. Wiring connections vary per vehicle. Please note that
there are (2) different wiring harnesses included, and the instructions for each harness will be listed.
If it’s uncertain whether the vehicle contains a specific speaker or not, test the wires with a tone generator, or check to see if the factory wires
are populated on the vehicle side. Alternatively, the wires can be tested for impedance with a multimeter.
Amplifier Bypass Harness
Fits Select Fiat/Jeep Models 2015-2020
FEATURES
• Vehicle-specific harness to bypass the factory amplifier
• Saves the installer unnecessary labor and wire
• 20 gauge wires
• Wire Length: 12”
Visit for more detailed AxxessInterfaces.com
information about the product and up-to-date
vehicle specific applications.
AxxessInterfaces.com © COPYRIGHT 2025 METRA ELECTRONICS CORPORATION REV. 6/03/25 INSTAXABH-CH3
I N S TA L L AT I O N I N S T R U C T I O N S
AXABH-CH3
Having difficulties? We’re here to help.
Contact our Tech Support line at:
386-257-1187
Or via email at:
techsupport@metra-autosound.com
Tech Support Hours (Eastern Standard Time)
Monday - Friday: 9:00 AM - 7:00 PM
Saturday: 10:00 AM - 5:00 PM
Sunday: 10:00 AM - 4:00 PM
Metra recommends MECP
certified technicians
Black 16-Pin harness:Gray 16-Pin harness:
Gray N/A
Gray/Black N/A
White N/A
White/Black N/A
Orange N/A
Orange/Black N/A
Red N/A
Red/Black N/A
Brown To Front Left Twiddler Speaker +
Brown/Black To Front Left Twiddler Speaker –
Black
To Front Right Twiddler Speaker +
Black/White
To Front Right Twiddler Speaker -
Gray To Passenger Door Speaker +
Gray/Black To Passenger Door Speaker –
Blue To Subwoofer Coil 1 +
Blue/Black To Subwoofer Coil 1 -
Purple To Subwoofer Coil 2 +
Purple/Black To Subwoofer Coil 2 –
Green To Left Rear Twiddler Speaker +
Green/Black To Left Rear Twiddler Speaker -
Yellow
To Right Rear Twiddler Speaker +
Yellow/Black
To Right Rear Twiddler Speaker –
White To Driver Door Speaker +
White/Black To Driver Door Speaker -
Fiat
500X 2015-2017
Jeep
Renegade 2015-2020
