MetraOnline.com © COPYRIGHT 2022 METRA ELECTRONICS CORPORATION REV. 8/30/23 INST99-6525

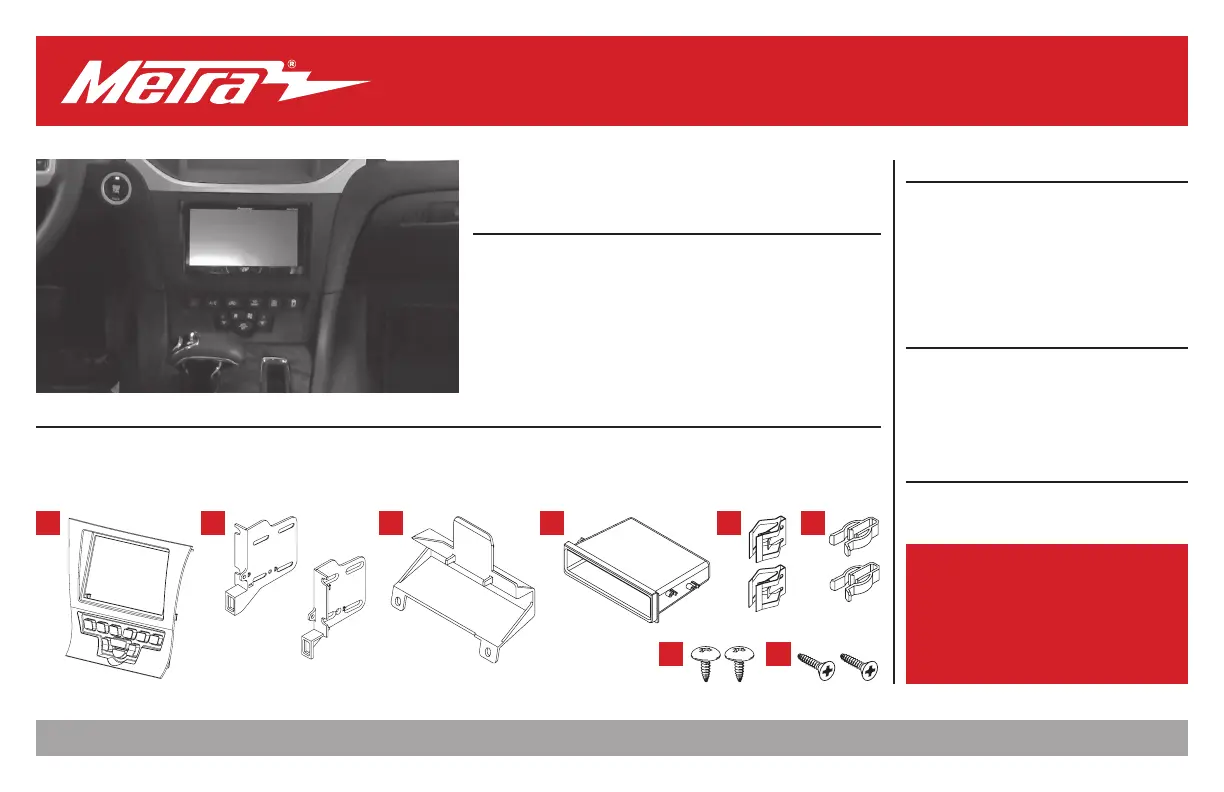

INSTALLATION INSTRUCTIONS

99-6525

ATTENTION: With the key out of the ignition,

disconnect the negative battery terminal

before installing this product. Ensure that all

installation connections, especially the air bag

indicator light, must be secure before cycling

the ignition to test this product.

NOTE: Refer also to the instructions included

with the aftermarket radio.

KIT FEATURES

• ISO DIN radio provision with pocket

• ISO DDIN radio provision

• Integrated buttons and included interface for climate functions

• Painted matte black (99-6525B) or high gloss black (99-6525HG)

Note: • Does not retain sound from Driver Convenience Group.

• Track and launch control features from SRT Package will be lost.

KIT COMPONENTS

• A) Radio trim panel with climate controls • B) Radio brackets • C) Lower support bracket • D) Pocket • E) Metal panel clips (2) • F) Plastic panel

clips (2) • G) #8 x 3/8" Phillips pan-head screws (2) • H) #8 x 1/2" Phillips countersunk flat-head screws (2) • Climate extension cable (not shown)

• AXXESS interface and wiring harness (not shown)

TOOLS REQUIRED

• Panel removal tool • Phillips screwdriver

• T-30 Torx driver

TABLE OF CONTENTS

Dash Disassembly ..................................................2

Kit Assembly

– ISO DIN radio provision with pocket .................3

– ISO DDIN radio provision ...................................4

AXXESS interface installation ...........................5-10

WIRING & ANTENNA CONNECTIONS

Wiring Harness: Included

Antenna Adapter: 40-EU55 (sold separately)

AXXESS steering wheel control interface

(sold separately)

Chrysler 300 2011-2014
