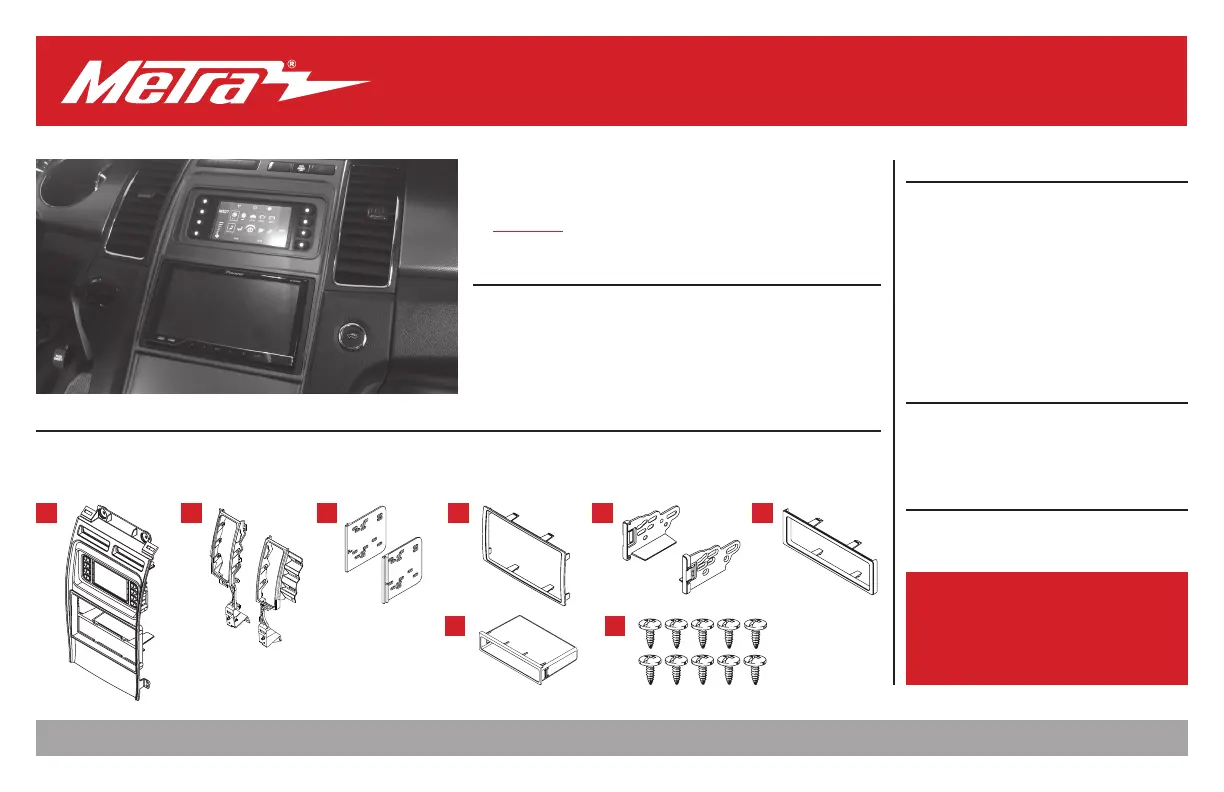

INSTALLATION INSTRUCTIONS
99-5722
The World’s best kits.
®
MetraOnline.com © COPYRIGHT 2020 METRA ELECTRONICS CORPORATION REV. 12/8/22 INST99-5722
Patent # 10,579,232
Attention! With the key out of the ignition,
disconnect the negative battery terminal
before installing this product. Ensure that all
installation connections are secure before
cycling the ignition to test this product.
KIT FEATURES
• DIN radio provision with pocket
• ISO DIN radio provision with pocket
• ISO DDIN radio provision
• Painted silver
• Touchscreen display for climate and personalization features
KIT COMPONENTS
• A) Radio trim panel with touchscreen display • B) A/C vent trim panels • C) ISO DDIN brackets • D) ISO DDIN trim plate • E) ISO DIN brackets
• F) ISO DIN trim plate • G) Pocket • H) (10) #8 x 3/8” Phillips screws
TOOLS REQUIRED
• Panel removal tool • Phillips screwdriver
• 9/32” socket wrench • Cutting tool
TABLE OF CONTENTS
Dash Disassembly ...............................................2-3
Kit Preparation .......................................................4
Kit Assembly
–DIN radio provision with pocket ........................5
–ISO DIN radio provision with pocket ..................6
–ISO DDIN radio provision .....................................7
Axxess Interface Installation ............................ 8-17
WIRING & ANTENNA CONNECTIONS
Wiring Harness: Axxess interface
and harness included
Antenna Adapter: Included with kit
A B C
G
D E F
Ford Taurus* 2010-2012
H
* Only for models with a key start
Visit MetraOnline.com for more detailed information about the product and up-to-date vehicle
specific applications
2
386.257.1187
|
MetraOnline.com
DASH DISASSEMBLY
1. Unclip and remove the (2) trim panels
on the left and right side of the center
console. (Figure A)
2. Unclip and remove the trim panel to the
right of the passenger a/c vent.
(Figure B)
3. Unclip and remove the knee bolster
panel below the steering column.
(Figure B)
4. Remove the (1) 9/32” screw from the
trim panel to the left of the steering
column which has the interior light
switch in it.
5. Unclip and remove the trim panel
between the steering column and the
key cylinder, and then remove the (1)
9/32” screw exposed. (Figure C)
6. Unclip and remove the gauge cluster
trim panel. (Figure D)
7. Unclip and remove the trim-panel/
speaker-grill above the radio/climate
control panel. (Figure D)
8. Remove the (4) 9/32” screws securing
the cup holder trim panel, and then
unclip and remove. (Figure E)
Continued on the next page
(Figure C)
(Figure D)
(Figure E)
(Figure B)
(Figure A)
