DVI over single CAT5e or CAT6

powerless Mini-Extender

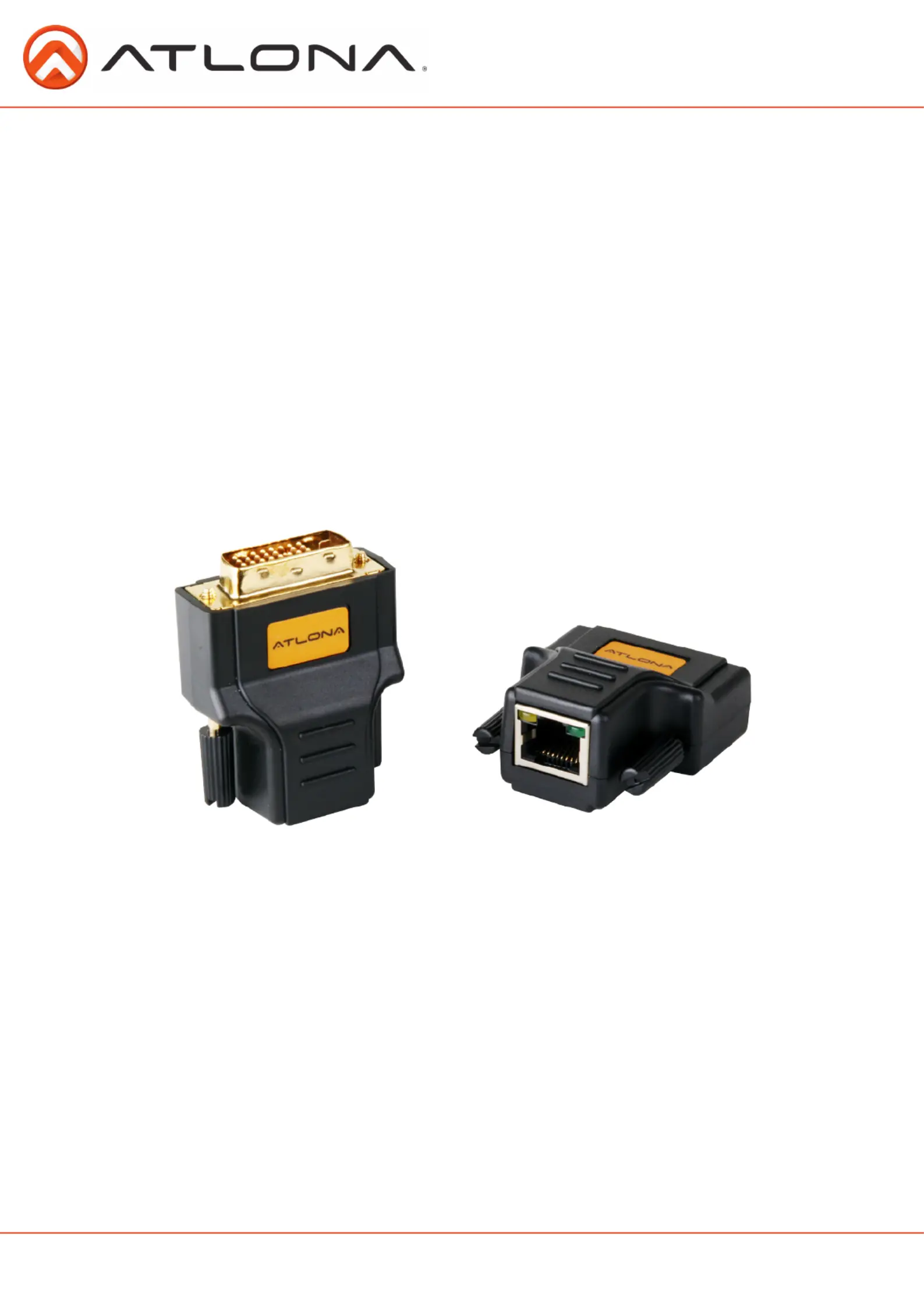

AT-DVI15SRS

User Manual

atlona.com

Toll free: 1-877-536-3976

Local: 1-408-962-0515

1. Introduction 2

2. Features 2

3. Package Contents 2

4. Specifications 2

5. Connection and Operation 3

6. Notice 3

7. Safety Information 4

8. Warranty 5

9. Atlona Product Registration 6

TABLE OF CONTENTS

atlona.com

Toll free: 1-877-536-3976

Local: 1-408-962-0515

Atlona AT-DVI15SRS extends your PC DVI transmission distance up to 30m/100ft . With AT-DVI15SRS, users

can transmit high quality digital video of PC applications through one cost effective CAT-5/5e to the remote

monitor or projector, instead of using short and expensive DVI cables. With embedded EDID inside the extend-

er, your PC will continue to send the digital video even when the monitor is not connected. The user can then

disconnects the monitor, place it in a remote location and reconnect it without rebooting the operating system.

Atlona AT-DVI15SRS includes two identical units: transmitting and receiving units. The transmitting unit is con-

nected to your PC DVI output and the receiving unit is connected to the monitor. While successfully connected,

the two LED lights on RJ-45 connector will blink. The transmission distance between the sending and receiving

units can be up to 30m/100ft at XGA (1024x768 @60Hz) or 15m/50ft at WUXGA (1920x1200@60Hz). With

compact size and requiring no power, AT-DVI15SRS is the most cost effective choice for bringing your impres-

sive digital video to the remote display.

• DVI 1.1 compliant

• Handy DVI-D to RJ-45 Adaptor with programmable EDID feature

• Extend the transmission distance from the sources up to 30m/100ft at XGA (1024x768 @60Hz) or15m/50ft

at WUXGA (1920x1200 @60Hz)

• Identical units work at both transmitting and receiving end. Easy to install.

• LED indicators

• Compact size

INTRODUCTION

FEATURES

Video Bandwidth 1.65 Gbps (DVI 1.1)

Input TMDS signal 1.2 volts (peak-to-peak)

Input DDC signal 5 volts (peak-to-peak)

DVI-D Connector digital only

RJ-45 Connector 2 indication LEDs

Dimensions 50mm x 40mm x 20mm / 2”x1.6”x0.8” (L x W x H)

Weight 44g / 1.6oz

SPECIFICATIONS

• 2x AT-DVI15SRS (for both TX: transmitting unit and RX: receiving unit)

• 1x User manual

PACKAGE CONTENT

atlona.com

Toll free: 1-877-536-3976

Local: 1-408-962-0515

Product specificaties

Merk:	Atlona
Categorie:	Niet gecategoriseerd
Model:	AT-DVI15SRS
Kleur van het product:	Zwart
Gewicht:	44 g
Breedte:	40 mm
Diepte:	50 mm
Hoogte:	20 mm
Gebruikershandleiding:	Ja
LED-indicatoren:	Ja
Maximum resolutie:	1920 x 1200 Pixels
Maximale refresh snelheid:	60 Hz
Duurzaamheidscertificaten:	RoHS
Aantal per verpakking:	2 stuk(s)
Ingangsspanning:	5 V
Overdrachtssnelheid:	1.65 Gbit/s
Aansluiting 1:	RJ-45
Aansluiting 2:	DVI
Aansluiting 1 type:	Mannelijk
Aansluiting 2 type:	Vrouwelijk
