Ne ge TechnologyA
Cutt edg capacitive sensor e
tech ology, compared to infrared sensor
Energy Saving
Low power us , mage econo ical eliablan rd e.
Battery life time - 3 years at 150 times/day.
Water Saving
Efficient water saving technology,
achieving a 6 Star WELS rating
Seamless Experience
Precise sensor accuracy for a seamless
user experience
Accuracy
5 level of sensitivitys for waterflow
accuracy and efficiency
Safety
Extra fail-safe protection ‘time out’ feature
Minimal Maintenance
Self-calibration to reduce system
maintenance and enhanc stabilitye

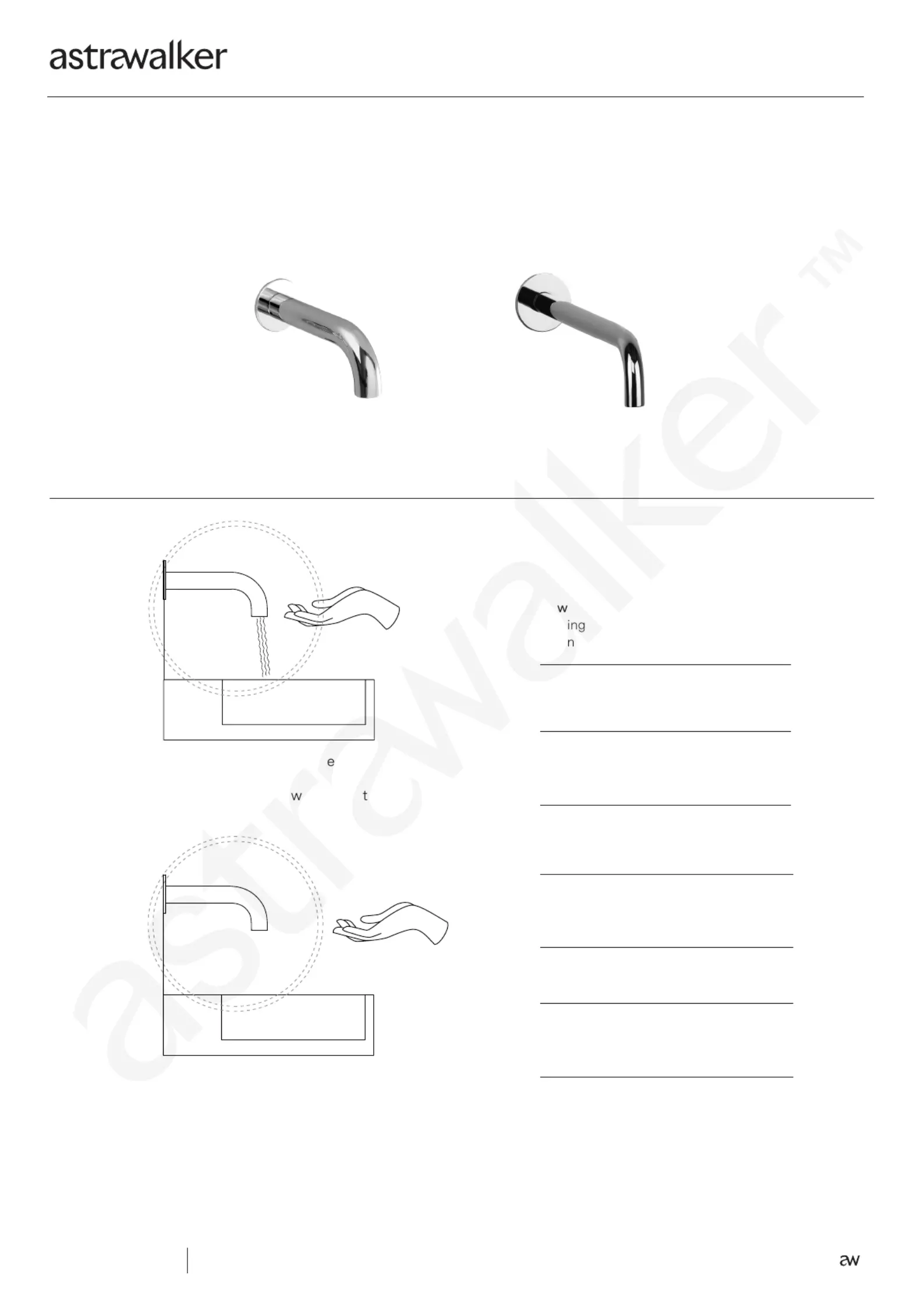

Astra Walker’s capacitive tap sensor is one of our latest and most highly anticipated collection releases. It
responds to the global demand of contactless hand hygiene, prioritising health and safety above all else
When hands come into clos proximity
to the tap, an increase in capacitance is
detected and water flo s automa ically.
When the hands are removed decrease a
is detected, turning off the water and
returning the tap to standby mode.
For more Sensor product information visit astrawalker.com.au
Uncompromising quality, Conceived, designed and made in Australia
ARCHITECTURAL BATHWARE
INSTALLATION
SENSOR
Uncompromising quality, Conceived, designed and made in Australia
ARCHITECTURAL BATHWARE
A80.03
A80.04
A80 04. .V2
A80 82. .05
A80.05
A80.06
A80.06.V2
INSTALLATION
SENSOR
• Tapware to be installed by a licenced plumber in accordance with AS/NZS 3500:2021
• Recommended working water pressure 150 - 500kPa
• Maximum water temperature is 65 deg C
• After completing the installation check function of tapware and ensure no water leaks.
SPOUT
The capacitive sensor tap works by detecting any increase in capacitance within a close proximity.
Capacitance is a physical property of the human body (or conductive element) which enables it to store
electrical energy and act as a natural capacitor.
When the user comes into close proximity to the tap, an increase in capacitance is detected and water will
flow. When the user leaves, a decrease is detected and the sensor will return to its normal standby mode.
The sensor tap is operated by a battery pack containing 6 AA lithium batteries for the power supply.
Ensure water lines are completely flushed prior to fitting to avoid damage to solenoid.

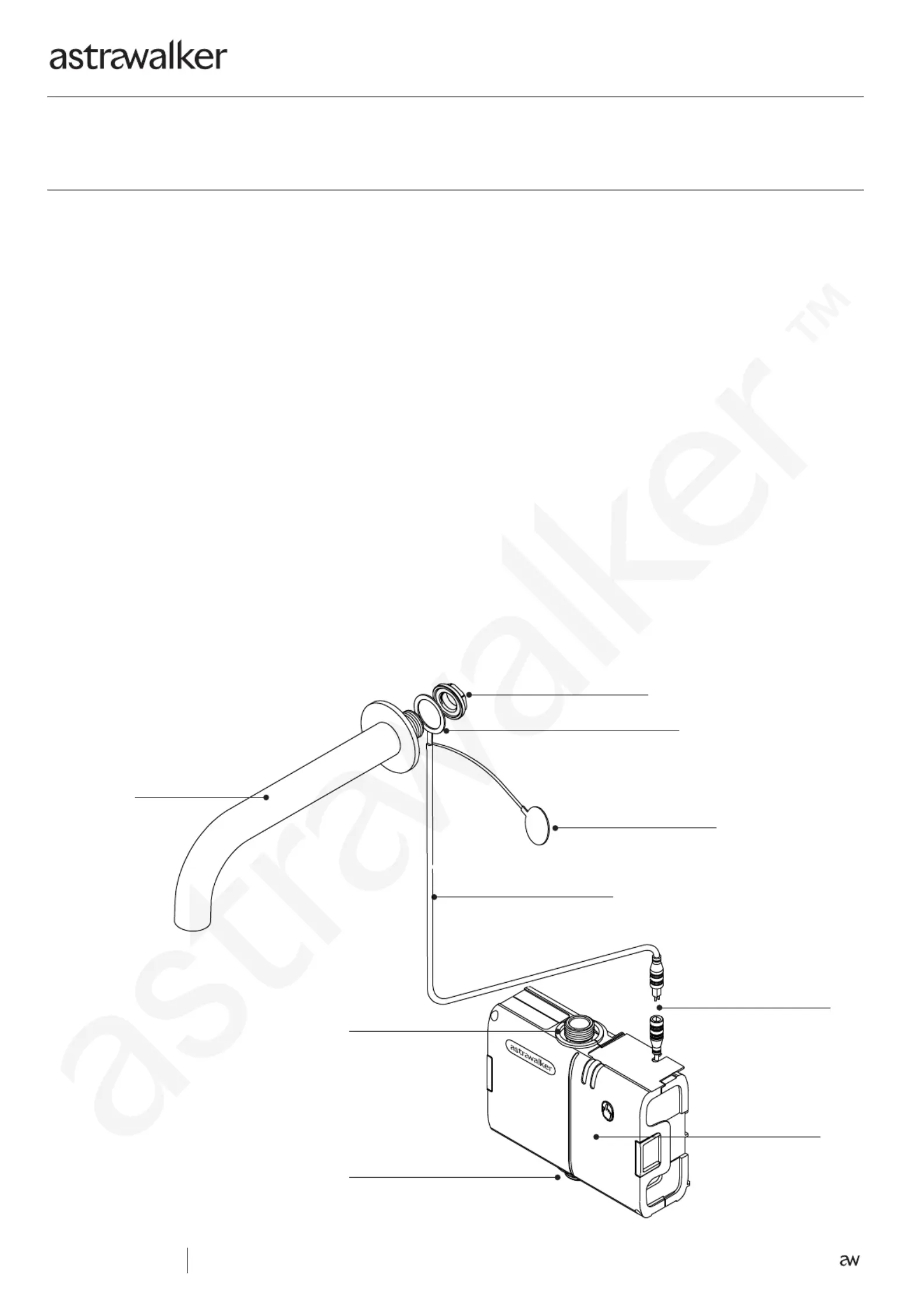

ELECTRODE WASHER
LOCKING NUT
SENSOR CABLE
SENSOR PAD
WATER OUTLET
WATER INLET
SENSOR CABLE
CONNECTION
CONTROL BOX
INSTALLA ION SUIT TO T:
WALL OUT WITH CA ACITIV NSO CHNOLO SP P E SE R TE GY
Uncompromising quality, Conceived, designed and made in Australia
ARCHITECTURAL BATHWARE
1) Determine the position of the tap mounting hole in the wall. Hole size required is Ø35mm with a maximum wall
thickness of 30mm.
2) All mounting surfaces must be non-metallic and non-conductive. NOTE: The plumbing fittings including sensor
box in-wall must not be within 250mm of conductive materials including steel framework and other copper
plumbing.
3) It is critical all components which require fixing behind the wall are easily accessible at all times during installation
and maintenance. An access panel must be constructed either below the wash basin or behind the mirror.
4) Tighten the electrode washer behind the wall against the lugged elbow, and tighten lock nut. The sensor clip
or ring must be in contact with the brass thread on the spout to ensure optimum detection.
5) Remove the double-sided tape under the Sensor PAD, then stick it on the wall behind outlet, as far away
from the outlet as possible. NOTE: ensure the Sensor PAD is left or right of the spout location, not in
alignment.
6) Check the sensor cable is securely connected to the electrode washer.
7) Feed the sensor cable through conduit in the wall. NOTE: The sensor cable must not have any loops or
shared cables in the same conduit.
8) Fit spout to thread in wall - avoid using teflon tape for optimum sensitivity.
INSTALLATION
SENSOR
NOTE: The box must be within 1m of the electrode washer behind the spout.
30 MAX
WALL THICKNESS
ACCESS PANEL

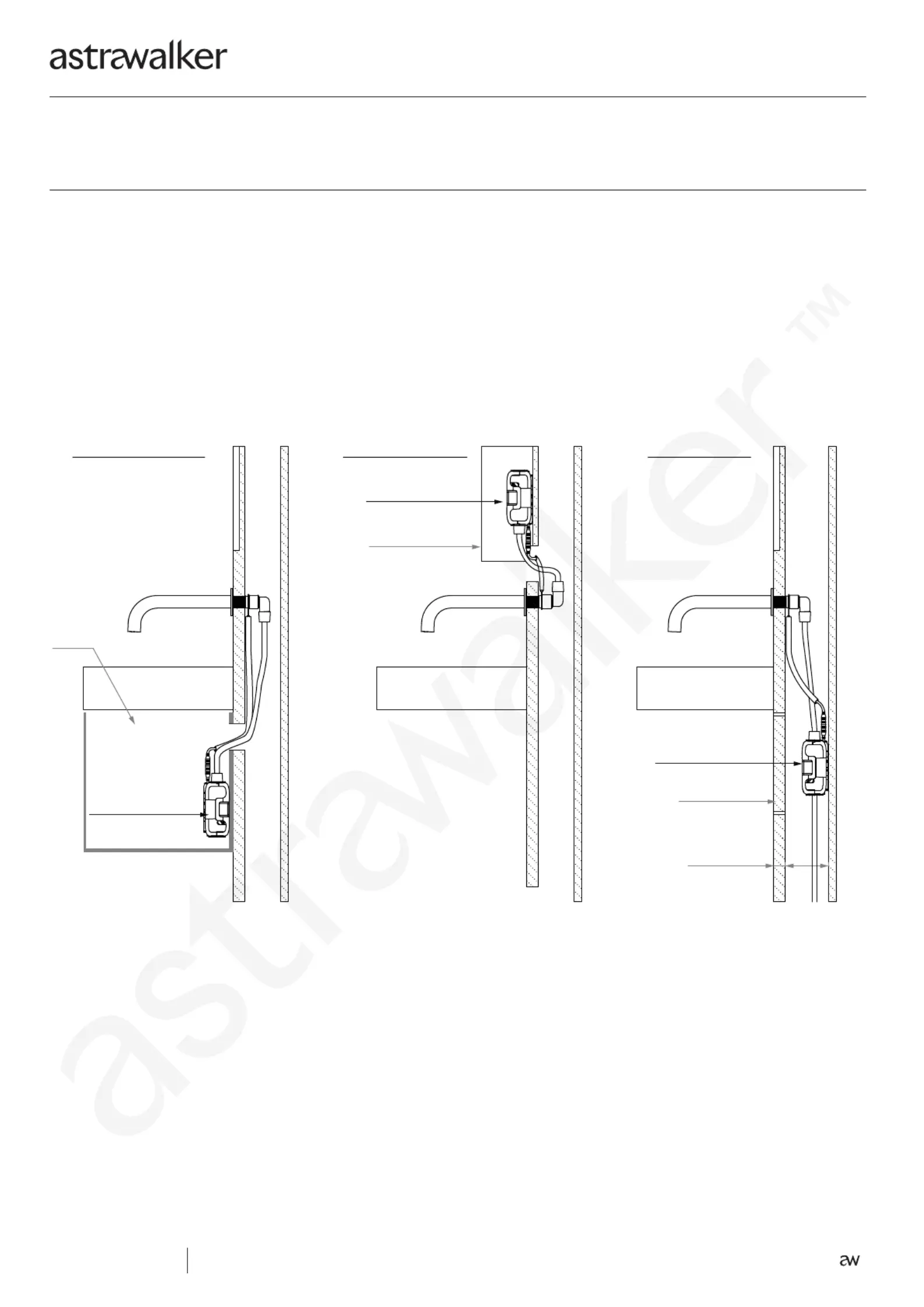

POSITION OPTION C:
BEHIND WALL
USING ACCESS PANEL
100 MIN
SERVICE VOID
POSITION OPTION A:
INSIDE CABINET
OUTTER WALL POSITIONING
INWALL POSITIONING
CABINET
INSIDE SHAVING CABINET
SHAVING CABINET
POSITION OPTION B:
BEHIND MIRROR
WALL OUT WITH CA ACITIV NSO CHNOLO SP P E SE R TE GY
