Pagina 1/2

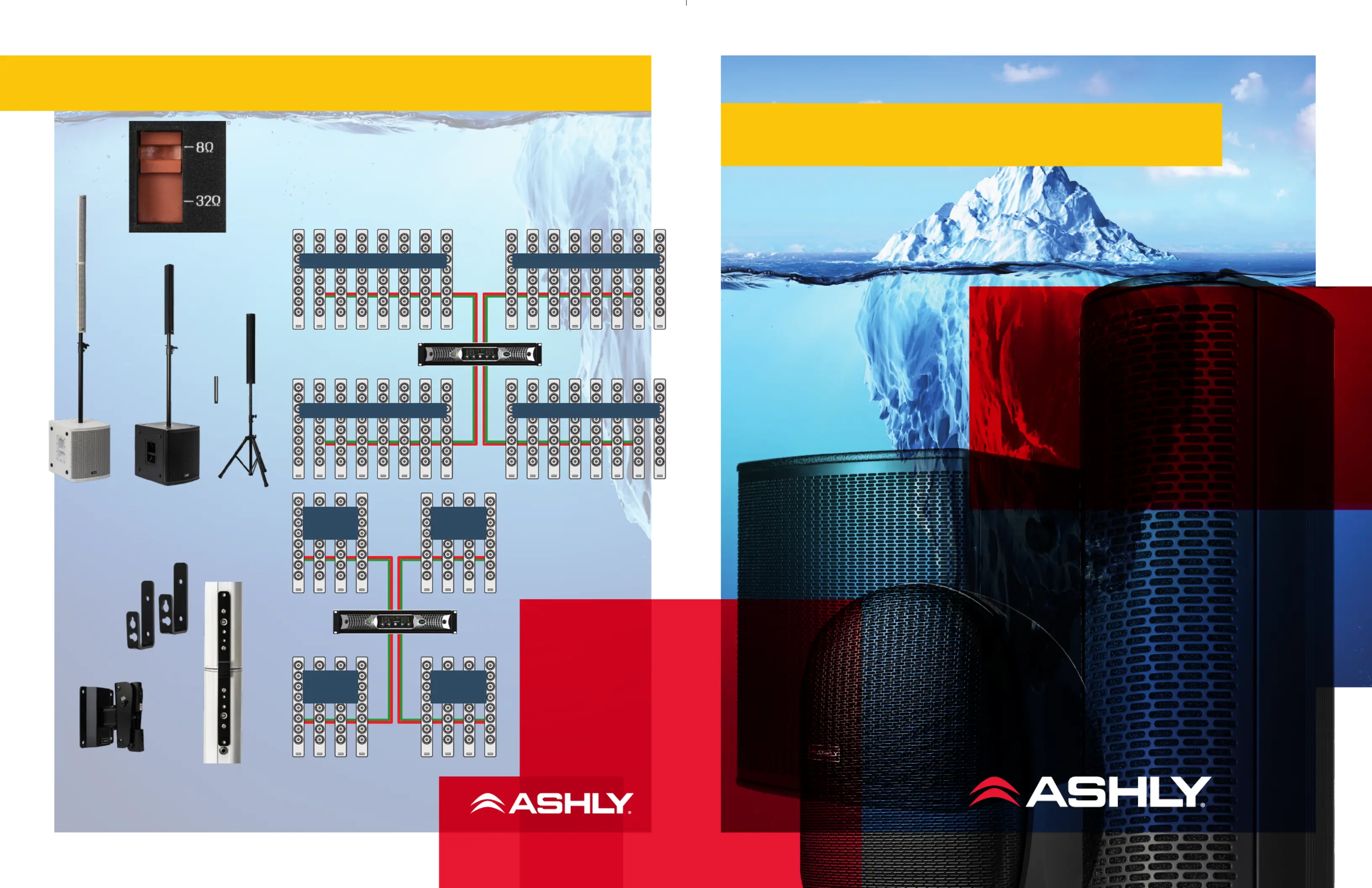

Speakers with the Ashly touch.
Ashly Audio Inc.
847 Holt Road
Webster, NY USA
US toll-free
+1.585.872.0010
Fax
+1.585.872.0739
Sales@Ashly.com
www.Ashly.com
*When used with a 4-channel amp operating at 4Ω. • ©2020 Ashly, All Rights Reserved. Ashly is a registered trademark of Ashly Audio, Inc.
All other trademarks and registered trademarks are the property of their respective holders.
IS Series Dual-Impedance Column Speakers
Y
ou may be thinking “
Does the
world need more speakers?
”
❚Yes, when Ashly speakers do things
others don’t. Hear us out.
❚And then hear how our AW on-wall
speakers, IS columns, and SP subwoofer
make beautiful music with our Protēa
and AquaControl
™
software.
SP 12.1PW
Subwoofer
Flush Mount
brackets
(included
with
IS 2.8Ps and
IS 3.8Ps)
IS-TWM
Tilt/Swivel
Mount for
IS 2.8Ps
and IS
3.8Ps
IS-JP2B Joining
Bracket shown on
two IS 2.8PWs
SP 12.1PB
Subwoofer
Thirty-two IS speakers
powered by one amp?*
IS Series column speak-
ers have another exclu-
sive feature: in normal
mode, they’re rated at
8 Ω…but change the
Impedance Switch to 32
Ω and suddenly you can
power a whole facility
with quality sound using
one amp. Add Protēa or
AquaControl™ DSP and
you have an unbeatable
combination at a very
modest price.
Two
IS 2.8PWs
with IS-JP2
Joining
Bracket
IS-PM6B
Pole Mount
IS-PM6B
Pole Mount
IS-TR7B
Tripod
Mount
IS-PM1B
Pole Mount
4 x 400 W @ 4 Ω
Ashly nXp 4004, 8004,
or ne4250 4-channel
amplifier with Protēa
Eight IS columns • 32Ω setting @ 50W each Eight IS columns • 32Ω setting @ 50W each
Eight IS columns • 32Ω setting @ 50W each Eight IS columns • 32Ω setting @ 50W each
Ashly nXp
or ne 4-channel
amplifier with
Protēa
4 x 250 W
@
8 Ω
Four IS columns
32Ω setting
@ 65.2W each
Four IS columns
32Ω setting
@ 62.5W each
Four IS columns
32Ω setting
@ 65.25W each
Four IS columns
32Ω setting
@ 65.2W each
*with DOC crossover and DSP presets for selected Ashly amps and processors.
All specifications are subject to change.
AW Series On-Wall Speakers
IS Series Dual-Ω Column Speakers + SP Subwoofer
AW 8.2T
AW 5.2P
IS 3.8PW
IS 2.8PIS 2.8PW IS 3.8P
AW 2.1P
Tilt Swivel
Bracket
included
AW 3.2T
IS and AW speakers will please
you with their performance and
price. But spec one of the Ashly
amps below and you get:
Only optimized linear
frequency response
and universal crossover
implementation is available on
ne24.24m (not shown).
Protēa & AquaControl DSP: Our speakers’ secret sauce.™
Ashly 2-way speaker with DOC* crossover and DSPTypical 2-way loudspeaker
Off-axis Response ± 30˚ AW Series Off-axis Response ± 30˚
Our AW series speakers are
perfect for restaurant patios,
balconies, and many other
under-eave
applications, as
well as indoors.
They deliver robust
bass, crisp treble and
accurate midrange that
makes them easily heard over table conversation, traffic
or wind noise. Impressive on their own, their sound can be
further enhanced with Ashly power amplifiers and proces-
sors that incorporate Protēa or AquaControl™ software (see
elow). Visit our web site to download
ec Sheets, A&E Specs, and dxf files.
100 1k 10k
100
90
80
70
60
So ressure, Lev el [dB ]und p
20 50 200 500 2k 5k 20k
95
85
75
65
100 1k 10k
100
90
80
70
60
So ressure, Lev el [dB]und p
20 50 200 500 2k 5k 20k
95
85
75
65
20 dB
20 dB
9 B9 dB
❚Directivity-weighted, optimized
linear frequency response
❚Universal crossover
implementation for use with
subwoofer and full- range
speakers
❚FIR-corrected linear phase
response above about ~300 Hz
AW 2.1P AW 3.2P AW 5.2T
AW 8.2T
15 W @8 Ω 45 W @ 8 Ω 80 W @ 8 Ω 100 W @ 8 Ω
8 Ω 8 Ω
8 Ω or con-
stant voltage
8 Ω or constant
voltage
response
170-19 kHz
(-10 dB)*
100 Hz to
19 kHz (-10 dB)*
80 Hz to
19 kHz (-10 dB)*
65 Hz to
19 kHz (-10 dB)*
Transducer
2.75" full
range
1.1" PEI HF
3.5" LF
0.75" silk
dome HF
5.25" LF
1" silk dome HF
8" LF
IS column speakers are a
cost-effective way to provide
vertical pattern control, and
consistent sound levels front-
to-back of a venue… especially
when combined
with Ashly amps and
processors that
incorporate
Protēa or
AquaControl™
software (see
below).
They fit perfectly
next to flat-
screens in
conference
rooms. Combined
with an SP 8.1P
or SP 12.1P sub,
you can create an
effective "system
on a stick"
for churches,
wedding
receptions and
corporate events.
Two IS speakers can be joined
with an optional bracket. Pole
and tripod mounts are also
available. Visit our web site to
download Spec Sheets, A&E
Specs, dxf and EASE files.
*
Directivity Optimized Crossover (DOC) passive
crossover available on 2-way AW models only
IS
2.8P
IS
3.8P
SP
8.1P
SP
12.1P
Power
Handling
120 W @8 Ω
240 W @
8 Ω
150 W @ 8 Ω 350 W @ 8 Ω
Impedance
8 Ω / 32 Ω 8 Ω / 32 Ω 8 Ω 8 Ω
Frequency
response
115 Hz to
20 kHz
105 Hz to
19 kHz
43 Hz to
180 Hz
39 Hz to
180 Hz
Transducers
8 x
2.0" full
range
transducers
with
neodymium
magnet
8 x
3.0" full
range
transducers
with
neodymium
magnet
8" LF
transducer
ferrite
magnet
12” LF
transduce
ferrite
magnet
pēma series Protêa-enabled amps
ne4250pe and ne8250pe network-
enabled amplifiers with Protêa
mXa-1502 mix amp with AquaControl
ne series processors with Protēa
nXp series multi-mode with Protêa
