Input DIgItal MIxer

DIGIMIX18

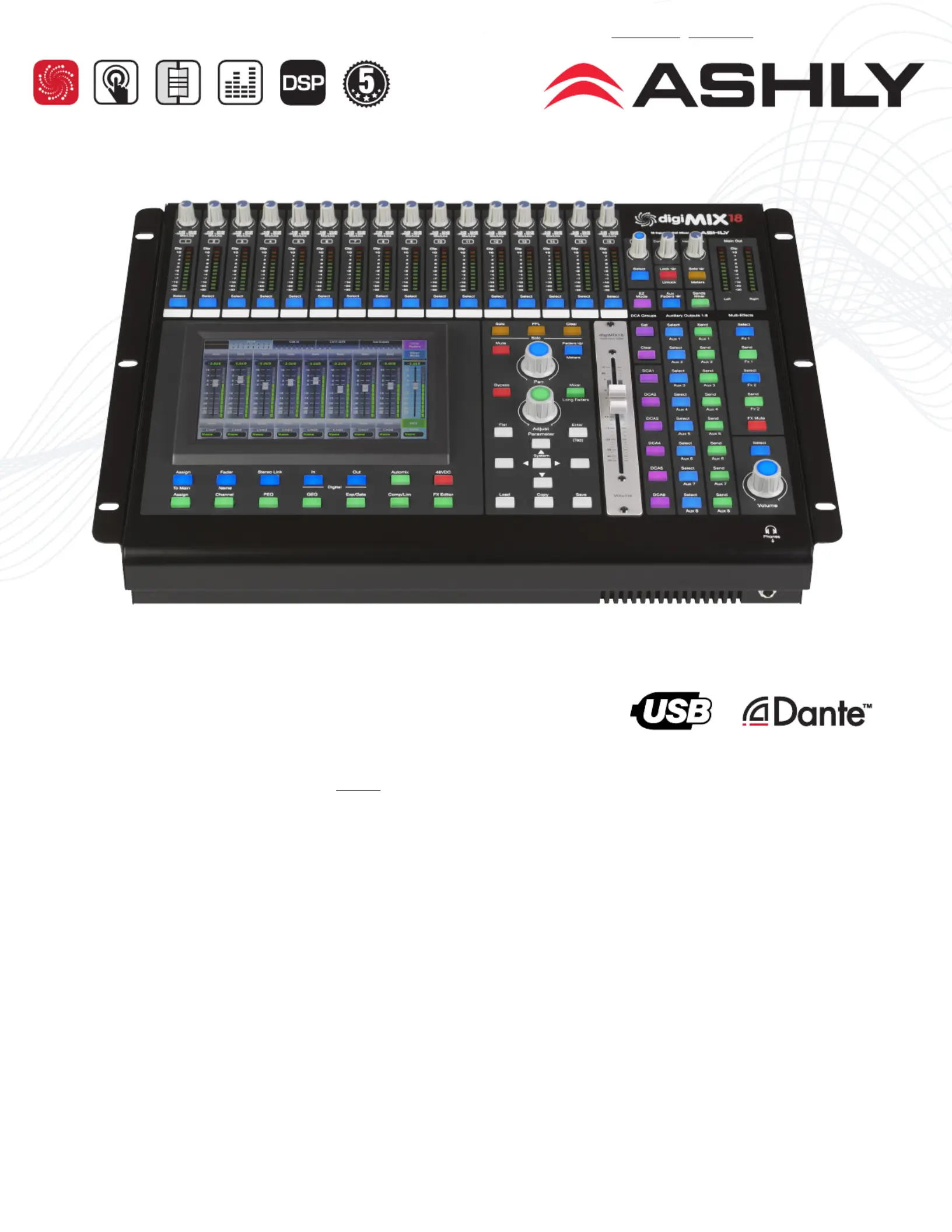

The digiMIX18 is a digital mixing soluon that maintains

all key features of the digiMIX24 in a more compact,

rack-mountable model. The digiMIX18 gives you 18

inputs and 12 output buses (18x12) and maintains the

same powerful real-me live control that give users

instant access to all major funcons. You have the ex-

ibility to accommodate instruments, voices and signals

from various sources. Also equipped with Class-A mic

pre's designed exclusively by Ashly, so you know great

sound is always a standard feature!

With its tradional analog feel, the Live Control Surface

allows opmum control with real knobs and a live fader

when selecng important funcons, while oering con-

veniences of a responsive touchscreen, USB interfacing,

and companion Apple iPad® App. Together, it's the ideal

mixing experience.

Modular expandability via oponal Dante® and USB

cards which provide 18 digital inputs and up to 30 digital

outputs. Selectable Digital Audio Channel-Insert points

allow you to record, process in nave mode, and/or

playback from your favorite DAW using our USB-3018

opon card. Useful for capturing or enhancing your live

performance.

Features:

• Precision Alps® motorized 100mm fader

• Responsive, 7" color LCD touchscreen for graphical

viewing, assign, and setup

• FREE iPad® App for wireless remote control

• EZ-Mode for secure, simplied touchscreen or

iPad® control with EZ-Mode mixer

• Ships as desktop console, rack rails included

• 16 low noise microphone preamps with dedicated

trim controls, +48V phantom power, phase invert

• Gain-sharing automixer

• Assignable cross fader

• Stereo AUX sends for stereo monitors

• 2 dedicated line-level inputs

• TRS inserts on channels 1-8

• 8 AUX sends, 6 DCA for fader or mute groups

• 2 internal stereo FX with fully editable reverbs,

delay with tap tempo, tremolo, ange, and chorus

• Pan control

• High resoluon delay (0.2mS) on every input, AUX,

or FX

• Expander/noise gate on every input and FX channel

• Comp/limiter on every input, output, and FX channel

• 4-band parametric/shelving EQ lters plus HPF/LPF

on every input, output, and FX channel

• 31-band Graphic EQ on main and AUX outputs

• Stereo link for adjacent inputs and AUX outputs

• Solo/PFL on every input, output, AUX, or FX

• Stereo main outputs on XLR and phone jack with

dedicated level control

• Headphone and control room outputs with dedicated

level controls

• User presets for Scene, DSP channel, FX or GEQ

sengs, plus channel copy funcon

• 24-bit A/D and D/A converters, 32-bit DSP processing,

48kHz sampling rate

• Password security

• Soware control using Windows®, Mac®, or iPad®

• Internal 100-240VAC universal power supply

• Dante® Network Audio Interface (oponal)

• USB Mul-track Audio Interface (oponal)

• Safety/compliance: cTUVus, FCC, RoHS

DS-0118

Environmental

Temperature Range

Operang, free-air 41°F 113°F (5°C 45°C) – –

Storage -4°F – 140°F (-20°C – 60°C)

Power Requirements

AC Mains 100-240VAC 50/60Hz, 120W MAX

Soware, Firmware and Drivers

iPad® Control

Ashly digiMIX app for Apple iPad®, FREE from

iTunes® App store

Firmware Update

digiMIX18 Firmware Ulity for Windows®

and Mac® (download from Ashly.com)

Preset Backup and

Restore

digiMIX18 Preset Ulity for Windows®

and Mac® (download from Ashly.com)

USB COM

Device driver

May be required when using digiMIX18 ulies

via USB connecon. (Separate Windows and Mac

versions available on Ashly.com.)

USB ASIO

Device Driver

Required for USB-3018 opon when using

Windows® audio program (download from

Ashly.com, not required for Mac)

Digital IN/OUT

Digital In, Channels 1-18

Pre-DSP On/O, level control +10dB to -70dB, O

Digital Out, Channel 1-16

Selectable as group

pre/post DSP

On/O, level control +10dB to -70dB, O

Digital Out, Channel 17-18, Main, AUX 1-8, Solo

Post-DSP On/O, level control +10dB to -70dB, O

Mixer Features

Automixer

(speech only)

Gain-sharing type, individual assignment of

channels 1-16

Crossfade mode

(system screen)

Use pan control to fade between any two

assigned inputs, outputs, or FX

Stereo Link

Inputs 1-16, aux outputs 1-8, paired only as 1-2,

3-4, 5-6 etc.

DCA groups 6 groups, level, mute, solo

Password Security

Mixer lock, unlock, 4-character password, case

sensive

Preset Types Scene (24), DSP channel (48), FX (104), GEQ (48)

EZ-Mode Simplied individual fader adjust, ON/OFF, Icon assign

EZ Mixer #1 Main, DCA 1-4, AUX 1-4, password lock

EZ Mixer #2

Main, DCA 1-6, AUX 1-8, Ch 17-18, password

lock

Weights and Dimensions

digiMIX18 Console

Unit Dimensions 19.3"L x 5.65"W x 14.0"H (486 x 144 x 356 mm)

Shipping Dimensions 22.0"L x 8.15"W x 17.1"H (559 x 207 x 434 mm)

Unit Weight 17.0 lbs (7.7kg)

Shipping Weight 21.0 lbs (9.5kg)

Dante-3018 Opon Card

Shipping Dimensions 6.02" L x 1.85" W x 7.09" H (153 x 47 x 180 mm)

Shipping Weight 0.42 lbs (0.19kg)

USB-3018 Opon Card

Shipping Dimensions 6.02" L x 1.85" W x 7.09" H (153 x 47 x 180 mm)

Shipping Weight 0.47 lbs (0.21kg)

Rear Panel Conguraon

Specicaons Notes: 0dBu = 0.775 VRMS

Microphone Input Class-A Discrete Balanced, 7.3k Ohm Input Impedance

Frequency Response

to Main Output

20Hz – 20kHz, +0.0/-0.5dB

Distoron (THD&N)

to Main Output

<0.01% at 0dBu, 20Hz – 20kHz

Equivalent Input Noise

-126dBu, unweighted, 20Hz – 20kHz,

150 Ohm source

Gain (Trim) 0 dB – +50dB

Maximum Input Level +20dBu, balanced

Phantom Power

+48VDC, 14mA per channel, assignable to

channels 1-16

Line Input Balanced, 75k Ohm Input Impedance

Frequency Response

to Main Output

20Hz – 20kHz at 0dBu, +0.0/-1.5dB

Distoron (THD&N)

to Main Output

<0.01% at 0dBu, 20Hz – 20kHz

Gain (Trim) -20dB – +30dB

Maximum Input Level +20dBu

TRS Insert (Ch 1-8 only) Unbalanced, Tip = Send, Ring = Return

Maximum Output Level +20dBu, 120 Ohm Source Impedance

Maximum Input Level +20dBu, 5.0k Ohm Input Impedance

Stereo Line Inputs (Ch 17–18) Balanced 27k Ohm Input Impedance

Frequency Response

to Main Output

20Hz – 20kHz, +0.0/-0.05dB

Distoron (THD&N)

to Main Output

<0.07% at 0dBu, 20Hz – 20kHz

Gain

∞ to +10dB

Input Level (Max) +20dBu

Maximum Output Levels (240 Ohm source impedance)

Main Outputs (Max) Balanced XLR and TRS phone jack, +20dBu

AUX 1–8 Outputs Pseudo-Balanced TRS phone jack, +20dBu

Control Room Outputs Balanced TRS phone jack, +20dBu

Residual Output Noise

-88dBu (one mic input assigned at 0dB)

-78dBu (all 16 mic inputs assigned at 0dB)

-78dBu (all 18 inputs assigned at 0dB)

Crosstalk

Adjacent Channels (1kHz) -82dB

Noise

-70dB (Bus Noise, Adjacent Channels

20Hz – 20kHz)

Channel DSP Funcons

Polarity Invert

(Inputs, main, AUX, FX)

Per channel, On/O

Delay Time

(Inputs, main, AUX, FX)

Per channel, 0-300ms in 0.2 ms increments

Noise Gate / Expander Inputs, FX

Threshold Range -84dB – 0dBFS

Aack me 0.5mS – 200mS

Release me 10mS – 1,000mS

Rao 1:1 to ∞

Compressor/Limiter Inputs, Main, AUX, FX

Threshold Range -50dB – 0dBFS

Aack me 10mS – 150mS

Release me 10mS – 1,000mS

Rao 1:1 to ∞

Gain 0dB – +24dB

Parametric EQ (PEQ) Inputs, Main, AUX, FX

Filter Type

(EQ1, EQ2, EQ3, EQ4)

Parametric, low shelf, high shelf

Parametric Filters 20.6Hz – 20kHz, Q 0.4 – 24, boost/cut ±24dB

Shelving Filters 20.6Hz – 20kHz, boost/cut ±24dB

HPF and LPF 20.6Hz – 20kHz, 20 lter type

HPF and LPF Filter Types

Bypass, Buerworth (BW) 6dB/oct,

Bessel (BS) 6dB/oct, BW 12dB/oct,

BS 12dB/oct, Linkowitz/Riley (LR) 12dB/oct,

BW 18dB/oct, BS 18dB/oct, BW 24dB/oct,

BS 24dB/oct, LR 24dB/oct, BW 30dB/oct,

BS 30dB/oct, BW 36dB/oct, BS 36dB/oct,

LR 36dB/oct, BW 42dB/oct, BS 42dB/oct,

BW 48dB/oct, BS 48dB/oct, LR 48dB/oct

Graphic EQ (GEQ) Main, AUX

Filter Type 31-band, Constant Q, boost/cut ±24dB

FX FX input Sends from Ch 1-18, FX output Assigns to main L/R, AUX 1-8

Eect Types

Reverbs (3), delay (1200ms), tremolo,

ange, chorus, combinaons (See manual)

DSP Processing

A-D converter dynamic

range

104dB, unweighted

Internal processor 32-bit oang point

D-A converter dynamic

range

105dB, unweighted

ADC/DAC bit depth and

sampling rate

24-bit / 48kHz

Latency 5.8mS, 1kHz, Analog input to analog output

Digital Audio Opon Cards

Sold Separately, Field Installable

Dante-3018 Mul-Channel Network Audio Interface (24 bit / 48 kHz)

USB-3018 Mul-Channel Audio Interface (24 bit / 48 kHz)
