Overview

Sometimes oor monitors are a problem. There isn’t enough room

for them onstage or someone sits in and can’t hear the monitors or

the drummer can’t hear them well enough. Or perhaps it’s a pick-up

gig or a rehearsal and you didn’t have enough time to set them up.

In any case, sometimes it would be preferable just to put on head-

phones and somehow connect them to the PA. That’s where the

HeadTAP comes in.

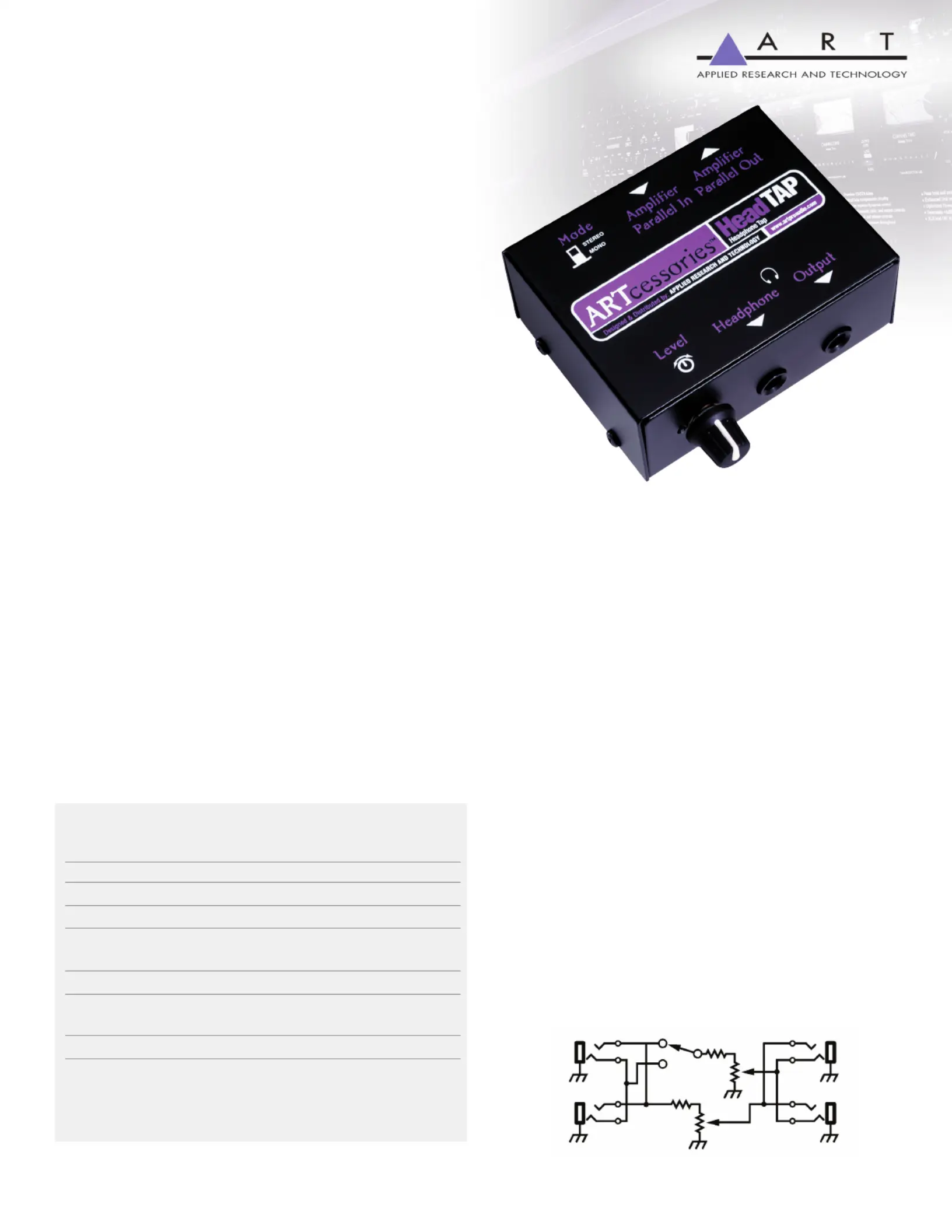

The HeadTAP is a passive device with an input to connect the PA

or monitor amplier and an output to connect the headphones. A

volume control regulates the headphone level and internal resistors

keep the unit’s impedance high enough to protect the headphones.

It also protects the amplier from encountering too low a load im-

pedance while powering tap units, the speaker system or several tap

units by themselves. A good tap will also work with a stereo head-

phone amplier for use in recording situations when you want to

add headphones for additional performers.

Features

l

Provides quick and convenient tapping facilities to permit

powering headphones directly from an amplier

l

Dual parallel 1/4-inch stereo/mono input jacks permit

daisy-chaining taps and/or speakers

l

Stereo/mono input selector button

l

Dual 1/4-inch stereo/mono headphone jacks

with Level Control

l

Passive device (requires no batteries or power adapter)

Specications

Input Impedance 100 Ω

Power Amp Loop Paralleled 1/4” stereo TRS jacks

Max Power Input 20 - 50W max

Output 2 x 1/4” stereo/mono headphone jacks

Controls Headphone Level

Mono/Stereo Switch

Active or Passive Passive

Dimensions 1.7″H x 3.7″W x 2.8″D

43mm x 93mm x 70mm

Weight 1.0 lb (4.6 kg)

ART maintains a policy of constant product improvement. ART reserves the right to

make changes in design, or make additions to, or improvements upon, this product

without any obligation to install same on products previously manufactured.

Therefore, specications are subject to change without notice.

artproaudio.com

Head

Head

Head

HeadHeadTAP

Headphone Tap

Usage

a.) If the power source is mono (i.e. one channel of a PA power

amp or mixer/amp), connect a speaker cable either from the amp

or a spare jack on a speaker to the input jack on the HeadTAP.

Now set the pushbutton to Mono (down).

b.) If the power source is a stereo headphone amplier or the

headphone output on a mixer, plug a stereo or balanced 1/4” to

1/4” patch cord directly into the headphone output. Connect the

other end of the cable to the HeadTAP’s Input jack and set the

pushbutton for Stereo (out).

c.) Connect headphones to either of the Headphone Output jacks

on the HeadTAP or both of them if you are connecting two

headphone sets.

d.) Adjust the Volume control as desired. Remember to also turn

up the volume of the amp, mixer, headphone amp, etc., so that

there will be sucient power to drive the HeadTAP(s).

e.) To add another HeadTAP to the circuit, simply run a stereo or

mono (depending on the usage) 1/4” to 1/4” patch cable from the

Parallel Output jack on the HeadTAP to the Input jack on the next

HeadTAP. Multiple HeadTAP’s and headphones can be intercon-

nected this way.
