Arecont Vision MegaBall™ Installation Manual
0 | Page
Arecont Vision MegaBall™ Installation Manual
1 | Page
MegaBall™ Wall Mount Version (-W) Installation Manual

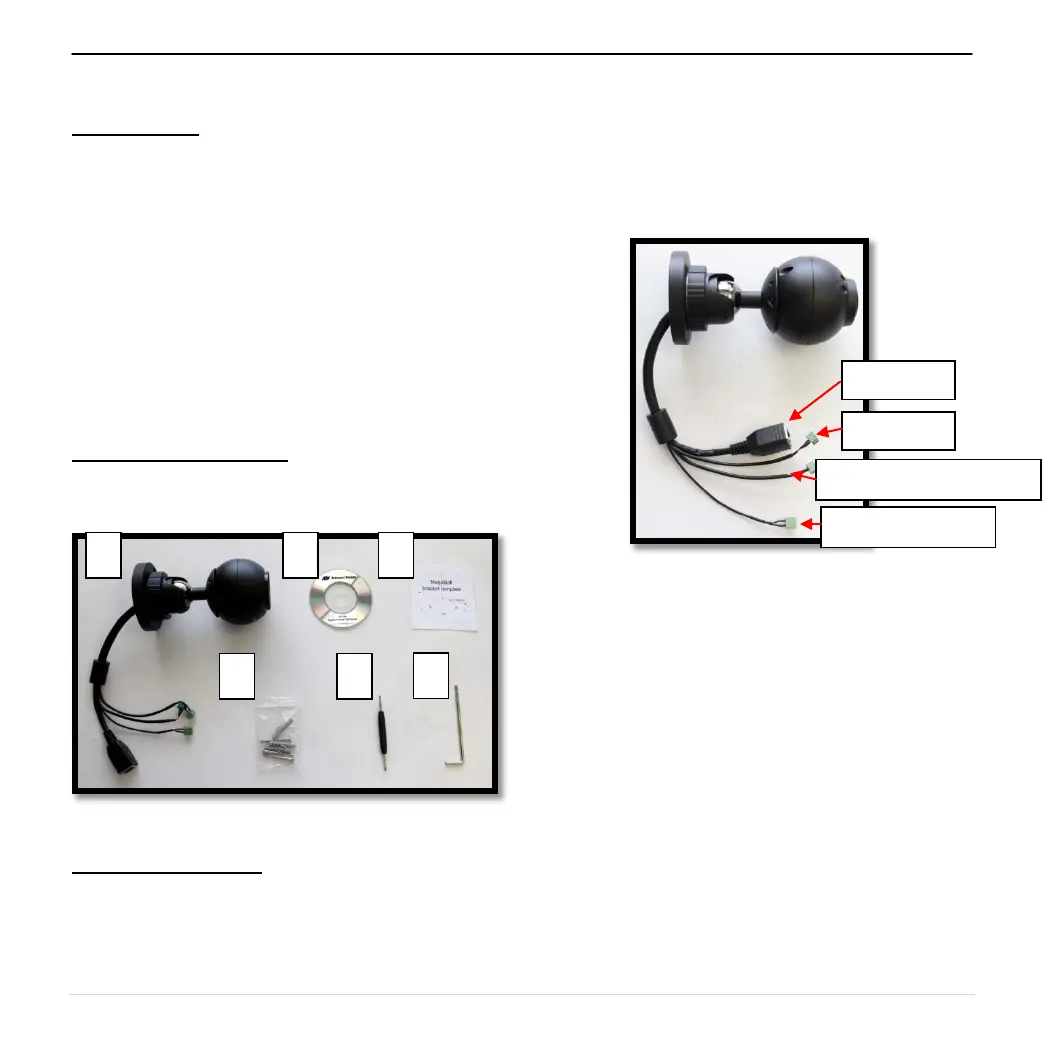

A. Arecont Vision MegaBall™ camera with
wall mount (indoor use only)
Inside the box:
B. CD with AV100 software and user
manuals (license key required for
recording)
C. Mounting template
D. Pack of three (3) wood screws and three
(3) dry wall anchors
E. One double-sided hex key (fixed focal lens
version only)
F. Security L-Key
• #1 Phillips head screwdriver
Not included but needed:
Image 1
Mounting the Camera:
1. Remove the camera and hardware from the
box.
2. Using the mounting template, prepare the
mounting surface for camera installation.
3. Plug the Ethernet cable into the MegaBall™
PoE female RJ45 connector. (Image 2)
NOTE: If the camera will be powered via PoE,
please skip to step 5.
Image 2
4. If the camera will be powered by an AC 24V
or DC 12-48V power supply, connect external
power with pigtail cable connector.
NOTE 1: Ensure that the polarity of the DC
input on the camera matches the way that the
wires are installed in the connector shown in
Image 2.
NOTE 2: AC power does not have polarity.
5. Align the holes on the camera wall mount with
the prepared holes on the mounting surface.
Attach the camera to the mounting surface
with the wood screws or any other hardware
suitable for the mounting surface.
F
E
C
A
D
B
Digital In
Alarm Out or Audio Out
Auxiliary Power
PoE RJ45
