Pagina 1/28

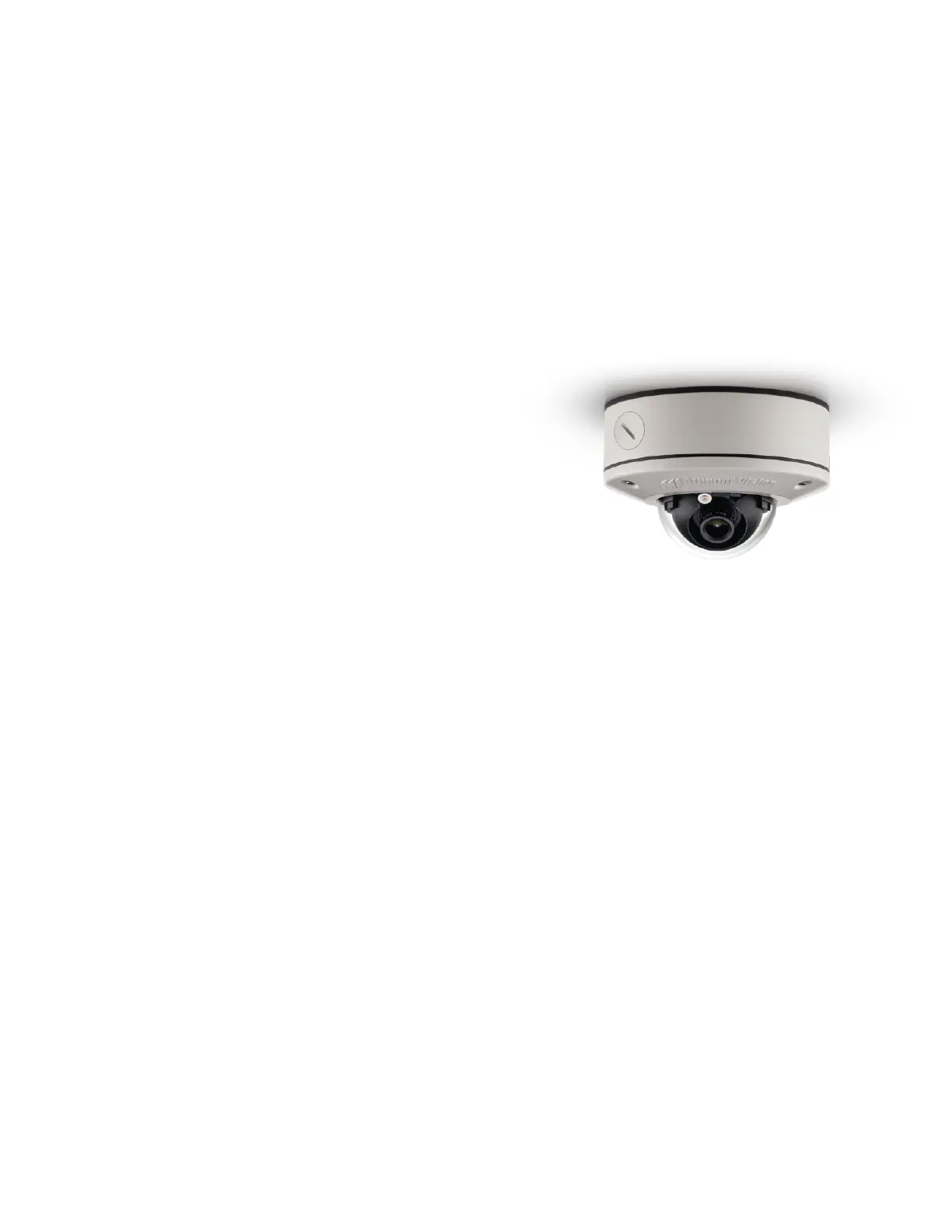

MicroDome®!G 2

-S Model Installation Manual!

Models:

1.2 Megapixel

• AV1555DN-S

• AV1555DN-S-NL

1080p

• AV2555DN-S

• AV2556DN-S

• AV2555DN-S-NL

• AV2556DN-S-NL

3 Megapixel

• AV3555DN-S

• AV3556DN-S

• AV3555DN-S-NL

• AV3556DN-S-NL

5 Megapixel

• AV5555DN-S

• AV555DN-S-NL

!! ! Installation!Manual!

Page | 2 support@arecontvision.com

+1.818.937.0700 877.CAMERA.8 www.arecontvision.com avsales@arecontvision.com

MicroDome®!G2

Contents

Package Contents!..................................................................................................................................................!3!

Camera Overview!...................................................................................................................................................!5!

Surface Mount (-S Model) Installation!.................................................................................................................!6!

Changing the Lens!...............................................................................................................................................!12!

Optional: Removing the Bubble!..........................................................................................................................!13!

Optional: Connecting Digital I/O!.........................................................................................................................!14!

Camera Discovery, Setup, and Configuration!..................................................................................................!18!

Network Protocols!................................................................................................................................................!18!

General Remote Focus!.......................................................................................................................................!19!

Refined Remote Focus!........................................................................................................................................!20!

AV IP Utility Focus Tab!........................................................................................................................................!22!

Wall Mount Accessory (MCD-WMT)!..................................................................................................................!23!

Pendant Mount Accessory (MCD-CMT)!................................................................................................ ...........!24!

Mounting Template: MicroDome

G2 Camera!.................................................................................................!25!

Mount Template: MicroDome

MCD-WMT Wall Mount!..................................................................................!26!

Mount Template: MicroDome

MCD-CMT Pendant Mount!...........................................................................!27!

Support!..................................................................................................................................................................!28!

Product specificaties

Merk:	Arecont Vision
Categorie:	Bewakingscamera
Model:	AV3555DN-S-NL
Kleur van het product:	Wit
Soort:	IP-beveiligingscamera
Gebruikershandleiding:	Ja
Bluetooth:	Nee
Vormfactor:	Dome
Ondersteuning voor plaatsing:	Binnen & buiten
Connectiviteitstechnologie:	Bedraad
Ethernet LAN:	Ja
Montagewijze:	Plafond/muur
Maximum resolutie:	1920 x 1080 Pixels
Totaal aantal megapixels:	3 MP
Type stroombron:	Power over Ethernet (PoE)
Minimale belichting:	- Lux
Aantal cameras:	1
Ingebouwde HDD:	Nee
Type beeldsensor:	WDR
Netwerkstandaard:	IEEE 802.1x
Maximaal 30 frames per seconde:	21 fps
Ondersteunde netwerkprotocollen:	IPv6, QoS, DHCP
Dag/nacht modus:	Ja
Aantal sensoren:	1
Wide Dynamic Range (WDR):	Ja
Wifi:	Nee
AC-ingangsspanning:	24 V
