cuplex kryos NEXT RGBpx 12/2020

cuplex kryos NEXT

cuplex kryos NEXTcuplex kryos NEXT

cuplex kryos NEXT

Operating and assembly manual

Operating and assembly manualOperating and assembly manual

Operating and assembly manual

1. Preparation

1. Preparation1. Preparation

1. Preparation

Back up your data before modifying your hardware! Disconnect your PC from the mains power

outlet. To prevent damaging the sensitive hardware components, make sure to ground your

workplace and yourself to prevent electrostatic discharges.

When upgrading an existing PC setup, remove the installed heat sink from the CPU. Refer to the

instruction manual of the CPU cooler for details. Remove thermal grease residues from the CPU

surface using benzine if necessary.

Place a small drop (diameter ca. 4 mm or 0.15 inch) of thermal grease supplied with the cuplex

kryos NEXT centrally on the CPU. Alternatively, you can apply a thin layer of the thermal grease

using the supplied plastic spatula.

2.1. Instructions for Socket 2066, 2011-3,

2.1. Instructions for Socket 2066, 2011-3,2.1. Instructions for Socket 2066, 2011-3,

2.1. Instructions for Socket 2066, 2011-3,

2011, AM4, TR4, sTRX4

2011, AM4, TR4, sTRX42011, AM4, TR4, sTRX4

2011, AM4, TR4, sTRX4

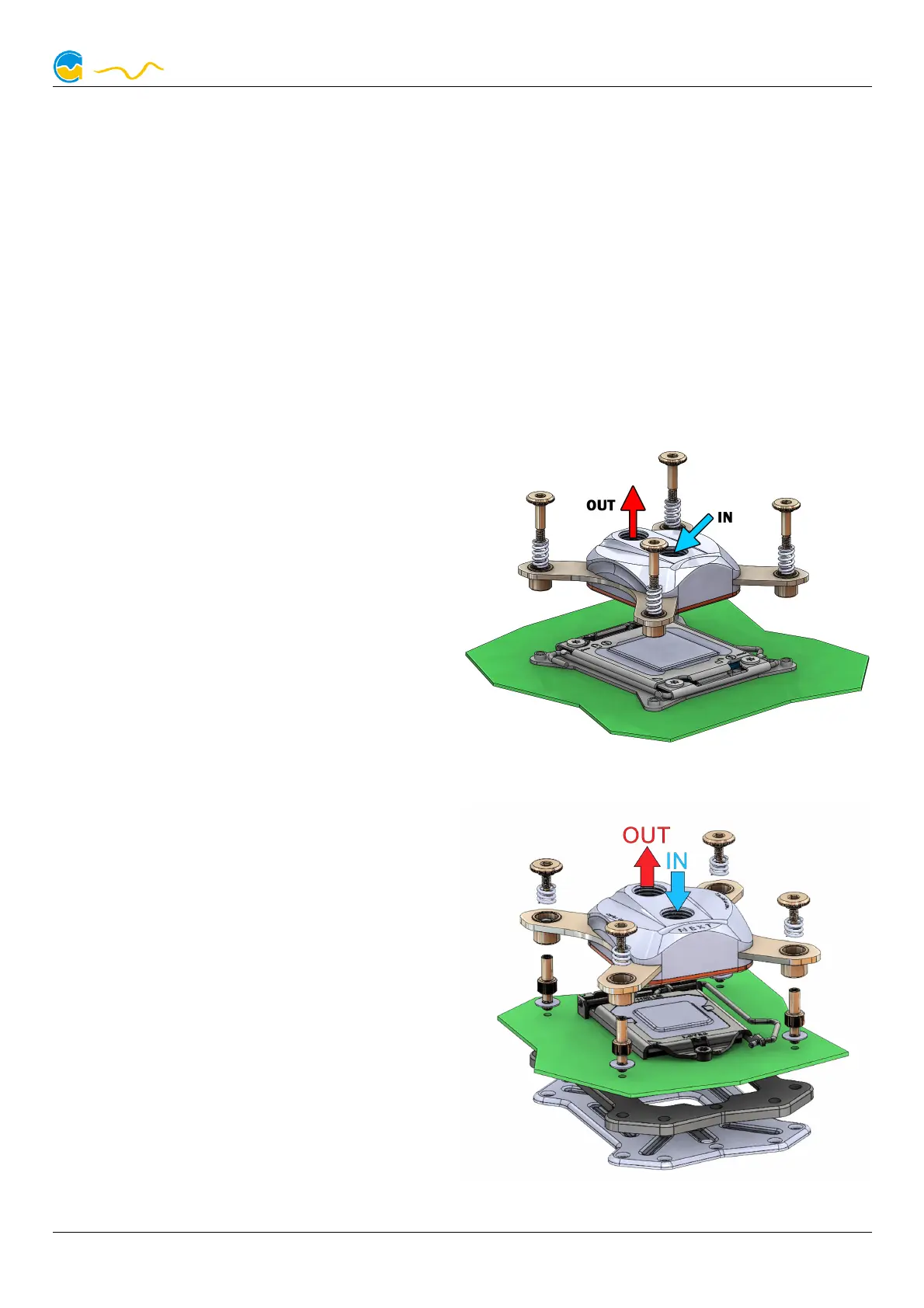

Place the cuplex kryos NEXT on top of the ther-

mal grease covered CPU, observing the orien-

tation as shown in the picture. Place on spring

into each recess and insert a knurled screw

through each spring into the anchor threads of

the CPU socket (only one or two revolutions).

Alternately fasten each screw a fraction of a

revolution until all four screws are fully fas-

tened.

2.2. Instructions for Socket 1150, 1151, 1155, 1156, 1200

2.2. Instructions for Socket 1150, 1151, 1155, 1156, 12002.2. Instructions for Socket 1150, 1151, 1155, 1156, 1200

2.2. Instructions for Socket 1150, 1151, 1155, 1156, 1200

Arrange back plate and black insulation mat

below the processor socket as shown in the pic-

ture. Slide one plastic washer onto the outer

thread of each retention bolt and screw the

bolts through the four mounting holes of the

motherboard into the back plate. For easy in-

stallation, the retention bolts can be screwed in

by hand or with a hexagon socket wrench.

Place the cuplex kryos NEXT on top of the ther-

mal grease covered CPU, observing the orien-

tation as shown in the picture. Slide one of the

four supplied springs onto each bolt and secure

each spring using one of the knurled head

screws (only one or two revolutions). Alternately

fasten each screw a fraction of a revolution un-

til all four screws are fully fastened.
