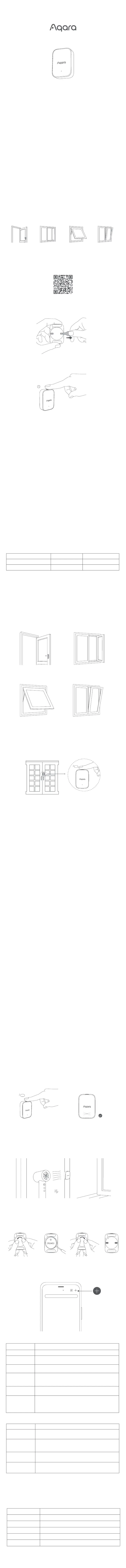

Automation Configuration

Open the "Automation" interface in the Aqara Home APP, tap the "+" in the upper right corner to add

device-related automations.

*The radio transmission equipment model approval code for this product is printed on the product body

Multi-State Sensor P100

User Manual

Product Introduction

The Multi-State Sensor P100 is a comprehensive device which enhances a nine-axis sensor with AI

algorithms. It is suitable for various applications such as door and window opening/closing detection,

valuable item protection, daily event recording, notifying its’ user of appliance status changes.

Through advanced sensing technology and Aqara AI algorithms, it can be attached to common types of

doors and windows to detect their opening/closing status and real-time status updates. Compared to

traditional dual-body magnetic door and window sensors, it can be flexibly attached to any position on

the surface of doors and windows, making installation more convenient. It can also detect composite

windows, detecting both outward opening and tilting ventilation states.

In Zigbee mode, it supports switching to "Object Status Monitoring" mode, suitable for special event

and status perception of stationary items. It can be attached to everyday stationary objects to detect

events such as vibration, movement, falling, opening/closing, tilting, and triple tapping. It can

determine vertical/horizontal posture and vibration/static state, meeting various daily use scenarios,

such as: knowing when mail is delivered through mailbox hinge tilt, determining drawer opening time

and recording frequency through drawer movement, recording and providing delayed reminders for

taking medicine/feeding through the tilting or movement of medicine boxes/milk powder cans, etc.

Note:

* When joining the Matter ecosystem, this device needs to be used with a hub/gateway that supports

the Matter protocol.

* When joining the Aqara ecosystem, this device needs to be used with the Aqara Home App and Aqara

hub. The "Item Protection" mode is only supported in Zigbee protocol mode and in Aqara Home.

"Door and Window Monitoring" mode determines the open/close status through changes in rotation

angle, suitable for doors and windows that rotate on horizontal or vertical axes. It is not suitable for

detecting sliding doors, sliding windows, roller shutters, 360-degree revolving doors, drawers, etc. To

detect such devices, it is recommended to switch to "Object Status Monitoring Mode", which can

indirectly determine status and events by detecting movement, vibration, and flipping.

DWZTCGQ11LM, VB-S03E, VB-S03D

Zigbee, Thread, Bluetooth

CR2450, 3V DC

-10°C ~ 55°C (14°F ~ 131°F)

0-95% RH, non-condensing

64 × 64 × 29.5 mm (2.52 × 2.52 × 1.16 in.)

Product Model

Wireless protocol

Battery model

Operating temperature

Operating humidity

Product Dimensions

Product Specifications

1. Download the Aqara Home App

Please scan the following QR code to download the latest version of the Aqara Home App

Pairing the Device

"Door and Window Monitoring" mode

Function Description:

In door and window monitoring mode, the device can detect angle changes using a nine-axis sensor

(three-axis accelerometer, three-axis gyroscope, three-axis geomagnetic sensor), and determine if the

door/window is opening or closing. It is suitable for doors or windows that are fixed on horizontal or

vertical axes and rotate around a pivot axis, typically including the following types of doors and windows:

（）1Swing door: A door fixed on a vertical axis that can rotate horizontally to open and close

（）2Casement window: A window fixed on a vertical axis that can rotate horizontally to open and close

（）3Awning window: A window fixed on a horizontal axis that can rotate vertically to open and close

（）4Combination window: A window fixed on a vertical axis that can rotate horizontally to open, and

when closed, can tilt on a horizontal axis for ventilation

Device Installation and Calibration

2. Enter pairing mode

For new devices, please pull out the battery insulation strip. Aer the device is powered on, it will

automatically enter the network pairing mode, and the LED indicator will start slowly flashing blue. At

this time, you can discover and add the device through the APP's add device page.

3. Add Device

You can add devices to the network using the following three methods:

(1) Join Aqara Home through Matter

Open the Aqara Home App, enter the "Home" page and click the "+" in the upper right corner to enter

the "Add Device" page. Click on the corresponding device, select the Matter hub you want to connect

to, choose "Thread Protocol" on the "Device Protocol" selection interface, then follow the prompts to

scan the Matter QR code on the device body to complete the addition.

(2) Join third-party platforms through Matter

To join through a third-party Matter ecosystem, you can initiate the "Add Device" process in the

third-party app, and complete the device addition by scanning the Matter Code on the device itself or in

the manual.

(3) Join Aqara Home via Zigbee protocol

Open the Aqara Home App, enter the "Home" page and click the "+" in the upper right corner to enter

the "Add Device" page. Click on the corresponding device, select the hub you want to connect to,

choose "Zigbee Protocol" on the "Device Protocol" selection interface. The device will start

downloading firmware, and aer the firmware is downloaded, it will automatically complete the

protocol switch and finish adding the device.

4. Firmware Upgrade

To ensure the best user experience, aer the device has been added, please update the device

firmware to the latest version in the settings page of the Aqara Home APP before starting to use it.

Tips:

If joining a third-party platform that doesn't support the latest firmware through Matter, you can add

the device in the Aqara Home APP. During the addition process, perform a "protocol switch" to obtain

the latest firmware via Bluetooth transmission from your phone. This process does not require an

Aqara hub.

Installation methods:

1. Please peel off the adhesive backing of the device and vertically attach it to the surface of the door or

window that needs to be monitored for opening and closing.

There are no strict requirements for the installation position on doors and windows. It can be installed

near the rotating axis, in the middle of the door/window, or on the opening side of the door/window.

*If a smart lock is installed on the door, please avoid installing it near the lock to prevent the current

from the motor operation affecting the device's sensor.

"Object Status Monitoring" mode

Function Description:

In Object Status Monitoring mode, the device detects movement and vibration to monitor the status of

stationary objects, providing alerts for events such as changes in position or unusual activity.

Detectable events and postures include:

（）1Vibration: Detects vibration events, suitable for monitoring slight vibrations of everyday stationary

items and tracking the duration of continuous stillness of the device.

（）2Movement: Detects movement events, suitable for scenarios such as item the prevention and

drawer detection, can trigger alarm notifications or automations in conjunction with other devices.

（）3Falling: Detects falling events, suitable for protecting valuable items and monitoring the safety of

elderly and children, triggers alarm notifications in conjunction with other devices.

（）4Tap three times: Detects triple tap events, suitable for attaching to stationary surfaces such as

desktops, triggers automation in conjunction with other devices.

（）5Posture: Detects horizontal, vertical, and tilted postures of the device, which can trigger

automation through related posture linkage.

To achieve longer device battery life and reduce power consumption caused by unnecessary event

reporting, please select the events that need to be monitored according to your actual needs during the

configuration process.

Installation methods:

1. Peel off the adhesive backing of the device and attach it vertically or horizontally to the surface of the

item that needs to be monitored.

2To detect the posture of an object, please attach the device to the surface of the object in the desired .

horizontal or vertical orientation, then click the button on top of the device 3 times to complete the

device posture calibration. The device indicator will flash quickly and then stay on for 2 seconds to

indicate that the calibration is complete. The device will calibrate the current posture as the standard

horizontal or vertical posture.

3The device's default sensitivity is set to medium. For first-time use, please conduct a performance .

test. If you find frequent event reporting or false triggers, you can adjust the sensitivity to different

levels through the app.

4. During use, if the posture has shied or been affected by magnetic fields, it may cause an abnormal

display of open/close status. Please follow the steps in step 2 to recalibrate the device.

Device Calibration Method

During use, if the posture has shied or been affected by magnetic fields, it may cause abnormal

display of open/close status. When the device is stationary, please keep the device vertical or horizontal

according to the use scenario, with the door/window closed (in Door and Window Monitoring mode),

and calibrate the device by clicking the device button three times.

Device Removal and Adhesive Removal

Aer installing the device, if you need to change the installation location or remove it to replace the

battery, please carefully peel off the adhesive backing on the device and remove it from the

door/window or object.

To maintain the device's stable connection on various surfaces, the adhesive backing is quite strong. To

avoid damaging the surface, it is recommended to use a heat gun to gently blow warm air towards the

adhesive area from one side, then slowly and firmly peel off the adhesive backing

Replacing the battery

Press firmly on the battery cover on the back of the device and rotate it counterclockwise. Then, turn the

device upside down and tap it forcefully to separate the battery cover from the main body of the device.

Pry the old battery out of the battery compartment. Install the new battery according to the indicated

positive and negative directions. Align the battery cover with the position indicated on its back, and

rotate it clockwise to secure the battery cover.

Device Reset

If the device is reset, it only resets the network and enters the re-pairing state without deleting local data.

Ensure the device is powered on, press and hold the device reset button for 5 seconds, and release the

button when the light flashes quickly. The device will reset and enter the Bluetooth broadcasting stage.

Factory Reset

Factory reset means resetting the network while deleting all local and cloud data. Ensure the device is

powered on, quickly press the device reset button 10 times, and the device will enter the factory reset state.

2. Aer installation, please click the button on top of the device 3 times when the door/window is

completely closed to complete the device posture calibration. The device indicator will flash quickly

and then stay on for 2 seconds to indicate that the calibration is complete.

3The device's default sensitivity is set to medium. For first-time use, please conduct a performance .

test. If you find that the Door and Window Monitoring status detection is inaccurate, or if frequent false

triggers occur, you can adjust the sensitivity to different levels through the app to achieve proper

adaptation.

4. During use, if the posture has shied or been affected by magnetic fields, it may cause an incorrect

display of open/close status. Please follow the steps in step 2 to recalibrate the device.

5. Zigbee/Thread Protocol Switching

If you need to switch to a different protocol aer adding the device to the network, first remove the

device in the Aqara Home app, then long press the device's reset button for 5 seconds to reset the

device. Enter the pairing process, and on the device pairing screen, select "Switch Protocol" and select

the desired protocol. Follow the instructions in the app to complete the setup.

Note: Switching protocols is equivalent to a factory reset, which will clear all settings and data on the

device.

Mode Function Differences

If the network pairing window has passed, you can press and hold the reset button for 5 seconds until

the LED indicator starts flashing, then release it. The device will enter the network pairing mode again,

and the LED indicator will start slowly flashing blue.

Swing doorCasement windowAwning windowCombination window

5S

Function

Door and Window Monitoring mode

Object Status Monitoring Mode

Supported

Supported

Supported

/

Zigbee protocolThread Protocol

Indicator Light Instructions

Indicator Light Status

Blue light flashes

Blue light flashes

quickly 3 times

Click the device and the blue light will flash quickly once

Aer powering on, restarting, or factory reset, this indicates that the

power supply is normal

Device Status

Blue breathing

Blue light continuously

flashes quickly

This indicates that the device is in broadcast mode. Aer 10 minutes, the

broadcast ends, the light turns off, and the device enters deep sleep mode.

Blue light stays on for

1 second

Indicates successful addition

Blue light flashes

quickly 9 times, then

stays on for 2s before

turning off

This indicates that the device posture calibration is successful.

When resetting the device, the blue light flashes rapidly until the button is

released within 3 seconds. During the pairing phase, the blue light

continuously flashes quickly, indicating successful pairing

Reset Button Instructions

Button Actions

Click the reset button

Press and hold the

reset button for more

than 5 seconds

Check the Zigbee hub connection and verify the effective range of the hub.

(Only triggered when binding to a Zigbee hub)

Resets the device and enters pairing mode

Description

Quickly press the

reset button 10 times

Triple-click the button

Factory Reset

Triple-click the button, and the device will calibrate based on its current

posture. It is recommended to calibrate when the door/window is closed

and the device is in a horizontal/vertical position.

X3

X3

Casement window

Awning window:Combination window

Swing door

Create Automatio

AutomationScene

Precautions:

1.The "Door and Window Monitoring Mode" determines the open/close status through the built-in

geomagnetic sensor detecting rotation angles, suitable for doors and windows that rotate on a

horizontal or vertical axes. It is not suitable for detecting sliding doors, sliding windows, roller shutters,

360-degree revolving doors, drawers, etc. To detect such devices, it is recommended to switch to

"Object Status Monitoring Mode", which can indirectly determine status and events by detecting

movement, vibration, and flipping. ("Object Status Monitoring Mode" is only supported by Zigbee

protocol)

2.Based on the sensor detection principle, electric current and magnetic fields can affect detection

accuracy. When installing, please be careful to avoid the influence of motors and magnetic fields.

Please avoid installing near microwave ovens, curtain motors, or smart door locks.

3.The device normally remains in a low-power sleep state and is awakened by vibration to activate its

sensors for detection. Frequent vibrations will cause the device to be activated repeatedly, reducing

battery life. Therefore, the device is suitable for installation on fixed and stationary doors, windows,

and object surfaces in daily use. Please avoid installing it on surfaces that vibrate frequently.

4.The "Object Status Monitoring" mode is not suitable for installation on frequently vibrating

appliances such as washing machines, dryers, etc., or for detecting their continuous vibration state. It

cannot be used in application scenarios where vibration is used to detect when appliances stop

operating.

5.In "Object Status Monitoring" mode, to achieve longer device battery life and reduce power

consumption caused by unnecessary event reporting, please select the events that need to be

monitored according to the actual needs of your scenario during the configuration process.

6.During use, if you need to change the installation location, the device's posture has unexpectedly

shied, or it has been affected by changes in the surrounding magnetic field, please click the reset

button 3 times when the device is stationary and the installed door/window is completely closed to

recalibrate the device's posture and ensure detection accuracy.

7.To avoid the long-term effects of high temperature and direct sunlight on the adhesive's stickiness,

please avoid installing on glass or metal surfaces exposed to direct sunlight.

8.The device is installed using adhesive. For safety, please ensure that the device’s height does not

exceed 2 meters.

Product specificaties
