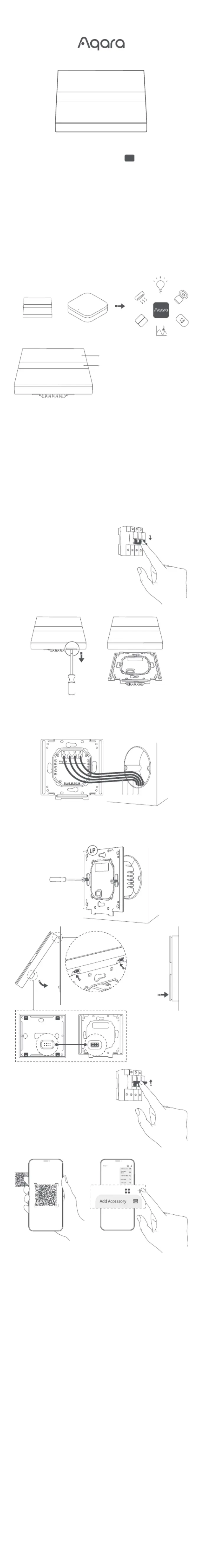

Aqara Display Switch V1 Handleiding

Bekijk gratis de handleiding van Aqara Display Switch V1 (1 pagina’s), behorend tot de categorie Controller. Deze gids werd als nuttig beoordeeld door 18 mensen en kreeg gemiddeld 4.4 sterren uit 3 reviews. Heb je een vraag over Aqara Display Switch V1 of wil je andere gebruikers van dit product iets vragen? Stel een vraag

Aqara Home App

+

Hub

LED

OFF

ON

Max 8 A (Resistive Load)

Poduc Name

XXXXXXXXXXXXXXXXXXXXXX

XXXXXXXXXXXXXXXXXXXXXX

XXXXXXXXXXXXXXXXXXXXXX

XXXXXXXXXXXXXXXXXX

L1L2L

N

Screen

Button

Double-click quickly and then long-press for 5 seconds

to restore factory settings

Quick press 3 times: Confirm that the hub is within

acceptable distance

Note: For the Four-button version, only the two buttons on the le are relays. The other buttons are

wireless switches,and need to be configured on the App.

Manufacturer: Lumi United Technology Co., Ltd.

Address: Room 801-804, Building 1, Chongwen Park, Nanshan iPark, No. 3370,

Liuxian Avenue, Fuguang Community, Taoyuan Residential District, Nanshan District,

Shenzhen, China.

Online Customer Service: [http://www.aqara.com/support](http://www.aqara.com/-

support)

Email: support@aqara.com

A smart 2-channel with-neutral wall switch with four configurable buttons, which

provides different themes, icons, or texts to clearly showcase the function of each

button, so users can easily identify and control the corresponding light or appliance

without guessing. With power monitoring and Matter over Bridge support, it expands

energy-efficiency but also accessibility for users.

Effective distance verification: Quickly short press any button on the switch 3 times, and

the hub will emit a prompt tone, indicating that the device and the hub can communicate

effectively.

*This product requires a Zigbee3.0 hub to function.

*If adding fails, please move the hub closer to the product and try again aer powering on.

Product Introduction

1. Please add a hub to the App according to the hub’s manual;

2. Open the App, click "+" in the upper right corner of the homepage, enter the "Add

Device (Accessory)" page, and select Display Switch V1 EU, and follow the instructions;

Display Switch V1 EU

Model: WS-K02D

Dimensions: 86*86*42.2 mm (3.39 × 3.39 × 1.66 in.)

Operating Temperature: -10°C ~ 40°C (14°F ~ 104°F)

Wireless Protocols: Zigbee, Bluetooth

Operating Humidity: 0 ~ 95% RH, no condensation

Electrical Rating: 200 - 240 VAC, 50/60 Hz, Max 8 A (Resistive Load), µ

What is in the Box: Display Switch V1 EU × 1, User Manual × 1, Compliance Statement × 1,

Screw Kit × 2

If you have any other questions about this product, you can find more product

information on the following website:

https://store-support.aqara.com/products/display-switch-v1-eu/

Quick Setup

Product Specifications

FAQ

1. The installation of this product involves strong electric currents, and must be installed

by professionals in accordance with electrical specifications and product instructions;

2. This product is for indoor use only. Do not use it in a humid environment or outdoors.

3. Avoid excessive moisture. Do not spill water or other liquids on this product.

4. Do not place this product near heat sources;

5. Do not attempt to repair this product by yourself. Repairs should be performed by

authorized professionals.

6. Do not scratch the display screen with sharp objects.

Warnings

1.Before installation, please ensure that

the main power switch is switched off

at the circuit breaker.

3. Use the screwdriver to loosen the terminal screws on the back of the switch. Connect

the live wire to the L terminal. connect the neutral wire to N terminal ,and connect the

load (light) wire to the L1 and L2 terminal, and aer confirming that the wiring is

correct, tighten the terminal screws. Maximum load is 8 Amps (Resistive Load)

4. Use the included screws to secure the switch to the wall junction box and snap on the

panel. Ensure you follow the panel's snap-on installation instructions carefully.

5.Turn on the main power switch and press

the le button(wired to load) to turn on

the lights, if the lights operate normally,

the switch is working properly.

Installation Methods

2. Use a Phillips head screwdriver to pry open the switch panel;

Display Switch V1

EN

*Do not exceed 0.7N·m of screw torque.
