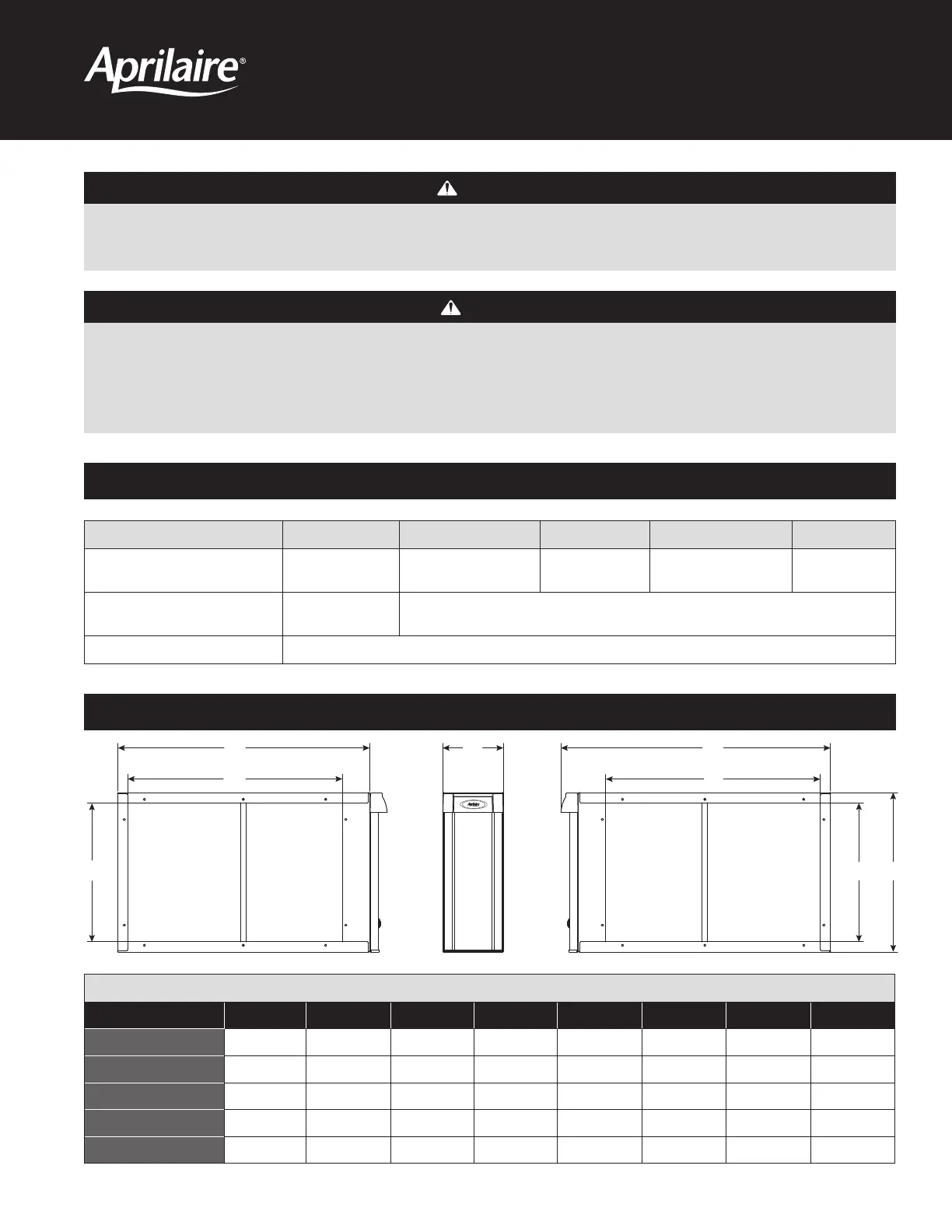

Air Cleaners
Installation Instructions
WARNING
1. High voltage may cause serious injury from electrical shock. Disconnect power to the furnace/air handler before starting installation.
2. Sharp edges may cause injury from cuts. Use care when cutting and handling sheet metal.
CAUTION
1. To prevent component failure, do not install the air cleaner on the warm air supply or in an area where the temperature may exceed 140°F.
This may include areas above heat exchangers in downflow furnaces or above exhaust flues in lowboy furnace cold air returns.
2. Installation must be done by a qualified heating and air conditioning professional. Read instructions thoroughly before beginning installation.
3. Do not install air cleaner downstream of a UV light. UV lamps will cause degradation of the filtering media.
SPECIFICATIONS
MODEL11101210, 2210, 2216, 32101310, 2310, 33101410, 2410, 2416, 34101910
Replacement Filter
Model 110 or 113
with SelfSeal™
Model 210, 213, 213CBN
or 216 with SelfSeal™
Model 310 or 313
with SelfSeal™
Model 410, 413, 413CBN
or 416 with SelfSeal™
Model 910 or 913
with SelfSeal™
Maximum Equipment Weight
Cabinet will support
250 lb. static load
Cabinet will support 400 lb. static load
Air Cleaner Operating EnvironmentTemperature: 0°F–140°F, Humidity: 0–90% non-condensing
DIMENSIONS
TABLE 1 – DIMENSIONS (INCHES)
ModelABCDEFGH
111015-7/1620-1/1617-3/86-3/422-1/1617-3/815-7/1617-3/4
1210, 2210, 2216, 321019-3/425-3/821-3/166-3/427-3/821-3/1619-3/422-1/16
1310, 2310, 331018-1/1620-1/1615-7/86-3/422-1/1615-7/818-1/1620-3/8
1410, 2410, 2416, 341015-7/1628-1/1623-7/86-3/430-1/1623-7/815-7/1617-3/4
191022-3/420-1/1615-7/86-3/422-1/1615-7/822-3/425-1/16
A
B
WITHOUT DOOR
C
D
E
WITH DOOR
F
GH
90-1333
English 1
