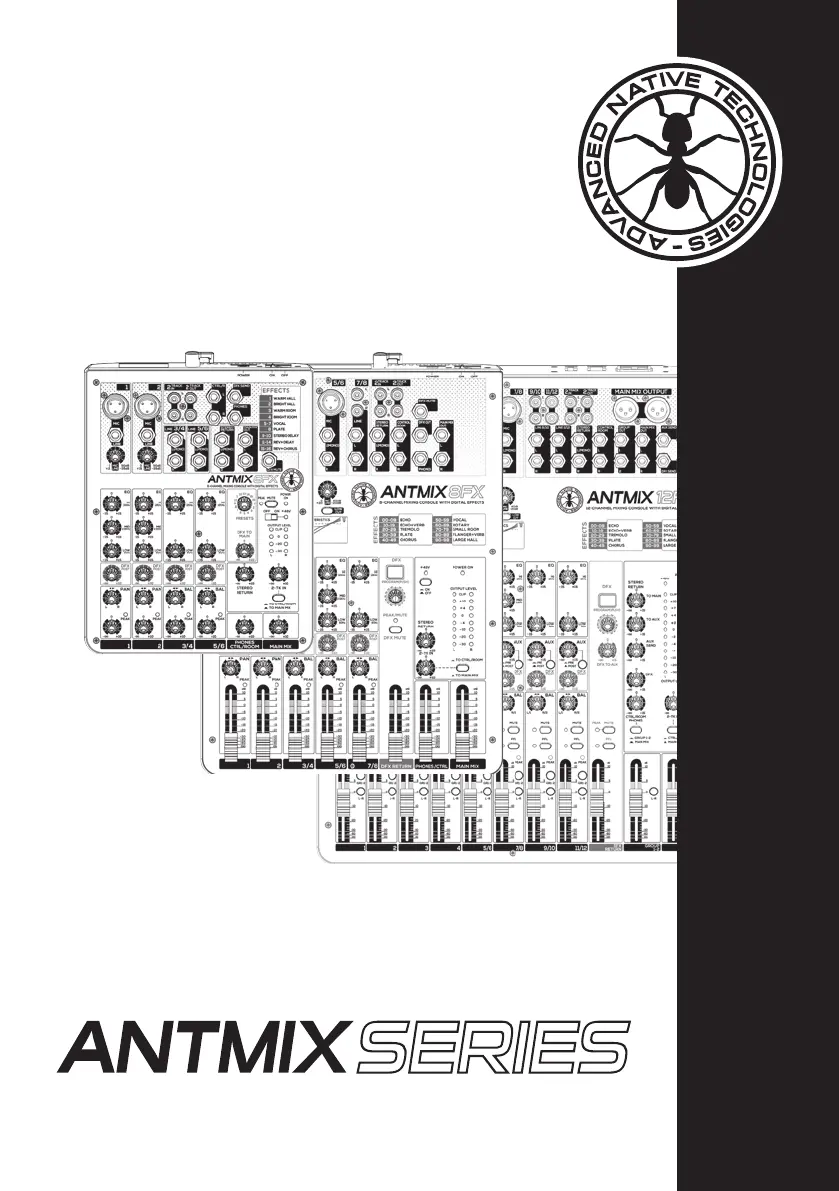

Pagina 1/39
EN USER MANUAL | S 1ection
IT MANUALE D’USO | S 1ezione
LIVE MIXING CONSOLE WITH EFFECTS
MIXER LIVE CON EFFETTI
SERIES
2
SERIES
User manual S | ANTMIX eries
ITALIANO
2
The warnings in this manual must be observed together with the “user
manual - Section 2””.
PACKAGE CONTENT
• 1 x Mixing console
• 1 x Mains cable with VDE plug - Mod. 12FX
• 1 x External power supply - Mod. 6FX - 8FX
• 1 x User manual - Section 1
• 1 x User manual - Section 2
TABLE OF CONTENTS
1 | Introduction 3
2 | Installation 3
3 | Description 4
3.1 | Mixer controls & connections 4
3.1.1 | Mono inputs 4
3.1.2 | Mono/Stereo Inputs 6
3.1.3 | Stereo inputs 9
3.1.4 | 6FX - Power supply and master section 12
3.1.5 | 8FX - Power supply and master section 16
3.1.6 | 12FX - Power supply and master section 21
4 | Troubleshooting 28
5 | Technical specications 30
6 | Connectors 33
7 | System connections 34
8 | Notes 37
4
SERIES
User manual S | ANTMIX eries
3 DESCRIPTION |
3.1 MIXER CONTROLS & CONNECTIONS |
3.1.1 MONO INPUTS |
1 MIC INPUT
XLR-F balanced microphone input.
2 LINE INPUT
6.35 mm. (1/4”) balanced line input. You may also use an
unbalanced cable.
3 INSERT - only in 8FX (in 1-2) and 12FX (in 1-4) models
6.35 mm. (1/4”) TRS socket. This socket allows you to connect
external devices (e. g. a compressor, an EQ, etc.) to process
the signal. For this connection use a "Y" cable, plugging to
this socket a TRS connector (tip = send, ring = return, and
sleeve = ground) then connect the external device with two
TS connectors, one for input and one for the output.
4 GAIN - 6FX (in 1-2) 8FX (in 1-4) e 12FX (in 1-6)
This knob adjusts the gain of the microphone or line signal,
turn it to the right to raise the level, or to the left to decrease it.
5 LOW CUT - 8FX (in 1-4) e 12FX (in 1-6)
This switch activates the hi-pass filter to reduce the
frequencies from 75Hz down.
Use it to avoid that microphones connected to the input
channels will pick up unwanted signals rich of low frequencies.
6 COMP - 8FX (in 1-2) e 12FX (in 1-4)
This knob simultaneously adjusts compression threshold
and ratio.
Turning the knob hard left, the compressor is turned off, turning
to the right you activate it, until the maximum compression
to + 10. Use this control, for example, to make voices levels
more homogeneous.
1
2
3
4
5
6
