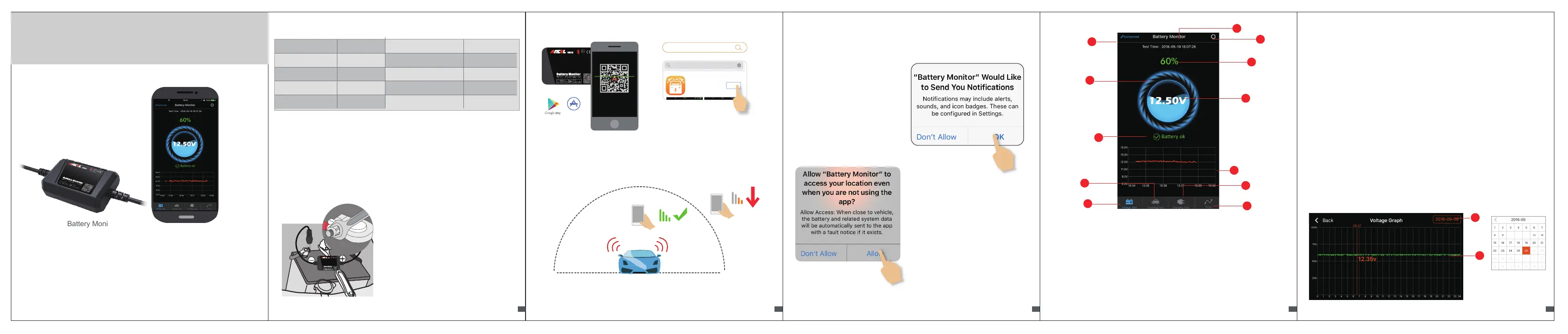

User Manual

1.0 Product Parameters

2.0 Product Safety Performance

3.0 How to Install the Product

4.0 App Installation

4.1 App Using Scene

4.2 App Operation

Battery Monitor

APP

Install the Battery Monitor to the

Vehicle Battery

1.Search “BM300” on App Store or Google Play to download App.（Fig 2）

2.Or scan the QR code printed on the package or product.（Fig 3）

App Store

4.2-1. Turn on your Bluetooth after launching the App.

4.2-4. App Interface Introduction-- Main Interface

4.2-5. App Interface Introduction—Voltage History Graph

1

2

3

5

4

6

7

8

11

1

2

10

9

12

（Fig 1）

（Fig 3）

（Fig 5）

（Fig 7）

（Fig 8）

（Fig 9）

（Fig 6）

（Fig 4）

Average Current

Input Voltage

Operating Temperature

Physical Dimensions

Voltage Accuracy

1mA

6~20V

-40℉~ 194℉

2.95”*1.97”*0.83”

±0.03V

Short-circuit Protection

Reverse Connection Protection

Bluetooth

Bluetooth Name

App Keyword

Built in

Built in

4.0

ANCEL Battery Monitor

BM300

（9-16V）

10m10m

The bluetooth transmission range can be maximum 30 feet (10m) with no

physical obstacles in the scope.

101112

ANCEL BM300 is a 12V bluetooth battery monitor, which supports voltage

test, cranking test, charging test and trip recording via bluetooth connec-

tion by App “ANCEL Battery Monitor”.

ANCEL BM300 Bluetooth Battery Monitor

1.Made of fireproof material, more resistant to high temperatures.

2.Built in electrical overload circuit breaker, automatically shutting off the

circuit if the current is too high.

3.Reverse-Polarity Protection, preventing damage to power supplies and

electronic circuits in the event of a reverse voltage applied at the input or

output terminals.

1. Connect the terminals to your batteries

with the red terminal going to the positive

pole and the black terminal to the negative

pole.

2. Keep the BM300 body settled in a

convenient location where the Bluetooth

transmission signal is not blocked.

4.2-2. Allow App access to

notifications, and you will

receive notifications of the car

battery/cranking system/charg-

ing system data and problem

detection in time.

4.2-3. Allow App access to your

location, once your phone enters

the range of the bluetooth, you will

be notified even the App is not

running.

1. The device name or ID. User can set up the nickname on the System

Setup.

2. Bluetooth connection status. Automatically connect to your mobile

device by default.

3. System Setup.

4. Status of charge display (SoC).

5. Dynamically rotate when charging.

6. Real-time battery voltage.

7. Status of health display: 1. Battery OK(Green) 2. Charging(Green) 3.

Low Power (Red).

8. Real-time voltage graph, tap on it to view the daily voltage graph .

9. Voltage test.

10. Cranking test.

11. Charging test.

12. Trip recording.

1

2345

BM300

（Fig 2）

GET

®

10R-0514419

®

10R-0514419

BM300

ANCEL

Battery Monitor
