American Standard Tropic T038507.002 Handleiding
Pagina's 4 Douchesysteem
Bekijk de handleiding van American Standard Tropic T038507.002 gratis online of download de PDF. 12 mensen vonden deze handleiding nuttig. Vraag over dit model? Stel een vraag
T038.50X
TROPIC
FINISHED WALL
4"
TOP OF TUB RIM
BOTTOM OF TUB
74" FOR HEAD
CLEARANCE
4-1/4" REF.
18" OPTIONAL
5-1/8" REF.
1/2" NPT
1/2" COPPER
7-5/8”
1-1/2" REF.
6" REF.
"SEE ILLUSTRATION "
3/4"" TO 2-3/8"
SHR
TUB
OPTIONAL TO FINISHED
FLOOR USUALLY
BETWEEN 65'' AND 80''

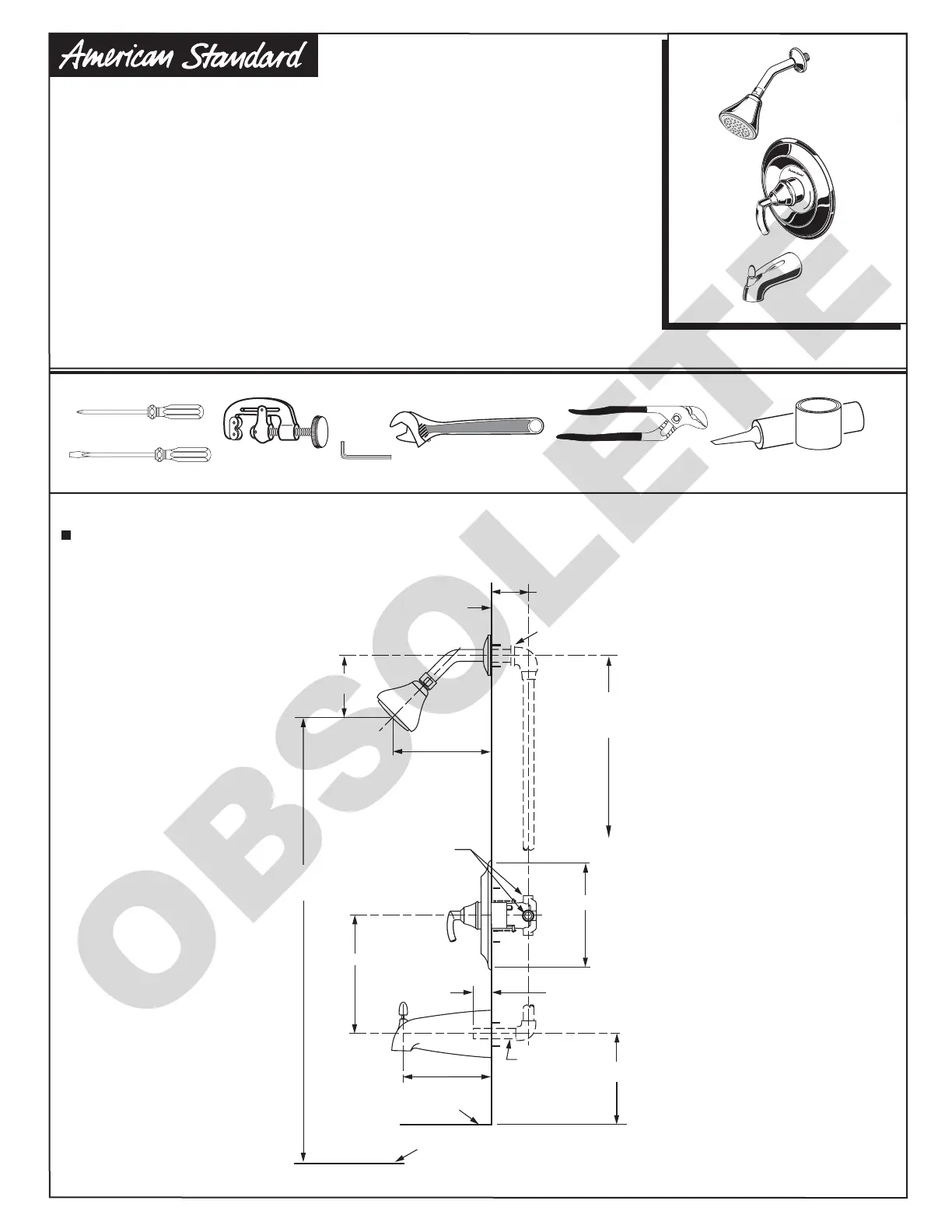

IN WALL PRESSURE BALANCING
BATH AND SHOWER TRIM KIT
To assure proper positioning in relation to wall,
note roughing-in dimensions.
ROUGHING-IN DIMENSIONS
Certified to comply with ANSI A112.18.1
Installation
Instructions
Tubing Cutter
4mm (5/32")
Hex Wrench
Recommended Tools
Adjustable Wrench
Channel Locks
Flat Blade Screwdriver
Plumbers' Putty or Caulking
Phillips Screwdriver
H
C
OFF
M968895 Rev.1.1
Thank you for selecting American-Standard...
the benchmark of fine quality for over 100 years.
To ensure that your installation proceeds smoothly--
please read these instructions carefully before
you begin.
OBSOLETE
