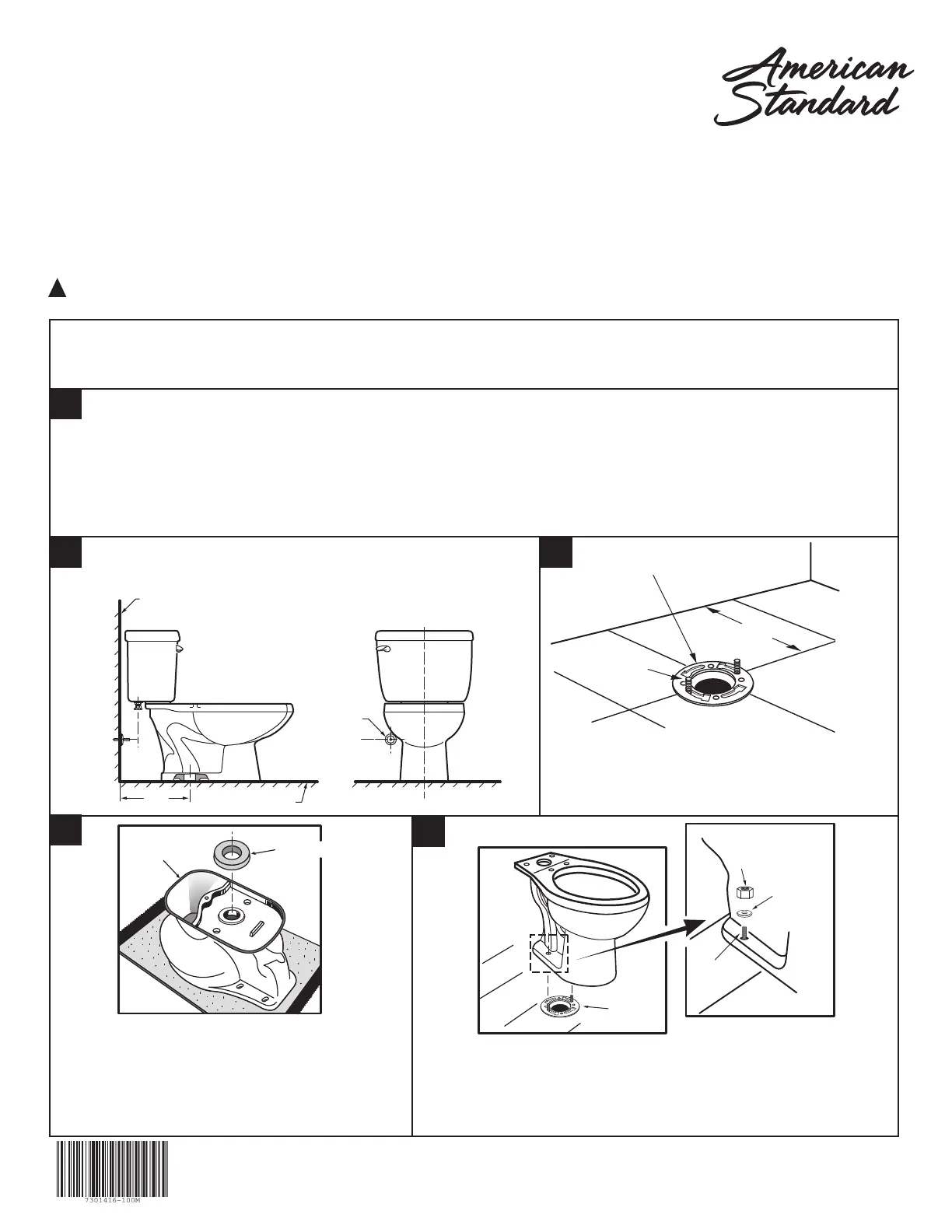

REMOVE OLD TOILET
a. Close toilet supply valve and flush tank completely. Towel or sponge remaining water from tank and bowl.
b. Disconnect and remove supply line. NOTE: If replacing valve, first shut off main water supply!
c. Remove old mounting hardware, remove toilet and plug floor waste opening to prevent escaping sewer gases.
d. Remove closet bolts from flange and clean away old wax, putty, etc. from base area.
NOTE: Mounting surface must be clean and level before new toilet is installed!
SAVE FOR FUTURE USE
3
2
1
CLOSET
FLANGE
CLOSET
BOLTS
7301416-100 Rev. M 4/18
A
FINISHED WALL
FINISHED FLOOR
SUPPLY
AS
REQ'D.
CAUTION: PRODUCT IS FRAGILE. TO AVOID BREAKAGE AND POSSIBLE INJURY HANDLE WITH CARE!
Product names listed herein are trademarks of AS America Inc.
© AS America Inc. 2018
NOTE: Pictures may not exactly define contour of china and components.
ROUGHING-IN DIMENSIONS:
NOTE: Distance from wall to closet flange centerline must be as listed below:
A = 12" (305mm)
A
WAX RING
SEALANT
5
4
INSTALL WAX SEAL
Invert toilet on floor (cushion to prevent damage),
and install wax ring evenly around waste flange
(horn), with tapered end of ring facing toilet. Apply
a thin bead of sealant around toilet base.
POSITION TOILET ON FLANGE
a. Unplug floor waste opening and install toilet on closet flange so bolts project
through mounting holes.
b. Loosely install retainer washers and nuts. Side of washers marked "THIS
SIDE UP" must face up!
CLOSET
BOLT
NUT
TAPERED
WASHER
FLANGE
Thank you for selecting American Standard – the benchmark of fine quality for over 100 years. To ensure
this product is installed properly, please read these instructions carefully before you begin. (Certain
installations may require professional help.) Also be sure your installation conforms to local codes.
!
INSTALLATION INSTRUCTIONS
Siphonic Ultra-High Efficiency Two-Piece Toilets
H2Optimum
™
Single Flush Models 288AA / 288CA / 288DA
H2Option
®
Dual Flush Models 2886 / 2887 / 2889
INSTALL CLOSET BOLTS
Install closet bolts in flange channel
and slide into place parallel to wall.
RECOMMENDED TOOLS AND MATERIALS
Putty Knife Regular Screwdriver Adjustable Wrench Sealant Tape Measure
Hacksaw Wax Ring/Gasket Flexible Supply Tube Closet Bolts Carpenters Level
