User Instructions
© ®American DJ - www.americandj.com - Prismatic Instruction Manual Page 2
Unpacking: Thank you for purchasing the Prismatic by American DJ . ®
Every Prismatic has been thoroughly tested and has been shipped in
perfect operating condition. Carefully check the shipping carton for
damage that may have occurred during shipping. If the carton appears
to be damaged, carefully inspect your unit for any damage and be sure
all equipment necessary to operate the unit has arrived intact. In the
event damage has been found or parts are missing, please contact
our toll free customer support number for further instructions. Please
do not return the unit to your dealer without first contacting customer
support.
Introduction: Thank you for purchasing the American DJ Prismatic.®
™
The Prismatic is a small, lightweight fixture that produces a very color-
ful effect. The unit has 2-way mode switch that allows the unit to be
operated in two different modes (see page 5 for operating modes). To
optimize beam intensity use this fixture with a fog machine or other
type of special effect smoke.
Customer Support: American DJ provides a toll free customer sup-®
port line, to provide set up help and to answer any question should
you encounter problems during your set up or initial operation. You
may also visit us on the web at www.americandj.com for any com-
ments or suggestions. For service related issue please contact Ameri-
can DJ . Service Hours are Monday through Friday 9:00 a.m. to 5:00 ®
p.m. Pacific Standard Time.
Voice: (800) 322-6337
Fax: (323) 582-2610
E-mail: support@americandj.com
To purchase parts online visit http://parts.americandj.com
Warning! To prevent or reduce the risk of electrical shock or fire, do
not expose this unit to rain or moisture.
Caution! There are no user serviceable parts inside this unit. Do not
attempt any repairs yourself, doing so will void your manufactures war-
ranty. In the unlikely event your unit may require service please contact
American DJ.
PLEASE recycle the shipping carton whenever possible.
Prismatic General Introduction
American DJ ®
4295 Charter Street
Los Angeles, CA. 90058
www.americandj.com
8/06
PRISMATIC
American DJ®
© ®American DJ - www.americandj.com - Prismatic Instruction Manual Page 4© ®American DJ - www.americandj.com - Prismatic Instruction Manual Page 3
Please carefully read and understand the instructions in this manual
thoroughly before attempting to operate this unit. These instructions
contain important safety information regarding the use and mainte-
nance of this unit. Please keep this manual with the unit, for future
reference.
Prismatic General Instructions Prismatic Precautions
Prismatic Warranty Registration
The Prismatic carries a one year (365 days) limited warranty. Please
fill out the enclosed warranty card to validate your purchase. All
returned service items whether under warranty or not, must be freight
pre-paid and accompany a return authorization (R.A.)
number. If the
unit is under warranty you must provide a copy of your proof of pur
-
chase invoice. Please contact American DJ
® customer support for a
R.A. number.
Safety Issues: This unit may blow the fuse if the maximum allotted load
of 5 amps is reached. If the fuse needs replacement, always replace the
fuse with same exact type that was remove, unless otherwise instructed
by an authorized American DJ service technician. Use of a different type ®
fuse from that which is recommended may cause fire or electric shock
and will void the manufactures warranty.
• To reduce the risk of electrical shock or fire, do not expose this unit
rain or moisture
• Do not spill water or other liquids into or on to your unit
• Do not attempt to operate this unit if the power cord has been frayed
or broken
• Do not attempt to remove or break off the ground prong from the
electrical cord. This prong is used to reduce the risk of electrical
shock and fire in case of an internal short
• Disconnect from main power before making any type of connection
• Do not remove the cover under any conditions. There are no user
serviceable parts inside
• Never plug this unit in to a dimmer pack
• Always be sure to mount this unit in an area that will allow proper
ventilation. Allow about 6” (15cm) between this device and a wall
• Do not attempt to operate this unit, if it becomes damaged
• This unit is intended for indoor use only, use of this product outdoors
voids all warranties
• During long periods of non-use, disconnect the unit’s main power
• Always mount this unit in safe and stable matter
• Power cords should be routed so they are not likely to be walked on,
pinched by items placed upon or against them.
• Cleaning -The fixture should be cleaned only as recommended by
the manufacturer. See page 9 for cleaning details
• Heat -The appliance should be situated away from heat sources such
as radiators, heat registers, stoves, or other appliances (including
amplifiers) that produce heat.
• The fixture should be serviced by qualified service personnel when:
A. The power-supply cord or the plug has been damaged.
B. Objects have fallen, or liquid has been spilled into the unit.
C. The unit has been exposed to rain or water.
D. The unit does not appear to operate normally or exhibits a
marked change in performance.
Prismatic Cleaning
Fixture Cleaning:
Due to fog residue, smoke, and dust cleaning the internal and exter-
nal lenses should be carried out periodically to optimize light output.
1. Use normal glass cleaner and a soft cloth to wipe down the
outside casing.
2. Clean the external optics with glass cleaner and a soft cloth every
20 days.
4. Clean the internal optics with glass cleaner and a soft cloth every
30-60 days.
5. Always be sure to dry all parts completely before plugging the unit
back in.
Cleaning frequency depends on the environment in which the fixture
operates (I.e. smoke, fog residue, dust, dew). In heavy use we rec
-
ommend cleaning on a monthly basis. Periodic cleaning will ensure
longevity, and crisp beam output.
© ®American DJ - www.americandj.com - Prismatic Instruction Manual Page 5
© ®American DJ - www.americandj.com - Prismatic Instruction Manual Page 6
Prismatic Fuse & Lamp Replacement Prismatic Operation
Power Supply: Before plugging your unit in, be sure the source
voltage in your area matches the required voltage for your American
DJ Prismatic before attempting operation. ®
General Operation: Just plug this light in, and watch it go. This fix-
ture is designed to operate as a stand alone unit. It has been tested
and the lamp has been installed at the factory there is no assembly
necessary. The Prismatic is ready to be plugged in, out of the box.
There is no power switch, after plugging in the unit the lamp should
t on, and the internal prism will be sound active. If there is no lamp
output check the fuse and bulb. If the fuse and bulb are good, please
return the unit for servicing.
Operating Modes:
This unit comes with a 2-way operating switch located on the bottom
of the unit. The switch controls two (2) different operating modes.
Switch in the up position: Mode 1 - In this mode the gobo/color
wheel will spin continuously in one direction, while the internal prism
will react to sound
.
Switch in the down position: Mode 2 - In this mode the gobo/color
wheel will remain static
, while the internal prism will react to sound.
Focusing:
The unit has a fully focusing lens. The lens is focused by manually
turning the lens in either a clockwise or counter-clockwise direction.
Caution: Always replace with the exact same type lamp, unless oth-
erwise specified by an authorized American DJ
® technician. Replace
with anything other than the specified part can damage your unit and
will void your manufactures warranty.
Warning: If after you have replaced the lamp or fuse and you con-
tinue to blow either one, STOP using the unit. Contact customer sup
-
port for further instructions, you may have to return the unit for ser
-
vicing. Continuing to use the unit may cause serious damage.
Fuse Replacement: First unplug the power. Locate the unit’s power
cord. The fuse holder is located above the power cord. Using a flat-
head screw driver unscrew the fuse holder. Remove the bad fuse and
replace with a new one.
Lamp Replacement: Caution! Never open the unit when in use.
Always disconnect the main power and allow the fixture ample time
to cool before attempting to replace the lamp. Again, please remem
-
ber to always replace with the exact same type lamp.
1. Be sure to follow the proper procedures when handling halogen
lamps. Never touch the new lamp with your bare fingers.
2. Unscrew the single thumb screw located at the back of the unit.
3. Once the thumb screw has been removed, remove the lamp
cover plate to expose the lamp.
4. Remove and replace the lamp with an exact match.
5. Reassemble in reverse order.

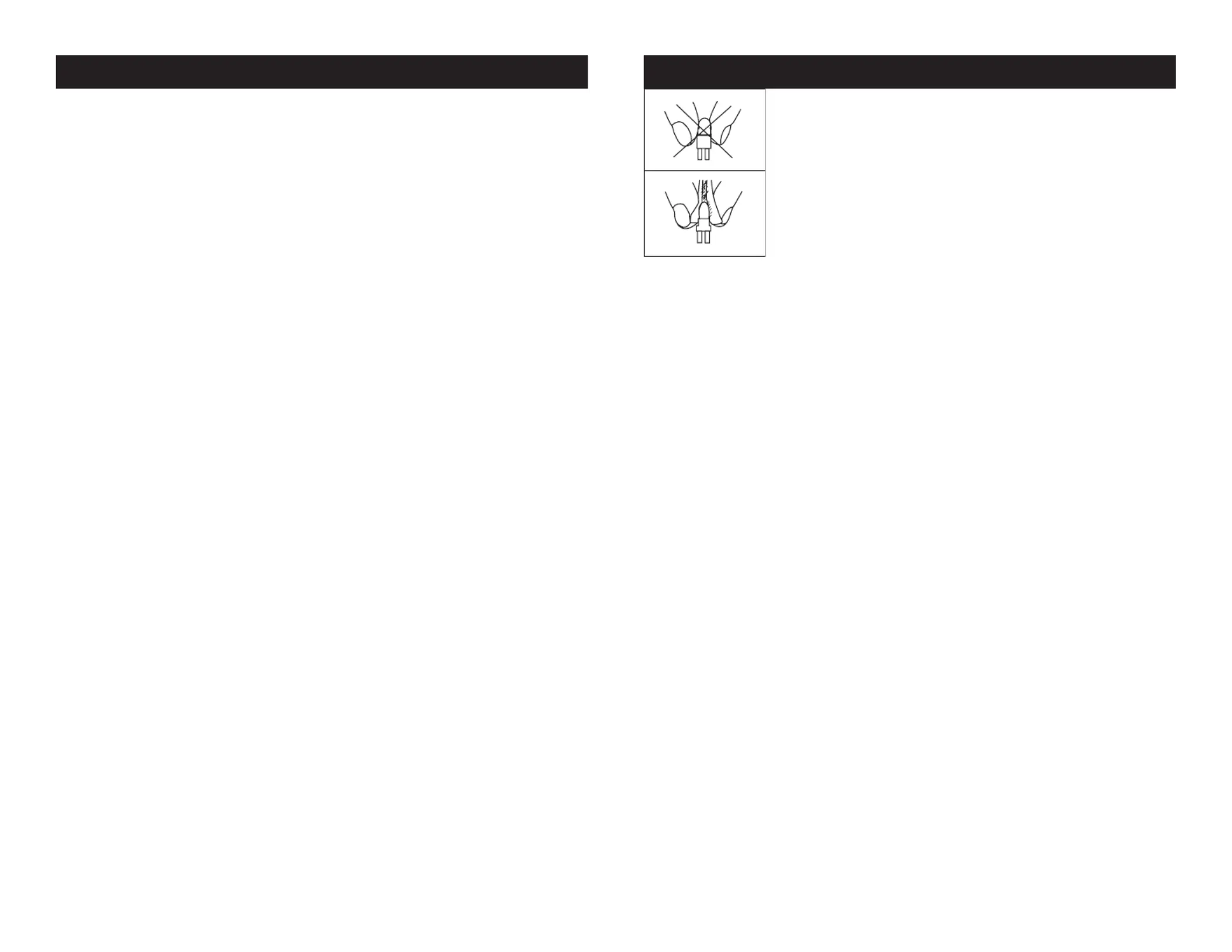

Halogen Lamp Warning! This fixture is fitted with
halogen lamps which are highly susceptible to
damage if improperly handled. Never touch the
lamps with your bare fingers as the oil from your
hands will shorten lamp life. Also, never move the
f until the lamps have had ample time to cool.
Remember, lamps are not covered under warranty
conditions.
