Pagina 1/19

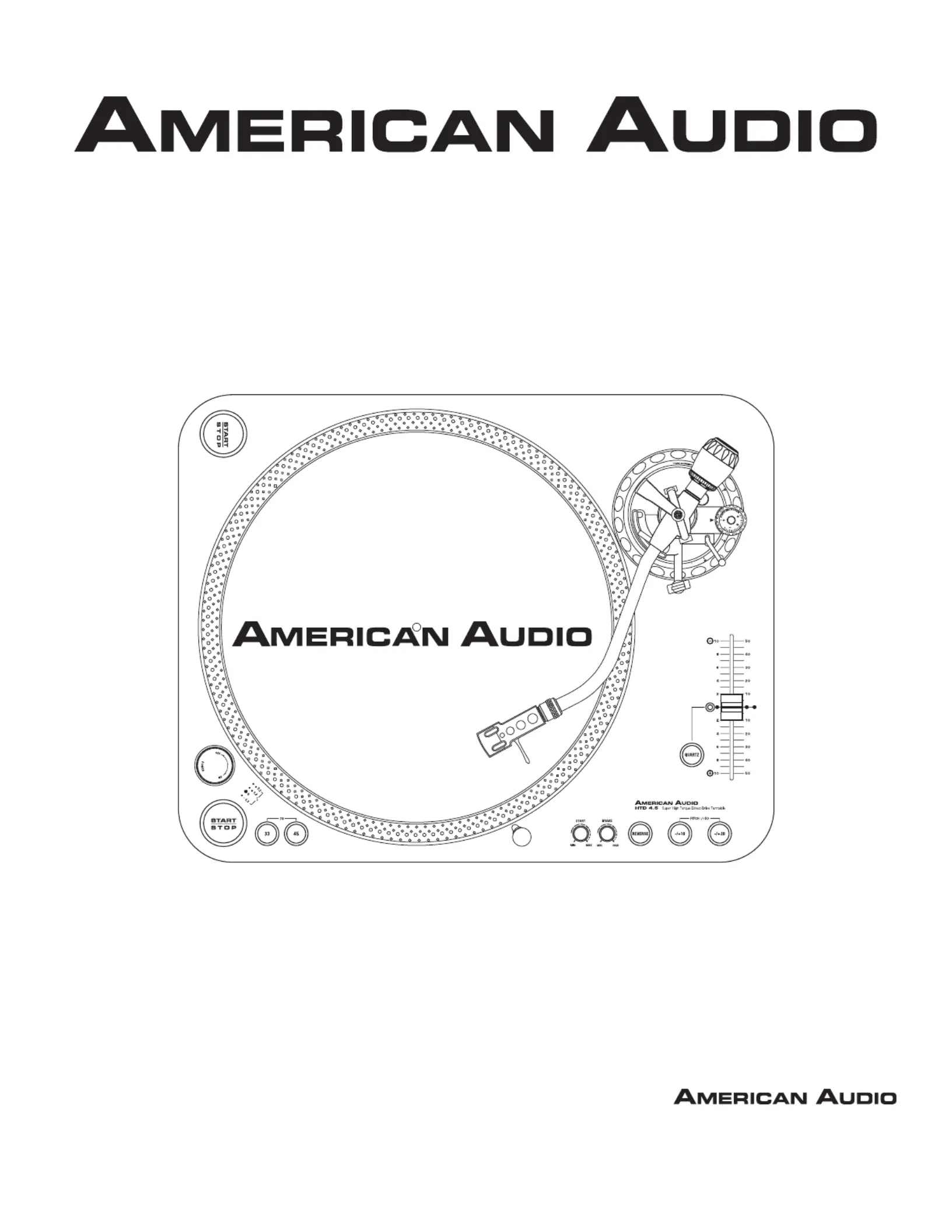

USER INSTRUCTIONS
HTD 4.5
4295 Charter Street
Los Angeles Ca. 90058
www.AmericanAudio.us
Rev. 4/05
HIGH TORQUE DIRECT DRIVE TURNTABLE
© ®American Audio - www.americanaudio.us - HTD 4.5™ Instruction Manual Page 2
© ®American Audio - www.americanaudio.us - HTD 4.5™ Instruction Manual Page 3
ELECTRICAL SAFETY PRECAUTIONS..................................................................................................4
INSTALLATION GUIDLINES....................................................................................................................5
PRODUCT INFORMATION......................................................................................................................6
CUSTOMER SUPPORT ..........................................................................................................................6
QUICK START.........................................................................................................................................7
ASSEMBLY ..... ........................................................................................................................................8
SET-UP...................................................................................................................................................9
HEADSHELL AND CARTRIDGE ASSEMBLY.........................................................................................9
PROPER TURNTABLE INSTALLATION................................................................................................11
TONEARM BALANCING.......................................................................................................................11
ANTI-SKATE.........................................................................................................................................11
FUNCTIONS AND CONTROLS
MAIN UNIT.................................................................................................................................12
TONEARM ASSEMBLY..............................................................................................................15
TROUBLE SHOOTING..........................................................................................................................16
WARRANTY..........................................................................................................................................17
SPECIFICATIONS.................................................................................................................................18
CONTENTS
CAUTION: TO REDUCE THE RISK OF ELECTRIC
SHOCK, DO NOT REMOVE THE COVER.
THERE ARE NO USER SERVICEABLE PARTS
INSIDE. REFER ALL SERVICE TO YOUR
AUTHORIZED AMERICAN AUDIO
® DEALER.
CAUTION
Do not open -
risk of electric shock
The lightning flash with an arrow triangular
symbol is intended to alert the user to the
presence of non insulated “dangerous volt
-
age” within the products enclosure, and
may be of sufficient magnitude to constitute
a risk of electric shock.
The exclamation point triangular symbol is
intended to alert the user to the presence
of important operating and maintenance
(servicing) instructions in the user manual
accompanying the amplifier.
NOTE: This product satisfies FCC
regulations when shielded cables
and connectors are used to con
-
nect the unit to other equipment.
To prevent electromagnetic inter
-
ference with electrical appliances
such as radios and televisions, use
shielded cables and connectors
for connections.
