Pagina 1/8
Introduction:
Thank you for purchasing the H2O DMX PRO by American DJ . The ®
H2O DMX PRO is an improvement of the very popular H2O LED. This
new unit has better optics and brighter LED output ing vibrant produc
colors. The unit has 2 operating modes; manual mode & DMX Con-
trolled. It can be used as a stand alone unit or in a master-slave con-
figuration. This unit is suitable for theaters, studios, retail stores, and
other similar locations.
Unpacking: Every H2O DMX PRO has been thoroughly tested and
has been shipped in perfect operating condition. Carefully check the
shipping carton for damage that may have occurred during shipping. If
the carton appears to be damaged, carefully inspect your units for any
damage and be sure all accessories necessary to operate the system
have arrived intact. In the event damage has been found or parts are
missing, please contact our toll free customer support number for fur-
ther instructions. Please do not return the system to your dealer with-
out rst contacting customer support.
Customer Support:
American DJ
® provides a toll free customer support line, to provide set
up help and to answer any question should you encounter problems
during your set up or initial operation. You may also visit us on the web
at www.americandj.com for any comments or suggestions. Service
Hours are Monday through Friday 8:00 a.m. to 4:30 p.m. Pacic Stan-
dard Time.
Voice: (800) 322-6337
Fax: (323) 582-2941
E-mail: support@americandj.com
To purchase parts online visit http://parts.americandj.com
Warning! To prevent or reduce the risk of electrical shock or re, do
not expose this unit to rain or moisture.
Caution! There are no user serviceable parts inside this unit. Do not
attempt any repairs yourself, doing so will void your manufactures war-
ranty. In the unlikely event your unit may require service please contact
American DJ.
Please recycle the shipping cartoon when ever possible.
H2O DMX PRO Introduction
© ®American DJ Supply - www.americandj.com - H2O DMX PRO Instruction Manual Page 2
Rev. 4/14
User Instructions
H2O DMX PRO Warranty Registration
The two 730H2O DMX PRO carries a year ( days) limited warranty.
Please fill out the enclosed warranty card to validate your purchase.
All returned service items whether under warranty or not, must be
freight pre-paid and accompany a return authorization (R.A.) num-
ber. The R.A. number must be clearly written on the outside of the
return package. A brief description of the problem as well as the R.A.
number must also be written down on a piece of paper and included
in the shi ping container. If the unit is under warranty, you must prop -
vide a copy of your proof of purchase invoice. You may obtain a R.A.
number by contacting customer support at (800) 322-6337.
H2O DMX PRO Features
To optimize the performance of this product, please read these
operating instructions carefully to familiarize yourself with the basic
operations of this unit. These instructions contain important safety
information regarding the use and maintenance of this unit. Please
keep this manual with the unit, for future reference.
H2O DMX PRO General Instructions
© ®American DJ Supply - www.americandj.com - H2O DMX PRO Instruction Manual Page 3 American DJ Supply - www.americandj.com - H2O DMX PRO Instruction Manual Page 4© ®
• Includes Built-In Hanging Yoke
• 5 Colors Plus White
• Mixed Coloring
• Manually Control Color, Rotation Speed, & Dimmer. See page 9.
• 34 Degree Lens & 52 Degree Lens
• Power Cord Daisy Chain (See page 14)
• To reduce the risk of electrical shock or re, do not expose this unit
rain or moisture
• Do not spill water or other liquids into or on to your unit.
• Do not attempt to operate this unit if the power cord has been
frayed or broken. Do not attempt to remove or break o the ground
prong from the electrical cord. This prong is used to reduce the risk
of electrical shock and re in case of an internal short.
• Disconnect from main power before making any type of connection.
• Do not remove the cover under any conditions. There are no user
serviceable parts inside.
• Never operate this unit when it’s cover is removed.
• Never plug this unit in to a dimmer pack
• Always be sure to mount this unit in an area that will allow proper
ventilation. Allow about 6” (15cm) between this device and a wall.
• Do not attempt to operate this unit, if it becomes damaged.
• This unit is intended for indoor use only, use of this product out`
doors voids all warranties.
• During long periods of non-use, disconnect the unit’s main power.
• Always mount this unit in safe and stable matter.
• Power-supply cords should be routed so that they are not likely to
be walked on or pinched by items placed upon or against them,
paying particular attention to the point they exit from the unit.
• Cleaning -The fixture should be cleaned only as recommended by
t he manufacturer. See page 14 for cleaning details.
• Heat -The appliance should be situated away from heat sources
such as radiators, heat registers, stoves, or other appliances (inclu-
d ing amplifiers) that produce heat.
• The fixture should be serviced by qualified service personnel
when:
A. The power-supply cord or the plug has been damaged.
B. Objects have fallen, or liquid has been spilled into the appliance.
C. The appliance has been exposed to rain or water.
D. The appliance does not appear to operate normally or exhibits a
marked change in performance.
H2O DMX PRO Safety Precautions
H2O DMX PRO Installation
The unit should be mounted using a mounting clamp (not provided),
axing it to the mounting bracket that is provided with the unit.
Always ensure that the unit is rmly xed to avoid vibration and slip-
ping while operating. Always ensure that the structure to which you
are attaching the unit is secure and is able to support a weight of 10
times the unit’s weight. Also always use a safety cable that can hold
12 times the weight of the unit when installing the xture.
The equipment must be installed by a professional, and it must be
installed in a place where it is out of the reach of people’s grasp.
© ®American DJ Supply - www.americandj.com - H2O DMX PRO Instruction Manual Page 5 American DJ Supply - www.americandj.com - H2O DMX PRO Instruction Manual Page 6© ®
Power Supply: The American DJ H2O DMX PRO contains a auto®-
matic voltage switch, which will auto sense the voltage when it is
plugged into the power source. With this switch there is no need to
worry about the correct power voltage, this unit can be plugged in
anywhere.
DMX-512: DMX is short for Digital Multiplex. This is a universal pro-
tocol used as a form of communication between intelligent fixtures
and controllers. A DMX controller sends DMX data instructions from
the controller to the fixture. DMX data is sent as serial data that trav-
els from fixture to fixture via the DATA “IN” and DATA “OUT” XLR ter-
minals located on all DMX fixtures (most controllers only have a DATA
“OUT” terminal).
DMX Linking: DMX is a language allowing all makes and models of
dierent manufactures to be linked together and operate from a sin-
gle controller, as long as all xtures and the controller are DMX com-
pliant. To ensure proper DMX data transmission, when using several
DMX fixtures try to use the shortest cable path possible. The order
in which fixtures are connected in a DMX line does not influence the
DMX addressing. For example; a fixture assigned a DMX address of 1
may be placed anywhere in a DMX line, at the beginning, at the end,
or anywhere in the middle. When a fixture is assigned a DMX address
of 1, the DMX controller knows to send DATA assigned to address 1
to that unit, no matter where it is located in the DMX chain.

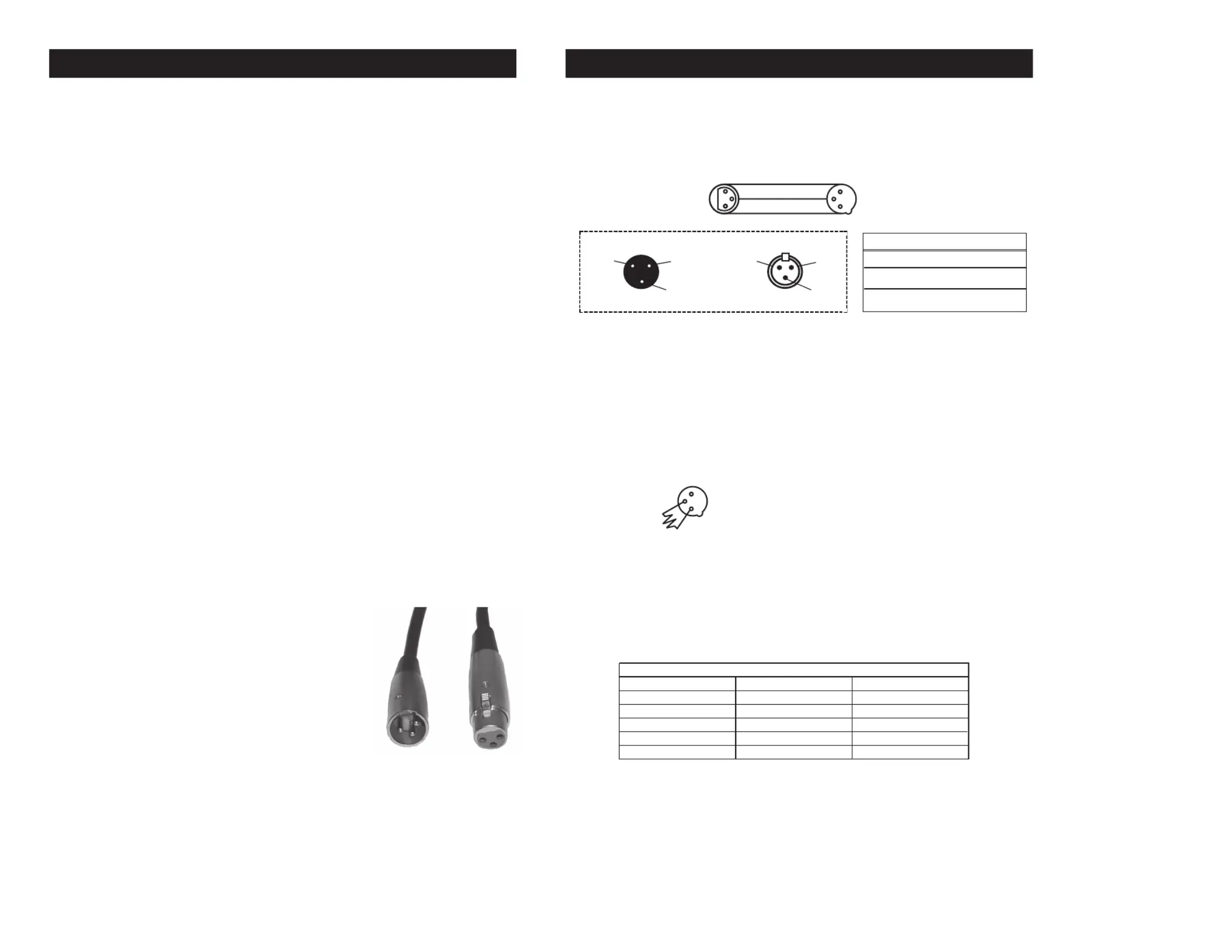

Data Cable (DMX Cable) Requirements (For DMX Operation):
The H2O DMX PRO is a three channel DMX unit. The DMX address is set
on the top panel of the H2O DMX PRO. Your unit and your DMX con-
troller require a approved DMX-512 110 Ohm Data cable for data input
and data output. We recommend Accu-Cable DMX cables. If you are
making your own cables, be sure to use standard
110-120 Ohm shielded cable (This cable may be
purchased at almost all professional sound and
lighting stores). Your cables should be made with
a male and female XLR connector on either end
of the cable. Also remember that DMX cable must
be daisy chained and cannot be split.
Figure 1
Notice: Be sure to follow gures two and three when making your own
cables. Do not use the ground lug on the XLR connector. Do not con-
nect the cable’s shield conductor to the ground lug or allow the shield
conductor to come in contact with the XLR’s outer casing. Grounding
the shield could cause a short circuit and erratic behavior.
DMX512 IN
3-PIN XLR
1
2
3
1
2
3
DMX +
DMX -
COMMON
DMX512 OT
3-PIN XLR
Figure 2
Figure 3
1 Ground
1 Ground
XLR Male Socket
XLR Pin Conguration
3 Hot
2 Cold
2 Cold
3 Hot
XLR Female Socket
Pin 3 = Data True (positive)
Pin 2 = Data Compliment (negative)
Pin 1 = Ground
Special Note: Line Termination.
When longer runs of cable are
used, you may need to use a terminator on the last unit to avoid erratic
behavior. A terminator is a 110-120 ohm 1/4 watt resistor which is con-
nected between pins 2 and 3 of a male XLR connector (DATA + and
DATA -). This unit is inserted in the female XLR connector of the last
unit in your daisy chain to terminate the line. Using a cable terminator
(ADJ part number Z-DMX/T) will decrease the possibilities of erratic
behavior.
1
2
3
Termination educes signalr errors and
avoids signal transmission problems
and interference. It is always advisable
to connect a DMX terminal, (Resistance
120 Ohm 1/4 W) between PIN 2 (DMX-)
and PIN 3 (DMX +) of the last fixture.
Figure 4
5-Pin XLR DMX Connectors.
Some manufactures use 5-pin DMX-
512 data cables for DATA transmission in place of 3-pin. 5-pin DMX
xtures may be implemented in a 3-pin DMX line. When inserting stan-
dard 5-pin data cables in to a 3-pin line a cable adaptor must be used,
these adaptors are readily available at most electric stores. The chart
below details a proper cable conversion.
Conductor 5-Pin XLR Male (In)3-Pin XLR Female (Out)
Pin 1
Do Not Use
Do Not Use
Pin 3
Pin 2
Pin 1
Pin 3
Pin 2
Not Used
Not Used
Data True (+ signal)
Data Compliment (- signal)
Ground/Shield
3-Pin XLR to 5-Pin XLR Conversion
H2O DMX PRO DMX Set Up H2O DMX PRO DMX Set Up
Product specificaties
| Merk: | American Audio |
| Categorie: | Niet gecategoriseerd |
| Model: | H2O DMX PRO |
Heb je hulp nodig?
Als je hulp nodig hebt met American Audio H2O DMX PRO stel dan hieronder een vraag en andere gebruikers zullen je antwoorden
Handleiding Niet gecategoriseerd American Audio
15 Augustus 2025
15 Augustus 2025
14 Augustus 2025
14 Augustus 2025
14 Augustus 2025
14 Augustus 2025
14 Augustus 2025
14 Augustus 2025
14 Augustus 2025
14 Augustus 2025
Handleiding Niet gecategoriseerd
- Backyard Discovery
- Dynacord
- Parklands
- Kitronik
- Wentronic
- Heaven Fresh
- Magnus
- Arturia
- Sebo
- Appsys ProAudio
- Hurtle
- BRIO
- Ventura
- Huion
- Dnipro
Nieuwste handleidingen voor Niet gecategoriseerd
15 Augustus 2025
15 Augustus 2025
15 Augustus 2025
15 Augustus 2025
15 Augustus 2025
15 Augustus 2025
15 Augustus 2025
15 Augustus 2025
15 Augustus 2025
15 Augustus 2025
