User Instructions
American DJ®
4295 Charter Street
Los Angeles Ca. 90058
www.americandj.com
Concept 1™ Introduction
© ®American DJ Supply - www.americandj.com - Concept 1™ Instruction Manual Page 2
American DJ®
Revised 10/03
General instructions: To optimize the performance of this product,
please read these operating instructions carefully to familiarize yourself
with the basic operations of this unit. These instructions contain impor-
tant safety information regarding the use and maintenance of this unit.
Please keep this manual with the unit, for future reference.
Unpacking: Thank you for purchasing the Concept 1™ by American
DJ . Every Concept 1™ has been thoroughly tested and has been ®
shipped in perfect operating condition. Carefully check the shipping
carton for damage that may have occurred during shipping. If the carton
appears to be damaged, carefully inspect your xture for any damage
and be sure all accessories necessary to operate the unit has arrived
intact. In the case damage has been found or parts are missing, please
contact our toll free customer support number for further instructions.
Do not return this unit to your dealer without rst contacting customer
support.
Introduction: The Concept 1
TM
is part of American DJʼs continuing
pursuit for creating high quality affordable intelligent fixtures. The Con-
cept 1™ is a DMX scanner with a built-in 4.9mW diode laser. Both the
laser and the lamp can be operated at the same time for truly amazing
effects. This unit is light weight and compact which makes it a great
piece for mobile DJʼs and clubs. For best results use this unit with a fog
machine to enhance the output of the beams and laser.
Customer Support: American DJ provides a toll free customer sup-®
port line, to provide set up help and to answer any question should you
encounter problems during your set up or initial operation. You may
also visit us on the web at www.americandj.com for any comments or
suggestions. Service Hours are Monday through Friday 9:00 a.m. to 5:
00 p.m. Pacic Standard Time.
Voice: (800) 322-6337
Fax: (323) 582-2610
E-mail: support@americandj.com
To purchase parts online visit http://parts.americandj.com
Caution! There are no user serviceable parts inside this unit. Do not
attempt any repairs yourself, doing so will void your manufactures war-
ranty. In the unlikely event your unit may require service please contact
American DJ .®
Concept 1™ Safety Precautions
© ®American DJ Supply - www.americandj.com - Concept 1™ Instruction Manual Page 4© ®American DJ Supply - www.americandj.com - Concept 1™ Instruction Manual Page 3
• Scanner and Laser in one effect
• 4.9mW diode laser
• 15 colors plus white
• Two 4 split colors
• 19 gobos plus spot
• Two interchangeable gobos
• Separate color and gobo wheels
• High Speed Shutter with variable Speed
• 230 degree pan / 110 degree tilt
• Projection angle 16 degrees
• Full Micro-stepping, with 4 stepper motors.
• Built in Microphone
• Auto switch to Stand-Alone (Master/Slave) operation
when DMX signal is disconnected
• Run up to 16 heads without controller
• DMX-512 protocol
• Full Focusing
• Fan cooled
• Uses nine DMX Channels
• Digital DMX display
• Optional Concept-C controller (Not Included)
Safety Issue: This unit may blow a fuse if the maximum allotted load
of 7 amps is reached. If the fuse needs replacement, please see the
fuse replacement guidelines on page 17.
• To reduce the risk of electrical shock or re, do not expose this unit
rain or moisture
• Do not spill water or other liquids into or on to your unit.
• Be sure that the local power outlet match that of the required voltage
for your unit.
• Do not attempt to operate this unit if the power cord has been frayed
or broken. Do not attempt to remove or break off the ground prong
from the electrical cord. This prong is used to reduce the risk of elec-
trical shock and re in case of an internal short.
• Disconnect from main power before making any type of connection.
• Do not remove the cover under any conditions. There are no user
serviceable parts inside.
• Never operate this unit when itʼs cover is removed.
• Never plug this unit in to a dimmer pack
• Always be sure to mount this unit in an area that will allow proper
ventilation. Allow about 6” (15cm) between this device and a wall.
• Do not attempt to operate this unit, if it becomes damaged.
• This unit is intended for indoor use only, use of this product outdoors
voids all warranties.
• During long periods of non-use, disconnect the unitʼs main power.
• Always mount this unit in safe and stable matter.
• Power-supply cords should be routed so that they are not likely to
be walked on or pinched by items placed upon or against them,
paying particular attention to the point they exit from the unit.
• Cleaning -The fixture should be cleaned only as recommended by
the manufacturer. See page 18 for cleaning details.
• Heat -The appliance should be situated away from heat sources
such as radiators, heat registers, stoves, or other appliances (includ-
ing amplifiers) that produce heat.
• The fixture should be serviced by qualified service personnel when:
A. The power-supply cord or the plug has been damaged.
B. Objects have fallen, or liquid has been spilled into the appliance.
C. The appliance has been exposed to rain or water.
D. The appliance does not appear to operate normally or exhibits a
marked change in performance.
Concept 1™ Warranty Registration
The Concept 1™ carries a one yeare (365 days) limited warranty.
Please fill out the enclosed warranty card to validate your purchase.
All returned service items whether under warranty or not, must be
freight pre-paid and accompany a return authorization (R.A.) number.
If the unit is under warranty you must provide a copy of your proof of
purchase invoice. Please contact American DJ® customer support for
a R.A. number.
Concept 1™ Features
Concept 1™ Product Registration
The Concept 1
TM
comes with a 1 year limited warranty. We recom-
mend filling out the warranty registration card that came with your
fixture to validate your warranty. You may also register your product
on-line at www.americandj.com.
Concept 1™ Warning Labels Concept 1™ Warning Labels
© ®American DJ Supply - www.americandj.com - Concept 1™ Instruction Manual Page 6© ®American DJ Supply - www.americandj.com - Concept 1™ Instruction Manual Page 5

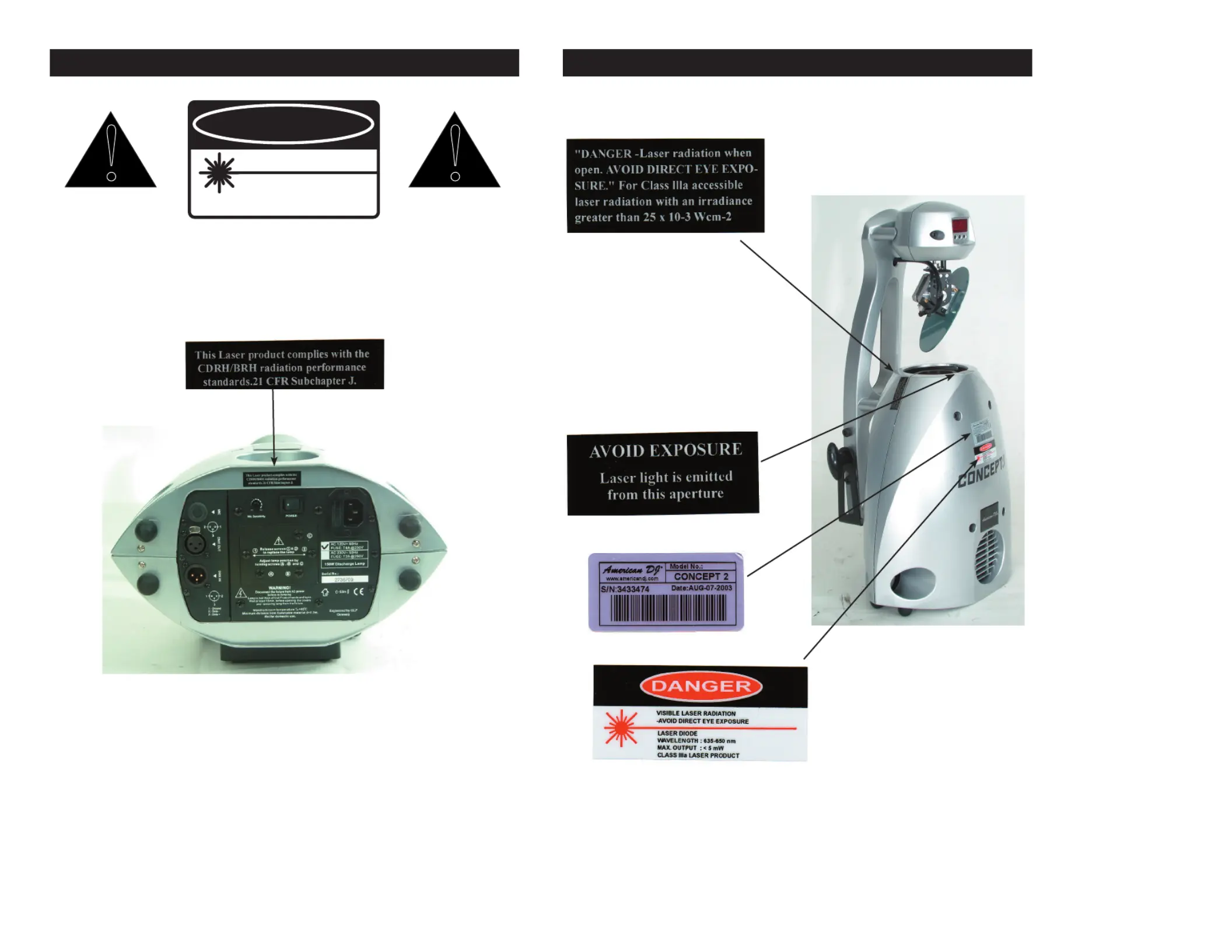

DANGER
VISIBLE LASER RADIATION
-AVOID DIRECT EYE EXPOSURE
LASER DIODE
WAVELENGTH : 532 nm
Max Output : <4.9mW
Class IIIa Laser Product
!
!
CAUTION IMPORTANT! When installing this projector, make sure
that it is mounted in a manner that prevents the audience from
looking directly into the beam, and the beam from striking the
audience.
