User Instructions
© ®American DJ - www.americandj.com - Auto Spot 150™ Instruction Manual Page 2
American DJ®

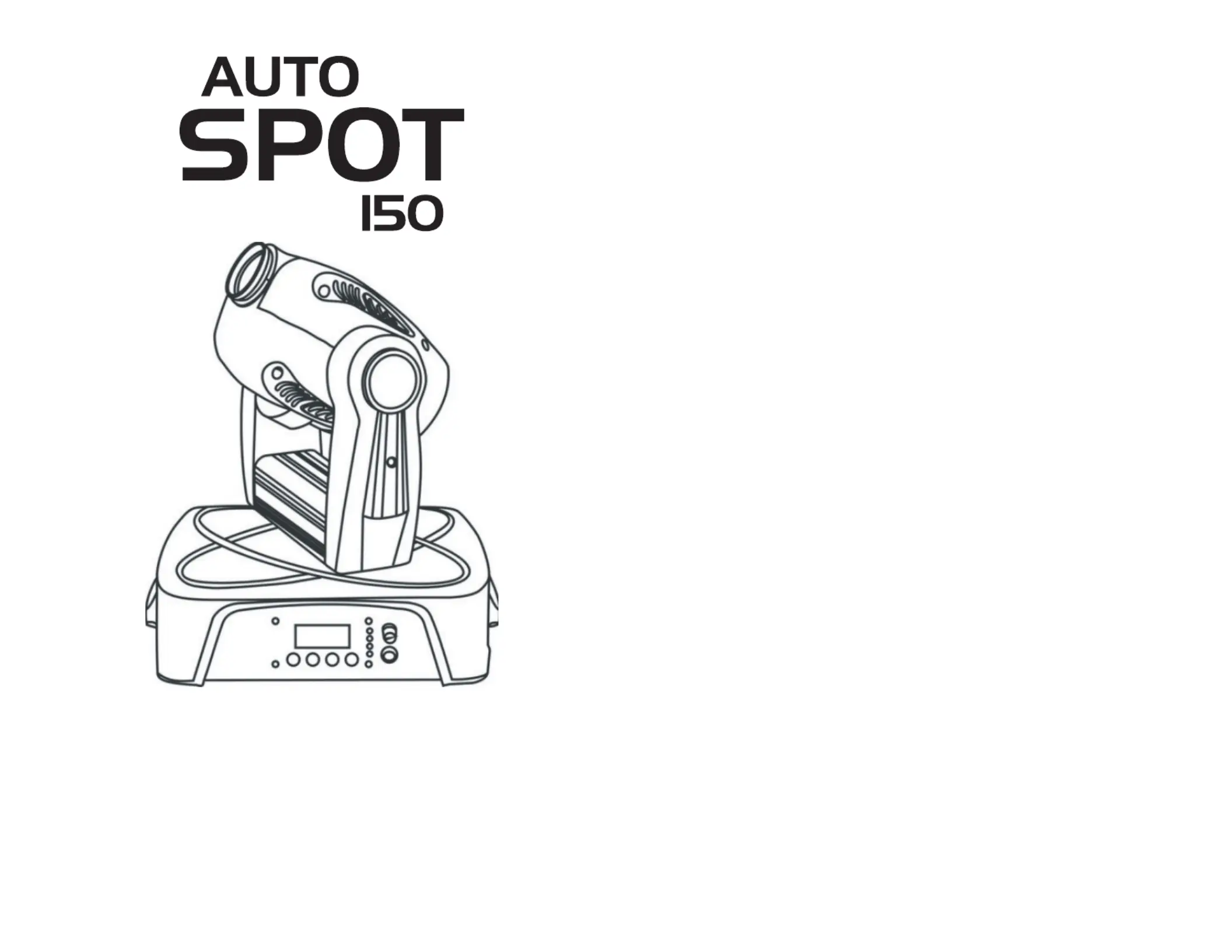

Auto Spot 150™
Table of Contents
Unpacking......................................................................3
Introduction....................................................................3
Customer Support......................................................................3
Safety Precautions......................................................................4
Handling Precautions..................................................................5
Discharge Lamp Warnings..........................................................5
Registration.............................................................6
Features................................................................6
Controls and Functions..............................................................7
Set-Up....................................................................10
System Menu............................................................................13
Operating Modes.......................................................................17
Fuse and Lamp Replacement...................................................19
Cleaning..................................................................21
Trouble Shooting.......................................................................21
DMX Traits.................................................................................22
Warranty.................................................................23
Specifications..............................................................24
Unpacking: Thank you for purchasing the Auto Spot 150™ by Ameri-
can DJ . Every Auto Spot 150™ has been thoroughly tested and has ®
been shipped in perfect operating condition. Carefully check the ship-
ping carton for damage that may have occurred during shipping. If the
carton appears to be damaged, carefully inspect your xture for any
damage and be sure all equipment necessary to operate the unit has
arrived intact. In the event damage has been found or parts are miss-
ing, please contact our toll free customer support number for further
instructions. Please do not return this unit to your dealer without con-
tacting customer support rst.
Introduction: The Auto Spot 150™ is a six channel, moving head,
intelligent DMX fixture. The fixture can operate in three different oper-
ating modes; stand alone, sound-active, or in a Master/Slave con-
figuration. The Auto Spot 150™ comes with several build in programs
and is best used in multiples of four. When used as a stand alone unit
or when used in multiples linked in a master/slave configuration the
optional IRC/2 controller may be used. The optional controller will
access different programs and control a blackout function. For best
results use fog or special effects smoke to enhance the beams pro-
jections. During the initial start-up or use of this product a light
smoke or smell may arise from the unit. This is a normal process
and is cause by the heat associated with the lamp.
Customer Support: American DJ provides a toll free customer ®
support line, to provide help and to answer any question should you
encounter problems during your set up or initial operation. You may
also visit us on the web at www.americandj.com for any comments or
suggestions. Service Hours are Monday through Friday 9:00 a.m. to 5:
00 p.m. Pacic Standard Time.
Voice: (800) 322-6337
Fax: (323) 582-2610
E-mail: support@americandj.com
For service parts visit http://parts.americandj.com
Warning! To prevent or reduce the risk of electrical shock or re, do
not expose this unit to rain or moisture.
Warning! This may cause severe eye damage. Avoid looking directly
into the light source at all times!
Auto Spot 150™ General Information
For Your Own Personal Safety, Please Read and Understand This
Manual Completely Before You Attempt To Install Or Operate
This Unit!
• To reduce the risk of electrical shock or re, do not expose this unit
rain or moisture
• Do not spill water or other liquids into or on to your unit.
• Be sure that the local power outlet match that of the required volt-
age for your unit.
• Do not attempt to operate this unit if the power cord has been
frayed or broken.
• Do not attempt to remove or break off the ground prong from
the electrical cord. This prong is used to reduce the risk of electrical
shock and re in case of an internal short.
• Disconnect from main power before making any type of connection.
• Do not remove the cover under any conditions. There are no user
serviceable parts inside.
• Never operate this unit when it’s cover is removed.
• Always be sure to mount this unit in an area that will allow proper
ventilation. Allow about 6” (15cm) between this device and a wall.
• Do not attempt to operate this unit, if it becomes damaged.
• This unit is intended for indoor use only, use of this product out-
doors voids all warranties.
• Always mount this unit in safe and stable matter.
• Power-supply cords should be routed so that they are not likely to
be walked on or pinched by items placed upon or against them,
paying particular attention to cords at plugs, convenience recep-
tacles, and the point where they exit from the appliance.
• Cleaning -The fixture should be cleaned only as recommended by
the manufacturer. See page 7 for cleaning details.
• Heat -This fixture should be situated away from heat sources such
as radiators, heat registers, stoves, or other appliances (including
amplifiers) that produce heat.
• The fixture should be serviced by qualified service personnel when:
A. Objects have fallen, or liquid has been spilled into the appliance.
B. The appliance has been exposed to rain or water.
C. The appliance does not appear to operate normally or exhibits a
marked change in performance.
Auto Spot 150™ Safety Precautions
© ®American DJ - www.americandj.com - Auto Spot 150™ Instruction Manual Page 4© ®American DJ - www.americandj.com - Auto Spot 150™ Instruction Manual Page 3
© ®American DJ - www.americandj.com - Auto Spot 150™ Instruction Manual Page 5
Auto Spot 150™ Discharge Lamp Warning
This fixture is fitted with a discharge lamp which
is highly susceptible to damage if improperly
handled. Never touch the lamp with your bare fin-
gers as the oil from your hands will shorten lamp
life. Also, never move the fixture until the lamps
have had ample time to cool. Remember, lamps
are not covered under warranty conditions.
• Micro-Stepping Motors for Smooth Color and Gobo Transitions
• DMX-512 Protocol Compatible (Uses Six DMX Channels)
• Independent Gobo and Color Wheels
• 7 Rotating Gobos + Spot - All Replaceable
• 9 Colors, Plus White - Split Color Compatible
• Three Different Operating Modes
Master/Slave
Stand Alone
Sound Active
• Internal Microphone with Volume Sensitivity Knob
• LL-HTI150 Discharge Lamp, 120v/150w, 750 Hours
• Standard 13˚ Focused Beam Angle
• Manual Focus Lens
• Variable Strobe (1-12 fps)
• 540˚ Pan Movement (Full movement in 2.8 seconds)
• 270˚ Tilt Movement (Full movement in 1.6 seconds)
Auto Spot 150™ Features
The Auto Spot 150™ carries a one year limited warranty. Please fill
out the enclosed warranty card to validate your purchase. All returned
service items whether under warranty or not, must be freight pre-paid
and accompany a return authorization (R.A.) number. The R.A. number
must be clearly written on the outside of the return package. A brief
description of the problem as well as the R.A. number must also be
written down on a piece of paper and included in the shipping carton.
If the unit is under warranty, you must provide a copy of your proof of
purchase invoice. You may obtain a R.A. number by contacting our
customer support team on our toll free customer support number. All
packages returned to the service department not displaying a R.A.
number on the outside of the package will be returned to the shipper
at the shippers cost.
Auto Spot 150™ Product
Registration
© ®American DJ - www.americandj.com - Auto Spot 150™ Instruction Manual Page 6
To optimize the performance of this product, please read these operating
instructions carefully to familiarize yourself with the basic operations of
this unit. These instructions contain important safety information regard-
ing the use and maintenance of this unit. Please keep this manual with
the unit, for future reference.
Auto Spot 150™ General Instructions
This unit emits intense UV radiation which is harmful to the eyes and
skin. The intense luminance of the lamp can cause severe damage
to the retina. Never operate this unit without it’s covers, these covers
have been specially designed to shield against UV radiation.
Epileptic Warning: Those suffering from epilepsy should avoid looking
directly into the lamp at all times.
Avoid switch the xture on and off repeatedly in short intervals as this
will reduce lamp life and intensity.
To achieve the intensity associated with discharge lamps, these lamps
use gas sealed in a high pressure environment to emit a brilliant output.
Due to the high pressure involved with the construction of the lamp,
the lamp may explode during prolonged extensive use. This risk is
increased with age, added care is encouraged when dealing with older
lamps. Extreme caution should be used when operated this or any
xture tted with a gas discharge lamp. Never open this unit while in
use.
Caution! There are no user serviceable parts inside this unit. Do not
attempt any repairs yourself, doing so will void your manufactures
warranty. In the unlikely event your unit may require service please
contact your nearest American DJ dealer.®
During operation the housing may become extremely hot. Avoid
touching the unit with bare hands while in use.
American DJ will not accept any liability for any resulting damages ®
caused by the non-observance of this manual or any unauthorized
modication to this unit.
Auto Spot 150™ Handling Precautions
