Overview:

LPD is a convenient way to add a low battery or low power disconnect feature to any 12 or 24VDC power supply

rated up to 8A. 12VDC and 24VDC threshold is adjustable for added flexibility.

Specifications:

Voltage Selection Chart:

Output VoltageSW1SW2

12VDCOFFON

24VDCONOFF

Installation Instructions:

LPD

Low Power Disconnect Module

Input:

• Input voltage: 12VDC or 24VDC max., 8A.

Operating Voltages (factory set):

• Low voltage cutoff:

12VDC: 10.5 volts (+/--- 0.3 volts)

24VDC: 20 volts (+/--- 0.3 volts).

• Restore voltage threshold:

12VDC: 11.5 volts (+/--- 0.3 volts)

24VDC: 23 volts (+/--- 0.3 volts).

Relay:

• Relay contact rating 8A max.

Mechanical:

• Product weight (approx.): 0.12 lbs. (0.05 kg).

• Shipping weight (approx.): 0.15 lbs. (0.07 kg).

Board dimensions (W x L x H):

2” x 2.75” x 1” (50.8mm x 69.9mm x 25.4mm)

--- OUT +

+ INPUT ---

Stand-by

Battery

Battery

Terminals

from Power Supply

---

+

---

+

SW2

12VDC-ON

24VDC-OFF

SW1 12VDC-OFF

24VDC-ON

ON

ON

--- OUT +

+ INPUT ---

DEVICES

(Max. 8A)

DC

OUTPUT

---

+

---

+

SW2

12VDC-ON

24VDC-OFF

SW1 12VDC-OFF

24VDC-ON

ON

ON

Low Battery Disconnect Application:

1. Set the LPD to desired operating voltage via

SW1 & SW2 (see Voltage Selection Chart).

2. Connect power supply Battery Terminals to the

LPD terminals marked [+ INPUT ]---

(Fig. 1 below).

3. Connect the Stand-by Battery to the LPD

terminals marked [ OUT +] ---(Fig. 1 below).

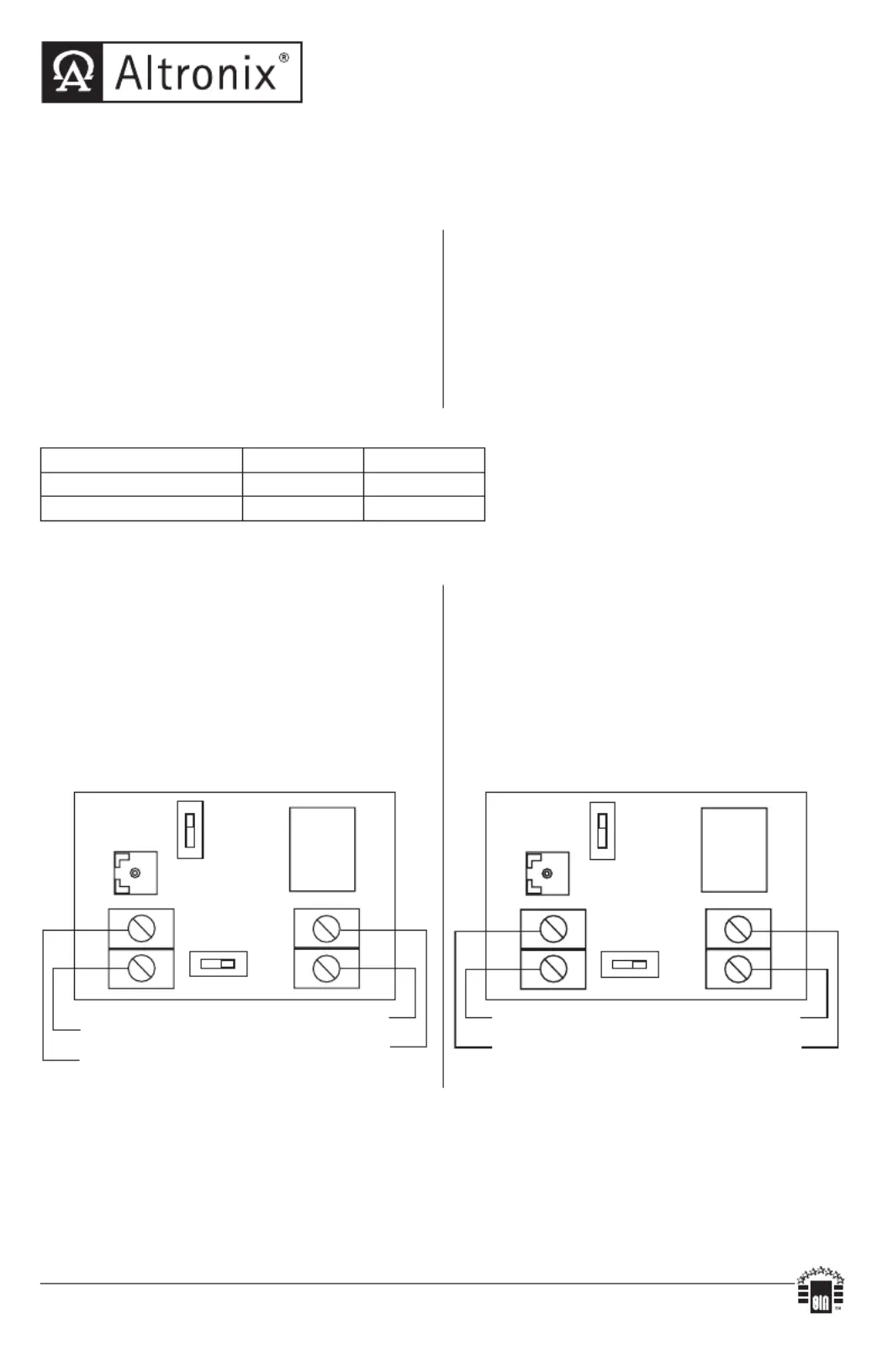

Fig. 1

Low Power Disconnect Application:

1. Set the LPD to desired operating voltage via

SW1 & SW2 (see Voltage Selection Chart).

2. Connect power supply DC Output Terminals to

the LPD terminals marked [+ INPUT ] ---

(Fig. 2 below).

3. Connect the device to be powered to the LPD

terminals marked [ OUT +] ---(Fig. 2 below).

Fig. 2

Altronix is not responsible for any typographical errors.

140 58th Street, Brooklyn, New York 11220 USA | phone: 718-567-8181 | fax: 718-567-9056

website: www.altronix.com | e-mail: [email protected] | Lifetime Warranty | Made in U.S.A.

IILPD - Rev. 082016 I01Q
