M-SQ-SDANTE Fitting Note
AP11431 Issue 2
SQ Dante Option Card
M-SQ-SDANTE is one of several audio networking options that can be fitted to
an Allen & Heath SQ mixer. It provides a 64x64ch 48/96kHz interface to a Dante
network.
Fitting the card
1. Switch the system off.
2. Use a Torx T8 driver to remove the 2 screws securing the I/O Port
blank panel to the SQ mixer.
3. Slide the card into the slot and press it firmly into the mating
connector.
4. Refit the 2 screws to secure the card.
Control Network Bridge
Go to the Setup / Audio / I/O Port screen to switch on Control
Network Bridge. This connects the SQ Network Port and I/O Port
control networks.
The Control Network Bridge does not pass audio.
Connecting to a network that includes a DHCP server
(such as a router) can change the IP address of the Dante
card. Therefore it is recommended that the network is
only bridged when necessary.
Software and firmware
Download and install the latest version of SQ firmware:
http://www.allen-heath.com/sq-software
M-SQ-SDANTE requires SQ firmware V1.2.2 or above.
Go to the Audinate website to learn more about Dante, and to download software
including Dante Controller and Dante Virtual Soundcard (DVS):
http://www.audinate.com/
Front panel
Setting clock and patching signals
Use the SQ I/O screen to patch signals from or to the I/O Port.
Use the Setup / Audio / Audio Sync screen to select the clock source for the
mixer. Typically, this is set to Internal, unless the mixer is syncing from the Dante
card (clock slave), for example in a digital split setup.
For more information on SQ setup and functions please
refer to the SQ Firmware Reference Guide available for
download from www.allen-heath.com.
Use Dante Controller to patch signals to/from other devices, and configure the
sample rate and clock settings for the card.
If you set the mixer clock to Internal, select Enable Sync
To External. To clock other Dante devices to this option
card, select Preferred Master.
A limited one year manufacturer’s warranty applies to this product, the conditions
of which can be found at: www.allen-heath.com/legal.
This product complies with the European Electromagnetic
Compatibility directive 2014/30/EU and the European Low Voltage
directive 2014/35/EU.
Copyright © 2018 Allen & Heath. All rights reserved.
ALLEN&HEATH
Allen & Heath Limited, Kernick Industrial Estate, Penryn, Cornwall, TR10 9LU, UK
http://www.allen-heath.com

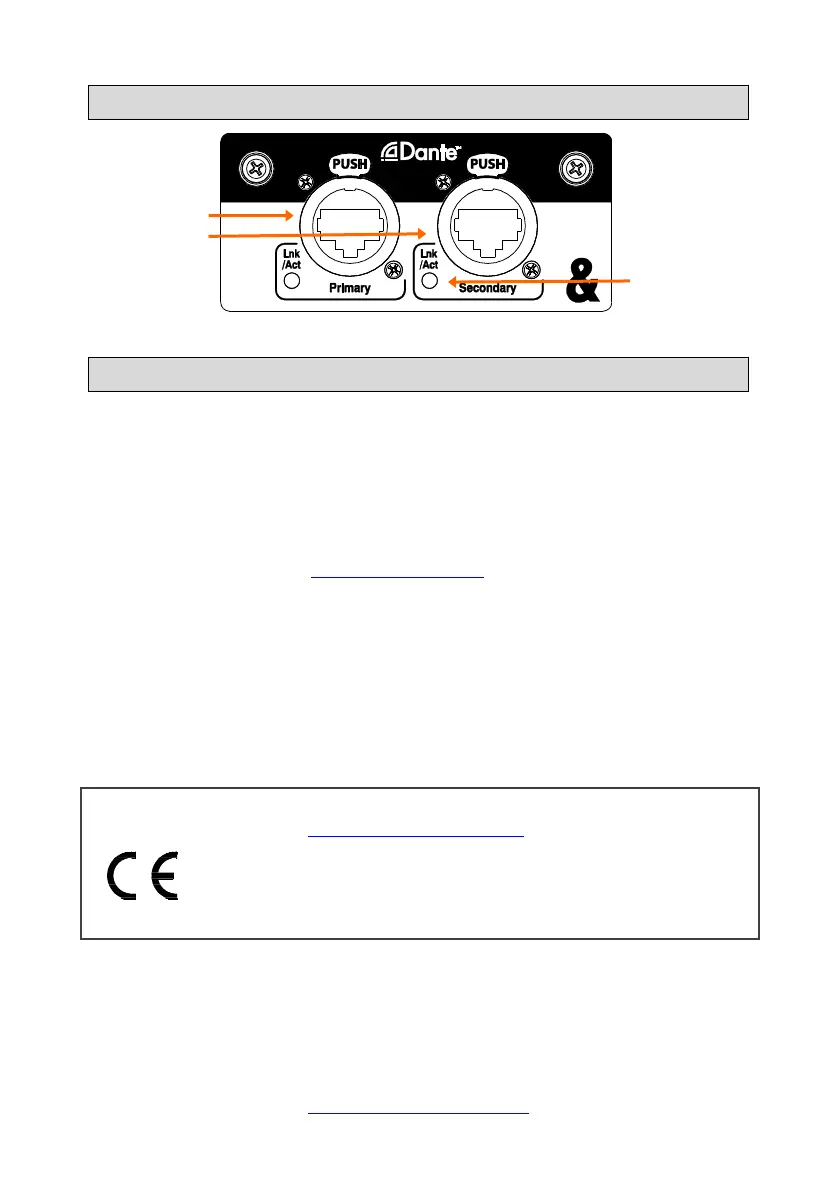

Link Status
Flashes to indicate
network activity
Dante ports
A built-in Gigabit
switch with 2 locking
EtherCon ports for
redundant or switch
mode operation
