Instruction Guide

SSxB Series/ Single Phase

Parts List:

1 x SureStart Soft starter

1 x Red Lead

1 x Blue Wire

1 x Black Wire

Field Wiring Specifications:

Wire Range:8 to 12 AWG Cu, stranded, for terminals (Run Winding (R) and Active(T2))

12 to 16 AWG Cu, stranded, for terminals (Run Capacitor (RC), Start Winding (S), and Compressor/Motor Common (C), these are supplied)

Tightening Torque: 11.5LBSIN LARGE TERMINALS,4.5LBSIN SMALL TERMINALS.

Field wiring conductors shall be rated 167°F [75°C]

Minimum end use enclosure size: 10” x 8” x 6”

LED Flash Codes:

1/2

DMSxxx

Instruction Guide

1 x Brown Wire

1 x Mounting Bracket

1 x Green Connector

1 x Pack of two Ferrules

Caution& Warning:

1All voltage to equipment MUST be disconnected before removing any devices.

2Allow 2 minutes to discharge run capacitor before disconnecting.

3Do not swap the Run & Start Windings.

4Prior to installation, be sure all start capacitors & start relays, along with hard-starters and/or any other start-assist devices, are removed.

5The start capacitor is built into the soft starter.

6Loose terminals can lead to heating & subsequent damage to the soft starter. As per, UL508 standard, ensure below tightening torques.

7OPENING OF THE SOFT STARTER UNIT WILL VOID THE WARRANTY!

Flash CodeTime to re-start attemptDefinition

Low Voltage

Lockout on 3 failed starts

Lockout on overcurrent

Cycle delay / Faults

Rapid Flash (10 / 1 sec)

Triple Flash (3 / 3 secs)

Slow Flash (1 / 3 secs)

Steady Flash (1 / 1 sec

)

3 min

50 min

10 min

3 min

[NOTE: LED fault indicator remains off in normal running mode.]

SureStart

Installation

Sample Wiring Schematic

•

CRIMP CORRECT SIZED FERRULES TO ENSURE PROPER TERMINATION

•

INSERTION LENGTH OF FERRULE“D”: 11 ± 1 MM 0.43 ±0.04”

•

CABLE BEND RADIUS“R” > 38MM1.5” MINIMUM

SureStart® 115/230V HVAC installation – SSxB Series:

This model SureStart® functions only as a soft starter, a contactor is still required. This model can be suitable for a wide range of applications. Some

degree of care is needed to determine the correct wiring.

* ST Start Thermistor

* SR Start Relay

* SC Start Capacitor

Note: If installed, remove all of the above

devices(May be factory installed)

L

T

LT

Eltwin Group

sales@eltwin-hyper.com

eltwin-hyper.com

Technical Contact: techsupport@eltwin-hyper.com

AG

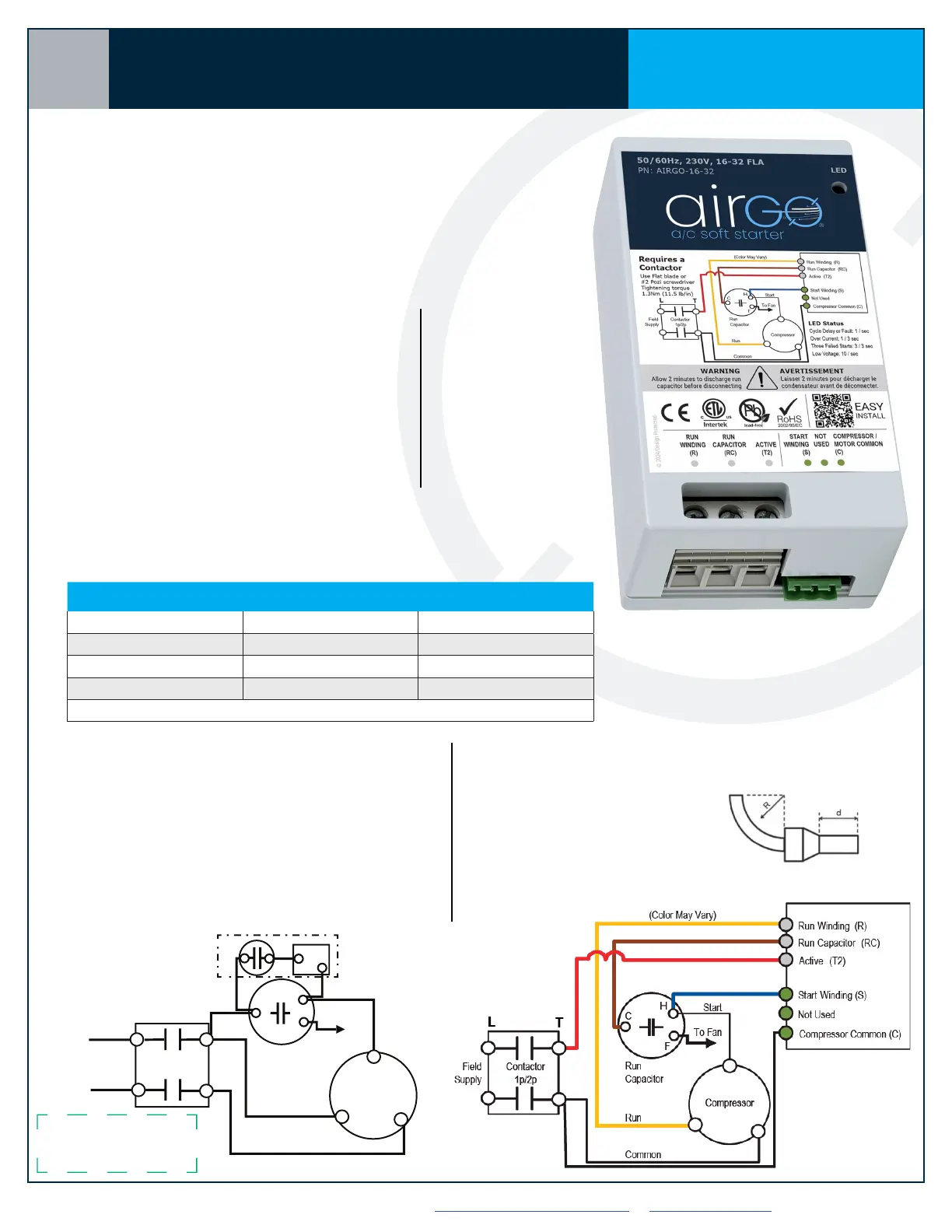

AIRGO SOFT START 120/240V

MES Group, LLC 414-507-7661 [email protected]installcentral.com

INSTRUCTION GUIDE | SINGLE PHASE

LED FLASH CODES:

FIELD WIRING SPECIFICATIONS:

Wire Range: 8 to 12 AWG Cu, stranded, for terminals (Run

Winding (R) and Active(T2)) 12 to 16 AWG Cu, stranded,

for terminals (Run Capacitor (RC), Start Winding (S), and

Compressor/Motor Common (C), these are supplied)

Tightening Torque: 11.5 LBS-IN LARGE TERMINALS, 4.5LBS-

IN SMALL TERMINALS.

Field wiring conductors shall be rated 167°F [75°C]

Minimum end use enclosure size: 10” x 8” x 6”

• CRIMP CORRECT SIZED

FERRULES TO ENSURE PROPER

TERMINATION

• INSERTION LENGTH OF FERRULE

“D”: 11 ± 1 MM (0.43 ±0.04”)

• CABLE BEND RADIUS “R” > 38MM

(1.5”) MINIMUM

APPLICATIONS

• Residential AC

• Commercial AC

• Marine

• RV

PARTS LIST:

1 x AirGo soft starter

1 x Red Wire

1 x Blue Wire

1 x Black Wire

1 x Brown Wire

1 x Mounting Bracket

1 x Green Connector

1 x Pack of Two Ferrules

AIRGO 120/240 HVAC INSTALLATION:

The AirGo a/c soft starter functions only as a soft starter, a contactor

is still required. this model is suitable for a wide range of applications.

Some degree of care is needed to determine correct wiring.

CAUTION/WARNING:

1. All voltage to equipment MUST be disconnected

before removing any devices.

2. Allow 2 minutes to discharge run capacitor before

disconnecting.

3. Do not swap the Run & Start Windings.

4. Prior to installation, be sure all start capacitors &

start relays, along with hard-starters and/or any

other start-assist devices, are removed.

5. The start capacitor is built into the soft starter.

6. Loose terminals can lead to heating & subsequent

damage to the soft starter. As per, UL508 standard,

ensure below tightening torques.

7. OPENING OF THE SOFT STARTER UNIT WILL VOID

THE WARRANTY!

Flash CodeDenitionTime to re-start attempt

Rapid Flash (10/1 sec)Low voltage3 minutes

Triple Flash (3/3 sec)Lockout on 3 failed starts50 minutes

Slow Flash (1/3 sec)Lockout on overcurrent10 minutes

Steady Flash (1/1 sec)Cycle delay / faults3 minutes

Note: LED fault indicator remains o in normal running mode

Sample schematic is not a reection of all HVACR units in

the eld. If the wiring differs from the base schematic or if it

needs to be wired through a control board, please contact us:

[email protected] or 262-893-4375
