WISE-2210 Startup Manual 1

Thank you for purchasing the WISE-2210 module. This

quick start guide is intended to help you deploy your new

module. The guide contains basic information on the power

and application wiring.

Should you require additional instructions, please refer to

the user manual.

WISE-2210 is self-powered sensor node, power source

comes from an analog input which is connected to a 0~100

mA current transformer. In other words, WISE-2210 mea-

sures data and gets power current from connected current

transformer.

•1 x WISE-2210 module

•1 x Mounting bracket

•1 x Quick start manual

•1x China RoHS declaration (UA series only)

*Antenna should be ordered respectively per required

frequency range.

WISE-2210

LPWAN Self-powered Sensor Node

Startup Manual

Analog Input current: Alternating Current

(0~100 mA)

1. Connect the module to your computer via the micro-

USB port.

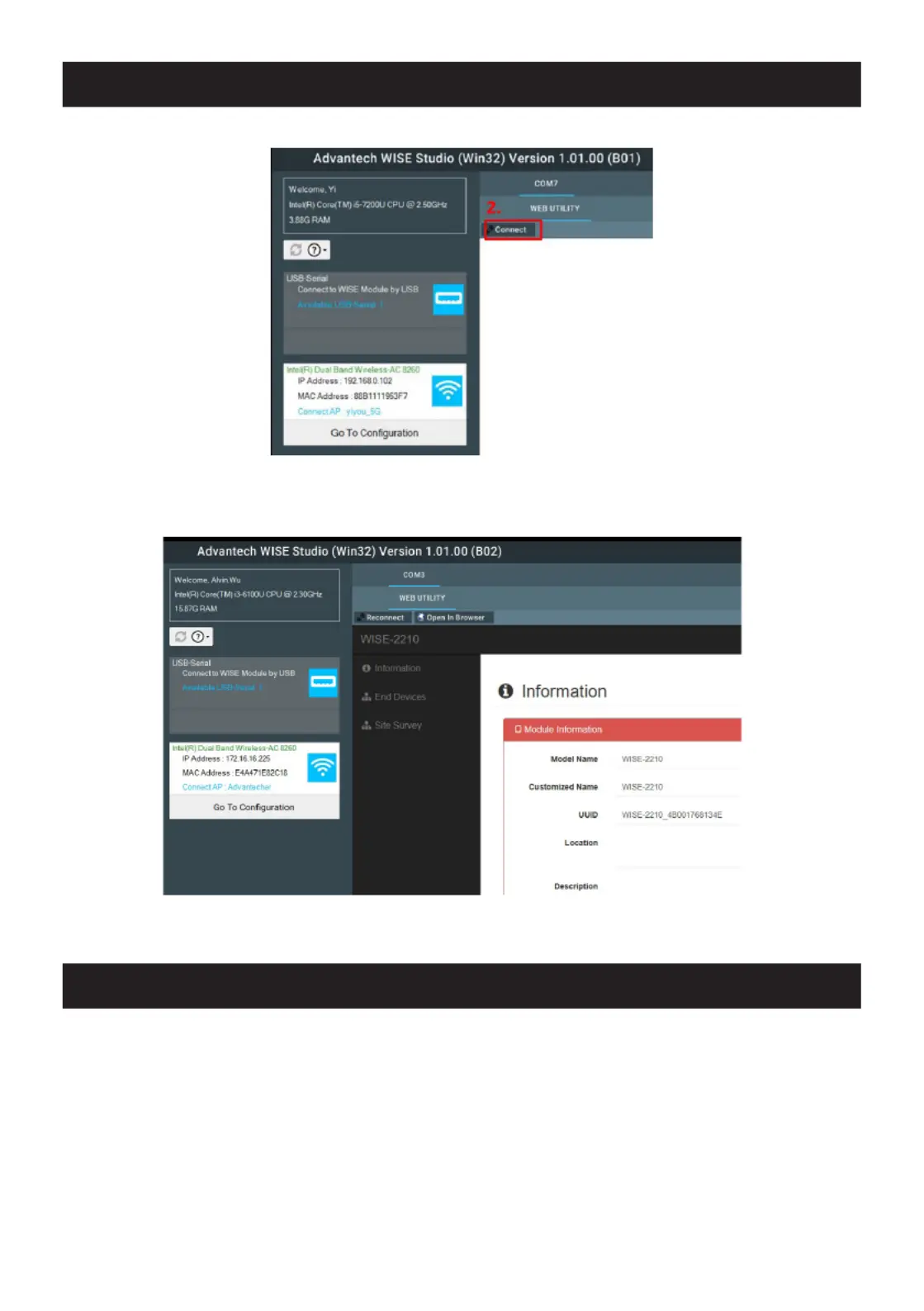

2. Open WISE Studio and click Go To Conguration.

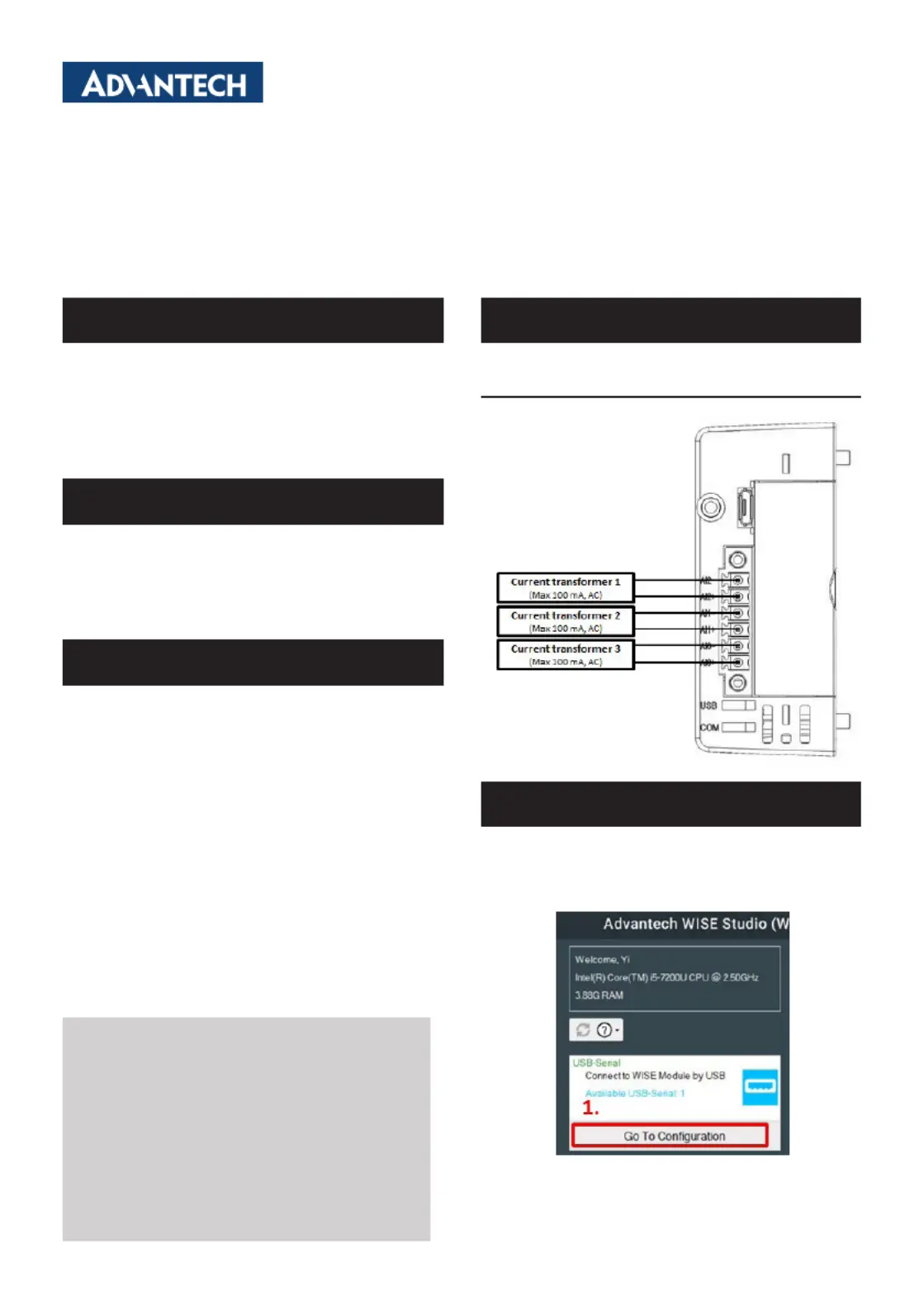

I/O Pinout & Application Wiring Overview

For more information on this and other Advantech

products, please visit our website at:

http://www.advantech.com

For technical support and service:

https://www.advantech.com/support/

This startup manual is for WISE-2210.

Part No. 2043221000

Printed in Taiwan

1st Edition

May 2019

Input Power Requirements

Packaging List

Quick Start
