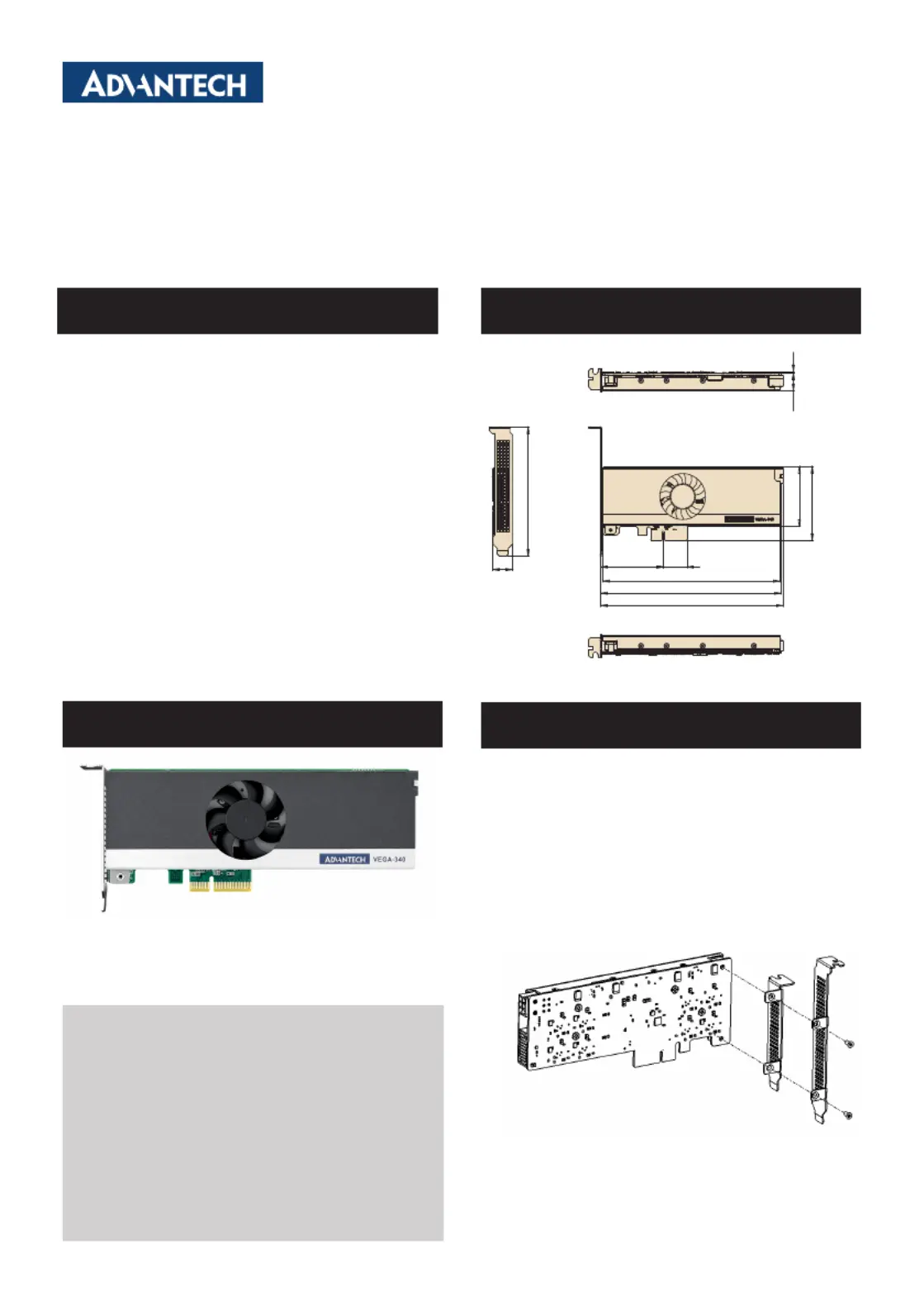

VEGA-340 Startup Manual 1

Before you start installing your card, please make sure that

the following items have been shipped:

•1 x VEGA-340 card with heat sink and half height PCIe

bracket installed

•1 x Full height PCIe bracket

•1 x Startup manual

•1 x Edge AI suite download card

•1 x China RoHS

Note: Regarding OpenVINO, you can go to: https://

software.intel.com/en-us/openvino-toolkit to

download the latest version, or you can down-

load Edge AI Suite through download card in

VEGA-340 packing list. Edge AI Suite supports

the following operating system: Windows 10

Enterprise 64-bit version 1809.

If any of these items are missing or damaged, please con-

tact your distributor or sales representative immediately.

VEGA-340

Intel

TM

Movidius

TM

Myriad X Edge AI Module

Startup Manual

1. Identify a suitable PCIe p1-x4 Gen 2 slot on the target

platform.

2. If the slot on the target platform requires full height

PCIe bracket, please follow the below instructions and

guretochangethebracketonVEGA-340:

(2-1) Unscrew the 2 screws on the half height bracket

originally secured to VEGA-340.

(2-2) Replace half height bracket with full height bracket

in the packing, and secure the bracket to VEGA-340

with the 2 screws used in step (2-1).

3. Check PCIe generation of host platform. If it is higher

than Gen 2, please set “PCIe maximum speed setting”

inBIOStobexedat“Gen2”forusingVEGA-340.

Unit: mm

121.02

18.91

169.55

171.07

166.45

56.15

22.1059.05

68.90

1.9016.11

Dimensions Packing List

For more information on this and other Advantech

products, please visit our website at:

http://www.advantech.com

http://www.advantech.com/eplatform

For technical support and service, please visit our

support website at:

http://support.advantech.com

This manual is for the VEGA-340.

Part No. 2046034000

Printed in China

1st Edition

Feb 2020

Product Picture

VEGA-340 Installation

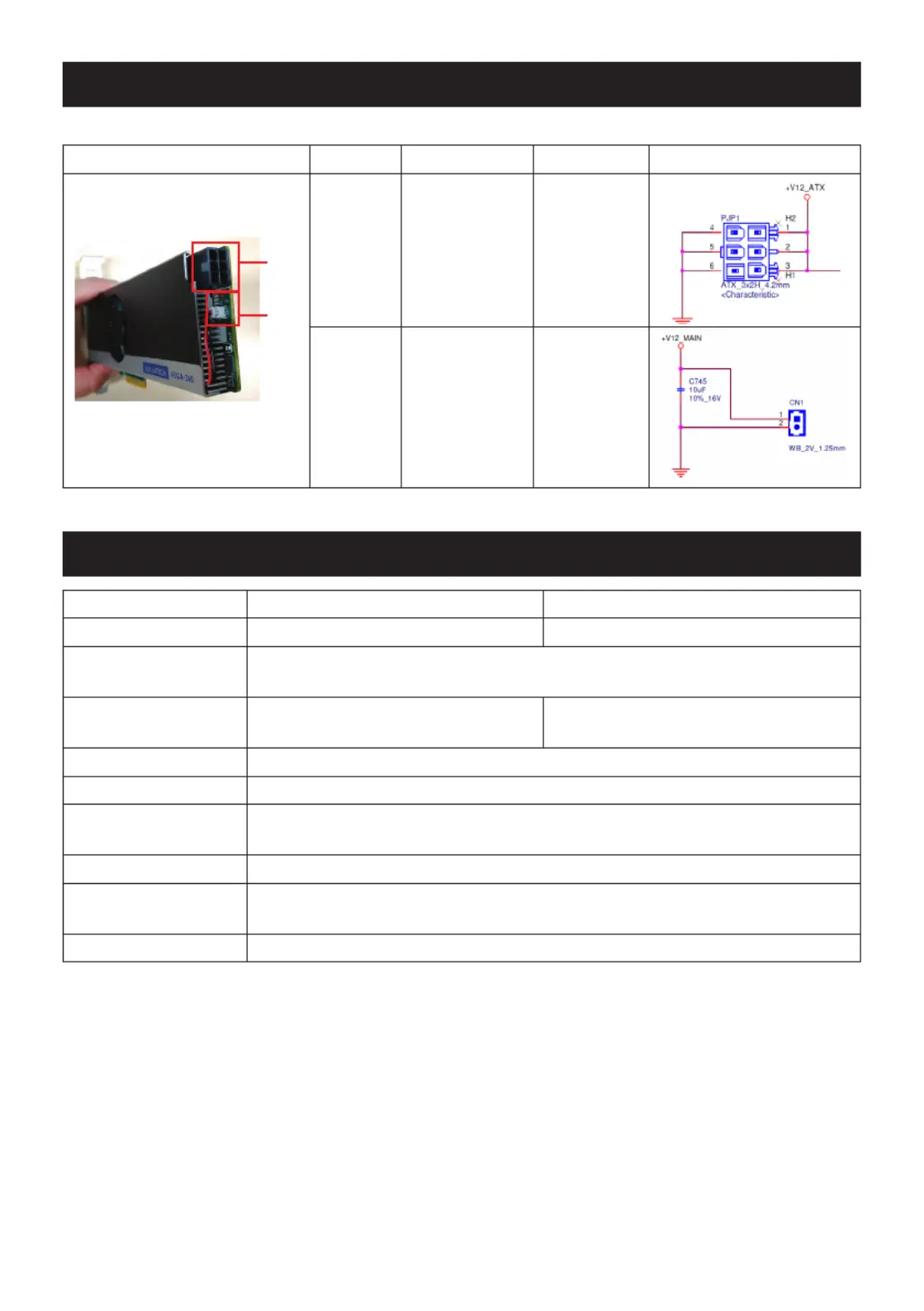

Product specificaties
