USB-5820 Startup Manual 1

Before installation, please ensure that the following items

are included with the product:

1. 1 x USB-5820 module

2. 3 x Terminal blocks

3. 1 x USB-5820 startup manual

4. 1 x USB 3.0 lockable cable (1 m)

If any of the above items are missing or damaged, contact

your distributor or sales representative immediately.

For more detailed information regarding this product, please

download the USB-5820 user manual from the Advantech

website.

Advantech’s USB-5820 is an industrial-grade isolated ana-

log output USB 3.0 I/O module. To ensure easy installation

in cabinet computers, USB-5820 modules are compact and

equipped with a DIN-rail mount kit. The built-in USB hub can

support a daisy-chain topology, while Euro-type pluggable

terminal blocks and LED indicators can facilitate congura-

tion and maintenance.

USB-5820

4-Channel, 16-Bit, 200 kS/s Isolated Analog

Output USB 3.0 I/O Module

Startup Manual

General

•Connectors:

1 x 10-pin terminal block (3.81 mm, A/O)

2 x 3-pin screw terminal blocks (3.81 mm, power)

1 x USB 3.0 type A (downstream port)

1 x USB 3.0 type B (upstream port)

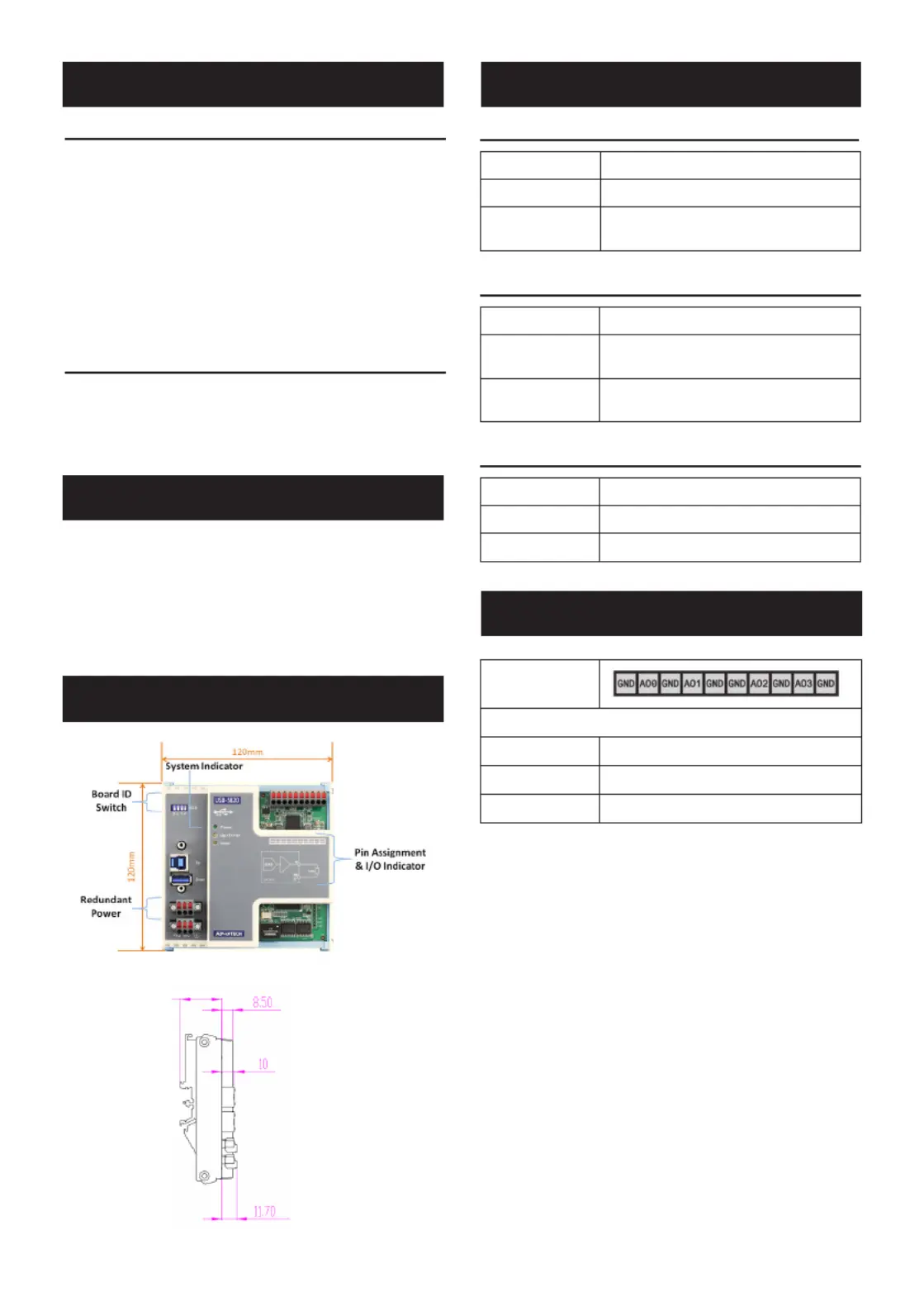

•Dimensions:

120 x 120 x 40 mm

3

(4.72 x 4.72 x 1.57 in

3

)

•OperatingTemperature: 0 ~ 60 °C (32 ~ 140 °F)

•StorageTemperature:-40 ~ 70 °C (-40 ~ 158 °F)

•StorageHumidity:5 ~ 95% RH (non-condensing)

•PowerSupply:10 ~ 30 V

DC

•Interface: USB 3.0

•DataTransferRates: 5 Gbps

•PowerConsumption:

100 mA typ./130 mA max. @24 V external power

450 mA typ./770 mA max. @5 V bus power

•ESDProtection:

Air: ±8 kV

Contact: ±6 kV

•DCSurgeProtection: 2 kV

AnalogOutput

•Channels:4

•Resolution:16 bits

•OutputVoltageRange:0 ~ 5 V, 0 ~ 10 V, ±5 V, ±10 V

•OutputCurrentRange:

0 ~ 20 mA, 4 ~ 20 mA (source type)

•Load:

> 1 kΩ (voltage output) 

< 625 Ω (current output)

•OutputError:< ±0.1% of full-scale range

•IsolationProtection:2,500 V

DC

•UpdatingRate:

200/n kS/s, where n is the number of enabled channels

(n = 1 ~ 4)

•SlewRate:1 V/µs

1. Install the SDK and drivers downloaded from the

Advantech website.

2. Touch the metal case of the computer to discharge any

static electricity that may be in your body.

3. Insert the USB module into the designated USB port.

Use caution when inserting the module to avoid damag-

ing the components due to excessive force.

PackingList

For more information about this or other Advantech

products, visit our website at

http://www.advantech.com

For driver/SDK downloads and technical support

services, visit our support website at

http://support.advantech.com

This manual is for USB-5820.

Part No. 2041582000

Printed in China

Edition 1

April 2019

Specications

Overview

UserManual

InstallationInstructions
