Pagina 1/10

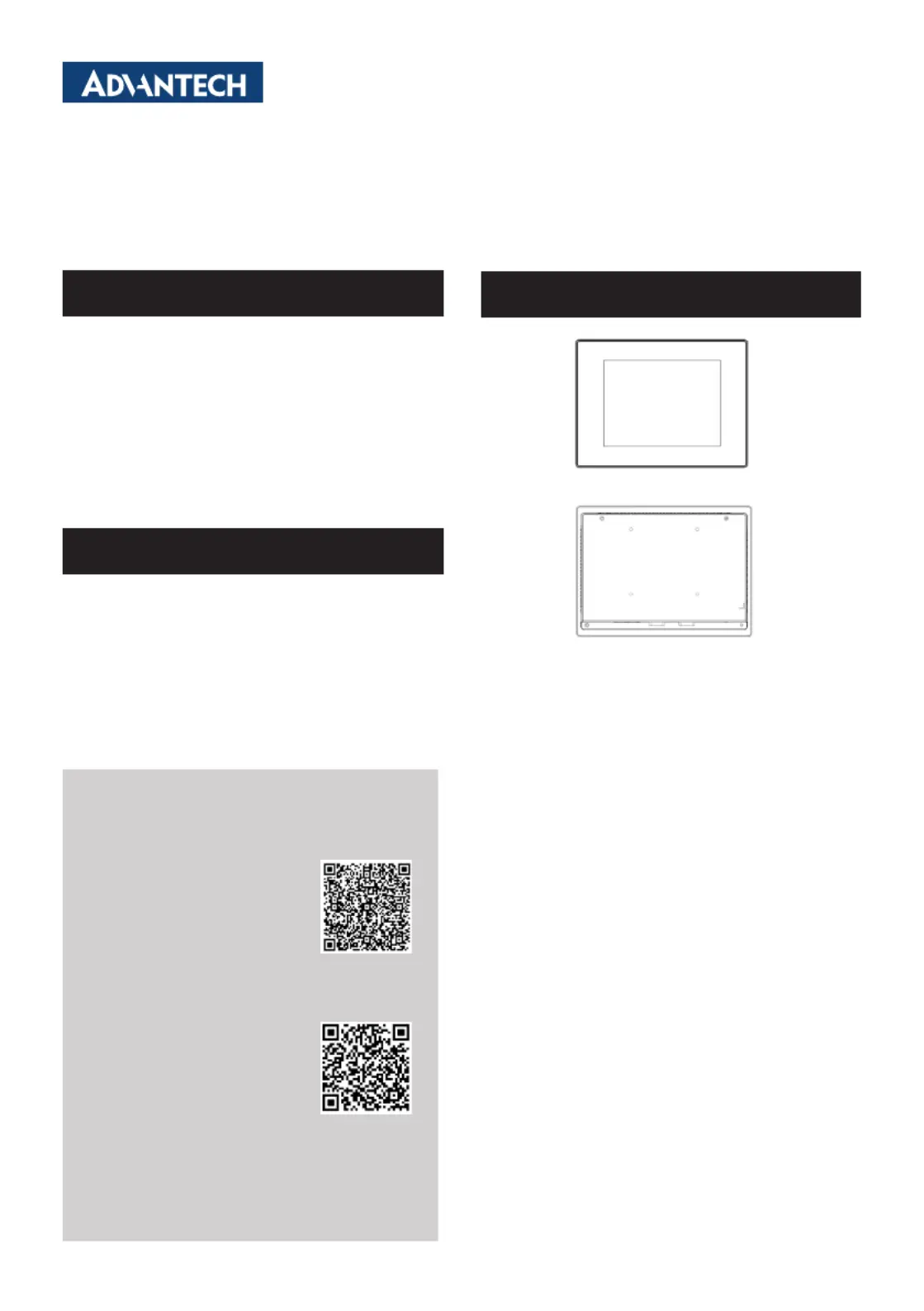

PPC-306 EHL Series Startup Manual 1
Before installation, ensure that the following items are
included with the product:
• 1 x Panel PC
• 1 x PPC-306 EHL startup manual
• 1 x Phoenix connector
• 4 x Mount brackets
• 4 x Mount screws
If any of the above items are missing or damaged, contact
your distributor or sales representative immediately.
Software Installation
Before installing software on the panel PC, install the cor-
responding drivers to ensure full functionality.
All drivers can be downloaded from the Advantech website
at http://www.advantech.com.
PPC-306 EHL
6.5” Fanless Panel PC with Intel
®
Celeron
®
N6210
Processor
Startup Manual
PPC-306 Front View
PPC-306 Rear View
Packing List
For more information about this product, visit the
Advantech website at
https://www.advantech.com/en/products/
general-purpose/sub_b4b1d255-3d7c-4edb-ae84-
5f9f2ab56107
For technical support and customer service, visit the
Advantech support website at
https://www.advantech.com/en/support/
This manual is for the PPC-306 EHL series, Rev. A0,
models.
Part No. 2044030600
Printed in China
Edition 1
August.2023
Appearance
2 PPC-306 EHL Series Startup Manual
Specications
LCD Panel 6.5”
Display Type TFT LCD (with LED backlight)
Max. Resolution 640 x 480
Brightness 800 cd/m
2
Viewing Angle 89 (left), 89 (right), 89 (up), 89 (down)
Contrast 1000
Backlight Lifetime 70,000 hr (min.)
Touchscreen Type 5-wire resistive touch
LightTransmission 80±5% at 550 nm wavelength
Controller USB interface
Durability (Touches) Greater than 35 million touches in one location without failure
Enclosure Aluminum
Processor Intel
®
Celeron
®
N6210 dual core
Memory 1 x SO-DIMM DDR4 3200MHz (max. 32GB)
Storage 1 x M.2 slot: M key for storage (SATA only, 2242)
Network (LAN) 2 x 10/100/1000/2500 Mbps Ethernet (Intel I226-LM)
I/O Ports
2 x Serial ports: 1 x RS-232, 1x RS-232/422/485 (Adjustable through BIOS)
1 x USB 2.0, 2 x USB 3.0
Expansion 1 x M.2 slot: E key for wireless module (Type: 2230)
Watchdog Timer 255 timer levels, set up by software
OS Support Microsoft
®
Win10 IoT LTSC, Win10, Win11, Linux (Ubuntu), Android 12
Power Supply 12-24Vdc
Power Consumption 30W (Burn-in test 8.1 in Windows 10, 64-bit)
OperatingTemperature -10 ~ 50 °C (14 ~ 122 °F)
Storage Temperature -30 ~ 60 °C (-22 ~ 140 °F)
Relative Humidity 10 ~ 95% @ 40 °C (non-condensing)
Shock Tolerance Operating 10 G peak acceleration (11 ms duration), follow IEC 60068-2-27
Vibration Tolerance Operating Random Vibration Test; 2Grms @with M.2, follow IEC 60068-2-64
Safety and EMC CB, UL, CCC, UKCA , CE, FCC Class B, BSMI, UKCA, VCCI, EN60601-1-2
Dimensions 197.6 x 150.6 x 41 mm (7.8 x 5.9 x 1.6 in)
Weight 1.5 kg (3.30 lb)
Note: Test conditions for the power consumption values provided above were as follows:
Memory: 16GB DDR4 3200
M.2: 64G
OS: Window 10 (64 bit)
Testing Software: Burn-In Test 8.1
PPC-306 EHL Series Startup Manual 3

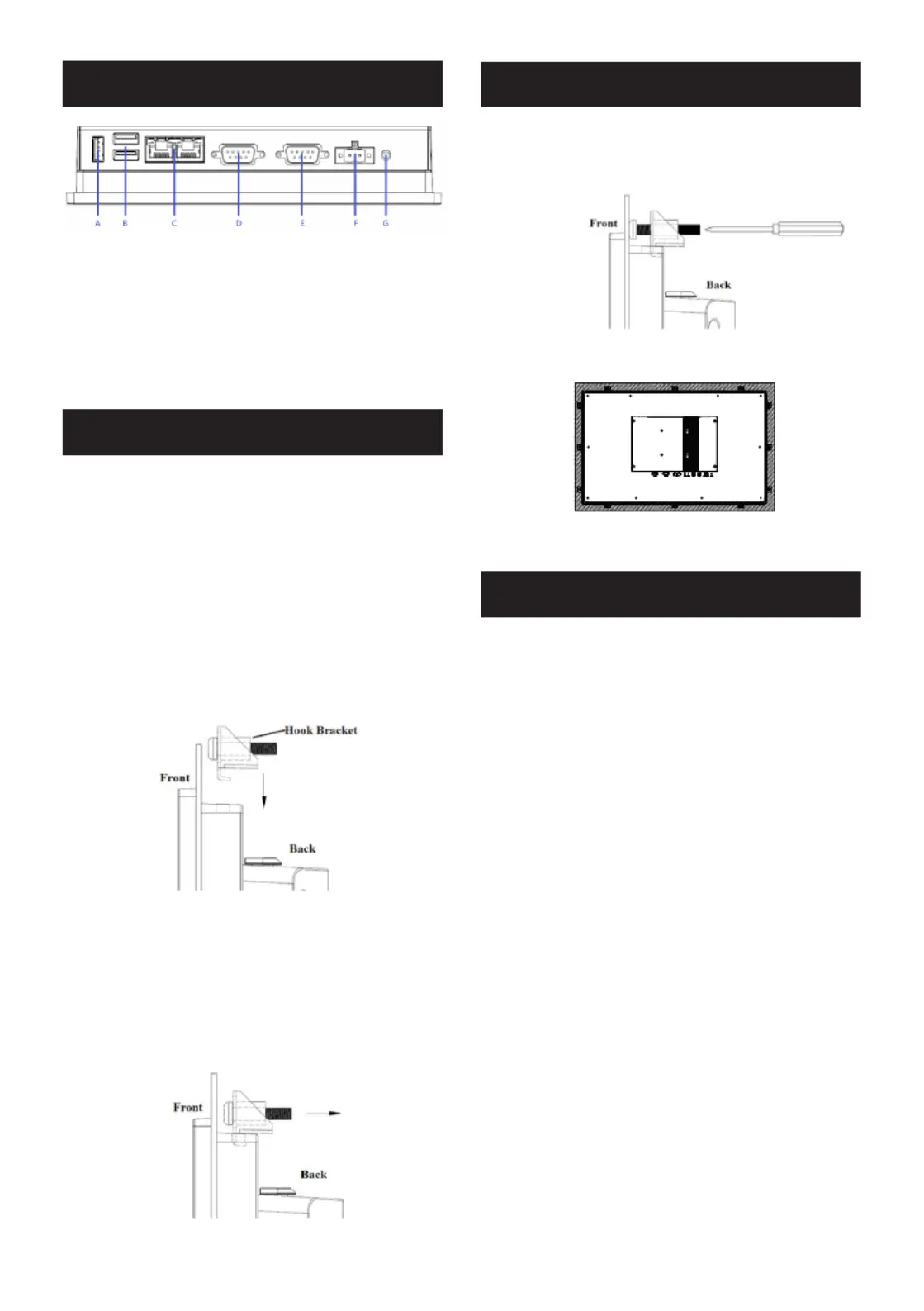

I/O Layout
A. USB 2.0 B. 2 x USB 3.0
C. 2 x RJ45 LAN D. COM2 RS232/422/485
E. COM1 RS232 F. DC-In
G. Power Switch
VESA mount screws: 4 x M4 screws
Screw length: 8 mm/0.31 in max.
Tomounttheat-bezelpanelPC,followthestepsoutlined
below.
Veuillez suivre les étapes ci-dessous pour monter le pan-
neau PC à cadre plate.
1. Prepare a panel cutout according to the panel cutout
dimensions below.
Veuillez préparer une découpe de panneau selon des
dimensions du panneau PC.
PPC-306 EHL: 189 x 136.5 mm/7.44 x 5.37 in
2. Insert the panel PC into the cutout. Retrieve the hook
brackets and M6 x 21L screws from the accessory box.
Veuillez installer le panneau PC dans la découpe.
Récupérez les crochets et les vis M6 x 21L de la boîte
à accessoires.
Hook Brackets for Panel Mounting
3. Insert the hook brackets into the holes as shown in
the previous image. Then move the hook brackets in
thedirectionofthearrowshowninthegurebelowto
lock them in place. Hang the panel PC from the hook
brackets.
Veuillez insérer les crochets dans les trous dans le
sens de la èche indiquée dans la gure ci-dessous.
Accrochez ensuite le panneau PC aux crochets.
Fasten the Hook Bracket
Panel Mounting
4. TightenthehookbracketscrewstoaxthepanelPC
in place.
VeuillezserrerlesvispourxerlepanneauPCen
place.
Fasten the Hook Bracket
Panel Mount Rear View
1. Read these safety instructions carefully.
Veuillez lire attentivement ce manuel d’instructions de
sécurité.
2. Retain this startup manual for future reference.
Veuillez conserver ce manuel d’instructions pour
référence ultérieure.
3. Disconnect the equipment from all power outlets before
cleaning. Use only a damp cloth for cleaning. Do not
use liquid or spray detergents.
Débranchez l’appareil de toutes les prises de courant
avant le nettoyage. Nettoyez-le uniquement à l’aide
d’un chion humide. Ne pas utiliser de détergents
liquides ou pulvérisateurs.
4. For pluggable equipment, the power outlet socket must
be located near the equipment and easily accessible.
Pour les appareils enchables, la prise de courant doit
être placée près de l’appareil et facilement accessible.
5. Protect the equipment from humidity.
Protégez l’appareil contre l’humidité.
6. Place the equipment on a reliable surface during instal-
lation. Dropping or letting the equipment fall may cause
damage.
Placez l’appareil sur une surface able pendant
l’installation. L’abandon ou la chute de l’appareil pour-
rait causer des dommages.
7. The openings on the enclosure are for air convection.
Protect the equipment from overheating. Do not cover
the openings.
Les ouvertures du boîtier sont pour la convection d’air.
Protégez l’appareil contre la surchaue. Ne couvrez
pas les ouvertures.
Panel Mounting (Cont.)
Safety Instructions
