PCE-5B18-88B1E (PCE-7B19-88B1E) Startup Manual 1
Before you begin installing your card, please make sure that
the following items have been shipped:
• One 2 Ports USB Cable p/n: 1700002204
• PCE-5B18-88B1E (PCE-7B19-88B1E)
Startup Manual
• M4*6*0.7 Round Screws (15pcs) p/n: 1939000410
• 2 Year Quality Warranty Card p/n: 2190000902
If any of these items are missing or damaged, please con-
tact your distributor or sales representative immediately.
(18)-slot BP for 20-slot Chassis, 1 x PICMIG 1.3, 2 x (1)
PCIe, 8 x 64-bit PCI-X, 8 x 32-bit PCI
Startup Manual
Standard Functions
• PICMIG 1.3 slots:
PCE-7B19-88 supports PCE-7xxx CPU boards
PCE-5B18-88 supports PCE-5xxx CPU boards
• PCIe slots:
PCE-7B19-88 supports two PCIe p1-x8 slots
PCE-5B18-88 supports one PCIe x16 slot
• 64-bit PCI-X slots:
Eight 64 Bit / 66 MHz PCI-X slots
• 32-bit PCI slots:
Eight 32 Bit / 33 MHz PCI slots
Bridge Chip: Pericom PI7C8150BMAE
• USB (2.0) ports:
Four Universal Serial Bus ports as pin headers
Mechanical and Environmental
• Dimensions: 327.66 x 417 mm
• Power supply voltage: +12 V, +5 V, -12 V, -5 V,
+3.3 V, +5 VSBY
• Power requirements: Refer to the CPU board, add-
on card & peripherals
• Operating temperature: 0 ~ 60 °C
• Weight: 1.7 kg (weight of board)
Specications Packing List
For more information on this and other Advantech
products, please visit our website at:
http://www.advantech.com
http://www.advantech.com/eplatform
For technical support and service, please visit our
support website at:
http://support.advantech.com/
This manual is for the PCE-5B18-88B1E (PCE-7B19-
88B1E) series.
Part No. 20027B1902
Printed in China
3rd Edition
October 2014
2 PCE-5B18-88B1E (PCE-7B19-88B1E) Startup Manual
The backplane has a number of connectors and jumpers
that allow you to configure your system to suit your
application. The table below lists the function of each of
the jumpers and connectors:
Connectors
Part Reference Function
SHBA1 ~ SHBD1 PICMG 1.3 CPU board slot
PPCIE1
PCE-7B19-88: PCIe p2-x8 slot
PCE-5B18-88: Not available
PPCIE2
PCE-7B19-88: PCIe p2-x8 slot
PCE-5B18-88: PCIe x16 slot
P1PCIX1 ~ P1PCIX4
64 Bit / 66 MHz PCI-X bus slot
(primary 1)
P2PCIX1 ~ P2PCIX4
64 Bit / 66 MHz PCI-X bus slot
(primary 2)
PPCI1 ~ PPCI3
32 Bit / 33 MHz PCI-(X) bus slot
(primary 3)
SPCI1 ~ SPCI5
32 Bit / 33 MHz PCI-(X) bus slot
(secondary)
EATXPWR1 ATX 2.0 power connector
EATPWR1 AT 12-pin power connector
ATX12V1
ATX 12 V auxiliary 4-pin power
connector
ATX12V2
ATX 12 V auxiliary 4-pin power
connector
EATX12V1
ATX 12 V auxiliary 8-pin power
connector
PWR3V1 3.3 V auxiliary power connector
PWR3V2 3.3 V auxiliary power connector
PWR5V1 5 V auxiliary power connector
PWR5V2 5 V auxiliary power connector
VOLT1
Alarm board / CMM power con-
nector
FAN1 ~ FAN7 Fan connectors
FANDEC1 Fan speed detector connector
SMBUS1 ~ SMBUS3 Chassis sensor board connectors
JFP1 Power and reset button connector
IPMB1 IPMB connector
USB12 Two USB port pin header
USB34 Two USB port pin header
PSON2
5VSB and PSON connector for AT
power supply
Jumpers
Part Reference Function
PSON1 ATX / AT mode selection
JP1VIO1
Primary 1 PCI-X bus VIO voltage
selection
JP2VIO1
Primary 2 PCI-X bus VIO voltage
selection

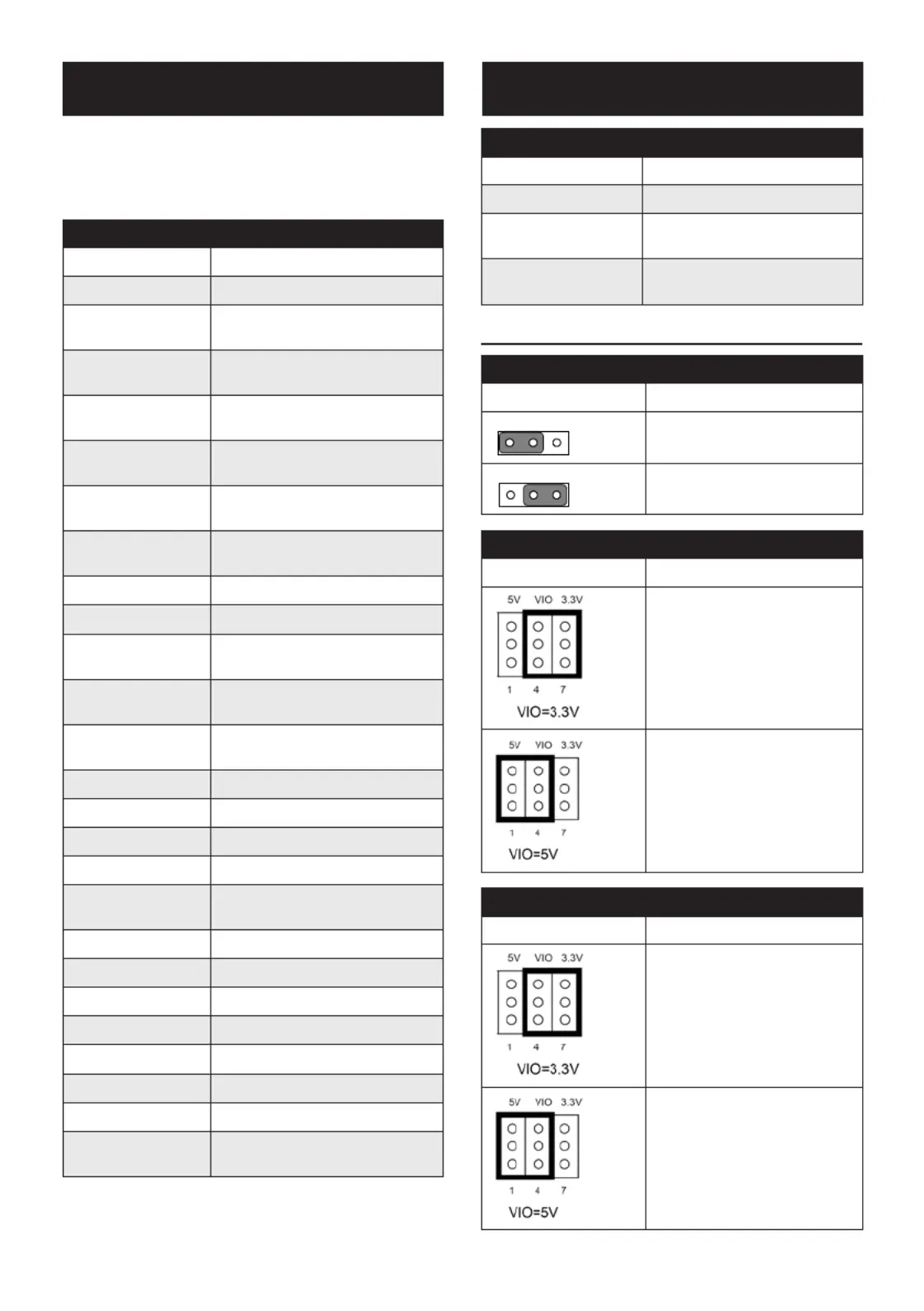

Jumper Settings
PSON1: ATX / AT Mode Selection
Jumper Setting Function
AT Mode
ATX Mode (Default)
JP1VIO1: Primary 1 PCI-X Bus VIO Voltage Selection
Jumper Setting VIO
3.3 V (Default)
5 V
JP2VIO1: Primary 2 PCI-X Bus VIO Voltage Selection
Jumper Setting VIO
3.3 V (Default)
5 V
123
123
Connectors and Jumpers Connectors and Jumpers (Cont.)
PCE-5B18-88B1E (PCE-7B19-88B1E) Startup Manual 3
11 12 V
12 3.3 V
13
3.3 V
14 -12 V
15 GND
16 PSON#
17 GND
18 GND
19 GND
20 -5 V
21 5 V
22 5 V
23 5 V
24 GND
EATPWR1
Pin Name
1 PWROK
2 5 V
3 12 V
4 -12 V
5 GND
6 GND
7 GND
8 GND
9 -5 V
10 5 V
11 5 V
12 5 V
ATX12V1 ~ ATX12V2
Pin Name
1 GND
2 GND
3 12 V
4 12 V
PCI-X Jumper Setting
Bus Rate /
Mode
JPCIXAPA1
JPCIXAPB1
JSEL100A1
JSEL100B1
JM66ENA1
JM66ENB1
PCI 25MHz (1-2) GND (1-2) Pull up (2-3) GND
PCI 33MHz (1-2) GND (2-3) GND (2-3) GND
PCI 50MHz (1-2) GND (1-2) Pull up (1-2) Pull up
PCI 66MHz (1-2) GND (2-3) GND (1-2) Pull up
PCIX 50MHz (2-3) Pull down (1-2) Pull up X (Pull up)
PCIX 66MHz (2-3) Pull down (2-3) GND X (Pull up)
PCIX 100MHz (open) Pull up (1-2) Pull up X (Pull up)
PCIX 133MHz (open) Pull up (2-3) GND X (Pull up)
Note: *”X” means “don’t care this pin”
*”Open” means “don’t need Jumper”
P1PCIX and P2PCIX PCI Bus Rate Indicator
Bus Rate /
Mode
D148
D183
D149
D185
D146
D182
D147
D184
PCI 25MHz OFF OFF ON OFF
PCI 33MHz OFF OFF ON ON
PCI 50MHz OFF OFF OFF OFF
PCI 66MHz OFF OFF OFF ON
PCIX 50MHz OFF ON X OFF
PCIX 66MHz OFF ON X ON
PCIX 100MHz ON ON X OFF
PCIX 133MHz ON ON X ON
Connector Pin Definitions
EATXPWR1
Pin Name
1 3.3 V
2 3.3 V
3 GND
4 5 V
5 GND
6 5 V
7 GND
8 PWROK
9 5VSBY
10 12 V
Connectors and Jumpers (Cont.) Connectors and Jumpers (Cont.)
