Pagina 1/7
MIOe-210 Startup Manual 1
Before you begin installing your board, please make sure
that the following items have been shipped:
• 1 x MIOe-210 module
• 2 x COM RS-422/485 Cable (P/N 1703040157)
• Startup Manual
If any of these items are missing or damaged, please con-
tact your distributor or sales representative immediately.
Note1: Acrobat Reader is required to view any PDF file.
Acrobat Reader can be downloaded at: www.
adobe.com/Products/acrobat/readstep2.html
(Acrobat is a trademark of Adobe)
MIOe-210 MI/O Extension Module, 4 x RS232/422/485, 2 x RS422/485,
8-bit GPIO
Startup Manual
General
• Bus Interface: MI/O Extension
• Chipset:
SMSC SCH3114
• Ports: 4 x RS232/422/485, 2 x RS422/485
• GPIO: 8-bit with +3.3V level
Communications
• Data Bits: 5, 6, 7, 8
• Data Signals:
-- RS-422: TxD+, TxD-, RxD+, RxD-
-- RS-485: DATA+, DATA-
-- RS-232: TxD, RxD, RTS, CTS, DTR, DSR, DCD, RI,
GND
• IRQ: Share single IRQ, Depends on MI/O CPU Board
• Parity: even, odd, sticky or no
• Speed: 50 to 460k, 921k1 and 1.5M1 Baud
• Stop Bits: 1, 1.5, 2
Mechanical and Environmental
• Dimensions (L x W): 146 x 102 mm (5.7 x 4 inches)
• Power Supply Voltage: By MI/O Extension only
• EFT Protection: Air gap ±15kV, Contact ±8kV
• Power Requirement: +12 V ± 10%
• Operating Temperature: 0~60°C (32~140°F)
• Operating Humidity: 0 ~ 90 % relative humidity, non-
condensing
• Storage Temperature: -40° C ~ 85° C and 60° C @ 95%
RH Non-Condensing
• Weight: 0.186 kg (0.41 lb)
Specications Packing List
For more information on this and other Advantech
products, please visit our website at:
http://www.advantech.com
http://www.advantech.com/eplatform
For technical support and service, please visit our
support website at:
http://service.advantech.com.tw/support/
This manual is for the MIOe-210.
Part No. 2006E21000
Printed in China
1st Edition
April 2012

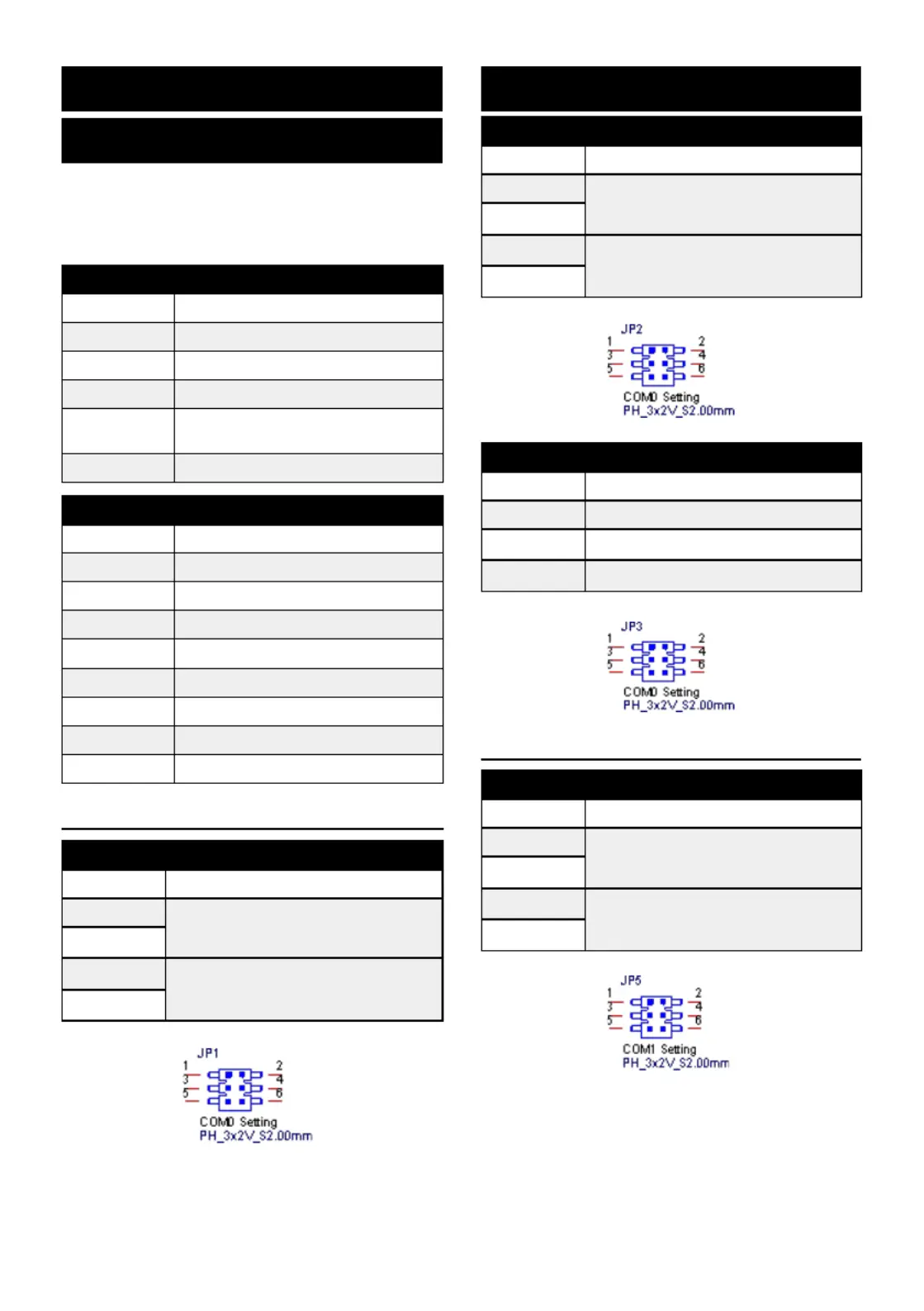

2 MIOe-210 Startup Manual
Jumpers and Connectors
The board has a number of connectors and jumpers that
allow you to configure your system to suit your application.
The table below lists the function of each of the jumpers and
connectors.
Jumpers
Label Function
JP1, JP2, JP3 COM0 RS-232/422/485 setting
JP4, JP5, JP6 COM1 RS-232/422/485 setting
JP7, JP8, JP9 COM2 RS-232/422/485 setting
JP10, JP11,
JP12
COM3 RS-232/422/485 setting
JP13 COM4/5 RS-422/485 setting
Connectors
Lable Function
CN1 MIOe
CN2 GPIO
CN4 COM4
CN6 COM5
CN9 COM0
CN10 COM1
CN11 COM2
CN12 COM3
COM0 setting
JP1: COM0
Setting Function
1-3*
RS-232
2-4*
3-5
RS-422/485
4-6
*: default
JP2: COM0
Setting Function
1-3*
RS-232
2-4*
3-5
RS-422/485
4-6
*: default
JP3: COM0
Setting Function
1-2 RS-485
3-4 RS-422
5-6* RS-232
*: default
COM1 setting
JP5: COM1
Setting Function
1-3*
RS-232
2-4*
3-5
RS-422/485
4-6
*: default
Specications
Jumpers and Connectors

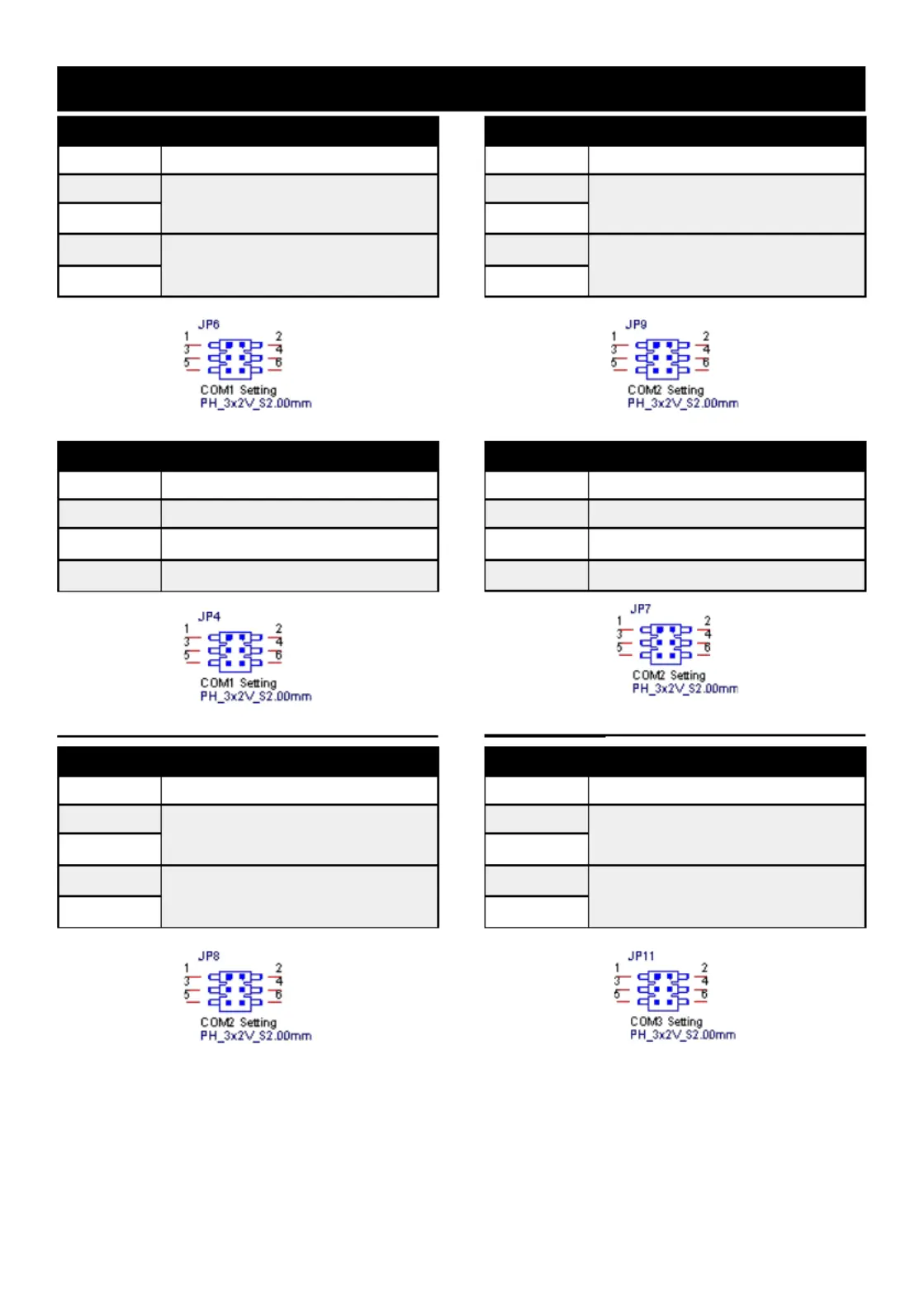

MIOe-210 Startup Manual 3
JP6: COM1
Setting Function
1-3*
RS-232
2-4*
3-5
RS-422/485
4-6
*: default
JP4: COM1
Setting Function
1-2 RS-485
3-4 RS-422
5-6* RS-232
*: default
COM2 setting
JP8: COM2
Setting Function
1-3*
RS-232
2-4*
3-5
RS-422/485
4-6
*: default
JP9: COM2
Setting Function
1-3*
RS-232
2-4*
3-5
RS-422/485
4-6
*: default
JP7: COM2
Setting Function
1-2 RS-485
3-4 RS-422
5-6* RS-232
*: default
COM3 setting
JP11: COM3
Setting Function
1-3*
RS-232
2-4*
3-5
RS-422/485
4-6
*: default
Jumpers and Connectors
