MIO-5377 Startup Manual 1
Before you begin installing your card, please make sure that
the following items have been shipped:
1. 1 x MIO-5377 SBC
2. 1 x SATA cable 30 cm (p/n: 1700006291)
3. 1 x SATA power cable 35 cm (p/n: 1700031583-01)
4. 1 x USB 2.0 cable 20 cm (p/n: 1700030406-01)
5. 1 x Audio cable 20 cm (p/n: 1700019584-01)
6. 2 x COM RS-232/422/485 Cable 20 cm (p/n:
1700030404-01)
7. 2 x COM RS-232 cable 20 cm (p/n: 1700031582-01)
8. 1 x Cooler (p/n: 1970005512T001) or 1 x heatsink
(1970005548T001))
9. 1 x Startup manual (p/n: 2046537700)
10. 1 x Screw kit (3 x screws for M.2 device & 4 x screws
and stand-os for heatsink/cooler)
11. 1 x DeviceOn Package
If any of the above items are missing or damaged, contact
your distributor or sales representative immediately.
Note1: For detailed contents regarding MIO-5377,
please refer to information on the support web-
site: http://support.advantech.com.tw/.
Note2: Adobe Reader is required to view any PDF le.
Adobe Reader can be downloaded at: http://get.
adobe.com/tw/reader/otherversions/. (Adobe is
the trademark of Adobe Systems Incorporated.)
MIO-5377 3.5” MI/O-Compact SBC, 12th Gen.
Intel
®
Core™ P/U-series (i7/i5/i3/Celeron
®
)
Startup Manual
• CPU:
- Intel
®
i7-1270PE (4P+8E Core, 1.80 GHz)
- Intel
®
i7-1265UE (2P+8ECore, 1.70 GHz)
- Intel
®
i5-1245UE (2P+8ECore, 1.50 GHz)
- Intel
®
i3-1215UE (2P+4ECore, 1.20 GHz)
- Intel
®
7305E (1P+4ECore, 1.00 GHz)
• SystemMemory:Dual Channel DDR5-4800 up to 64GB
• BIOS:AMI EFI 256 Mbit
• Watchdogtimer: 65536 level, 0~65535 sec
• TPM2.0
• iManager3.0:Yes
• Battery: Lithium 3V/210mAH
• Audio:Supports high denition audio (HD), line-in,
lineout, and mic-in
• ExpansionInterface:
- 1 x M.2 E-Key 2230 (PCIe x1, USB 2.0 to support
wireless module)
- 1 x M.2 B-Key 3042/3052 (PCIex1, SATA, USB2.0);
default with 3042 module length
- 1 x M.2 M-Key 2280 (PCIe p1-x4 Gen.4 for PCIe SSD)
Display
• Controller: Intel
®
SoC integrated Iris
®
Xe graphics
• Maximumresolution:
- LCD: Dual channel 18/24-bit, up to 1920 x 1200
- HDMI: 1 x HDMI 2.0b, up to 4096 x 2160 @60Hz
- DP: 1 x DP1.4a, up to 4096 x 2304 @60Hz
• Multipledisplay:Four simultaneous displays via LVDS,
HDMI, DP, Type-C Alt.DP
EthernetInterface
• Speed: 10/100/1000/2500 Mbps
• Controller: LAN1: Intel i219LM, LAN2: Intel i226
I/O
• InternalI/O:1 x SATA, 2 x USB 2.0, 2 x RS-232/422/485,
2 x RS-232 (4-wire), 3 x I2C, 8-bit GPIO, Inverter, HD
Audio, LVDS, 2x CAN, 1 x FAN, 1 x USB4
• RearI/O: 2 x RJ-45, 1 x HDMI, 1 x DP, 1 x USB Type-C, 4
x USB3.2, 1 x DC-Jack (optional)
• Powerconnectortype: Default supports 2 x 2-pin ATX
power connector (90D), DC jack is supported by request
• Optional: DC-IN Jack
MechanicalandEnvironmental
• Dimensions(LxW): 146 x 102 mm (5.7” x 4”)
• Powersupplytype: ACPI supports for ATX only
• Powerrequirement:Vin: 12V-24V +/- 10%
• Operatingtemperature:Standard: 0 ~ 60°C (32 ~
140°F)
• NetWeight:0.67 kg/1.47 lb (reference weight of total
package)
GeneralPackingList
For more information about this and other Advantech
products, visit our website at
http://www.advantech.com
http://www.advantech.com/eplatform
For technical support and customer service, visit our
support website at
http://support.advantech.com
This manual is for the MIO-5377 Series.
Part No. 2046537700
Printed in China
Edition 1
February 2023
2 MIO-5377 Startup Manual

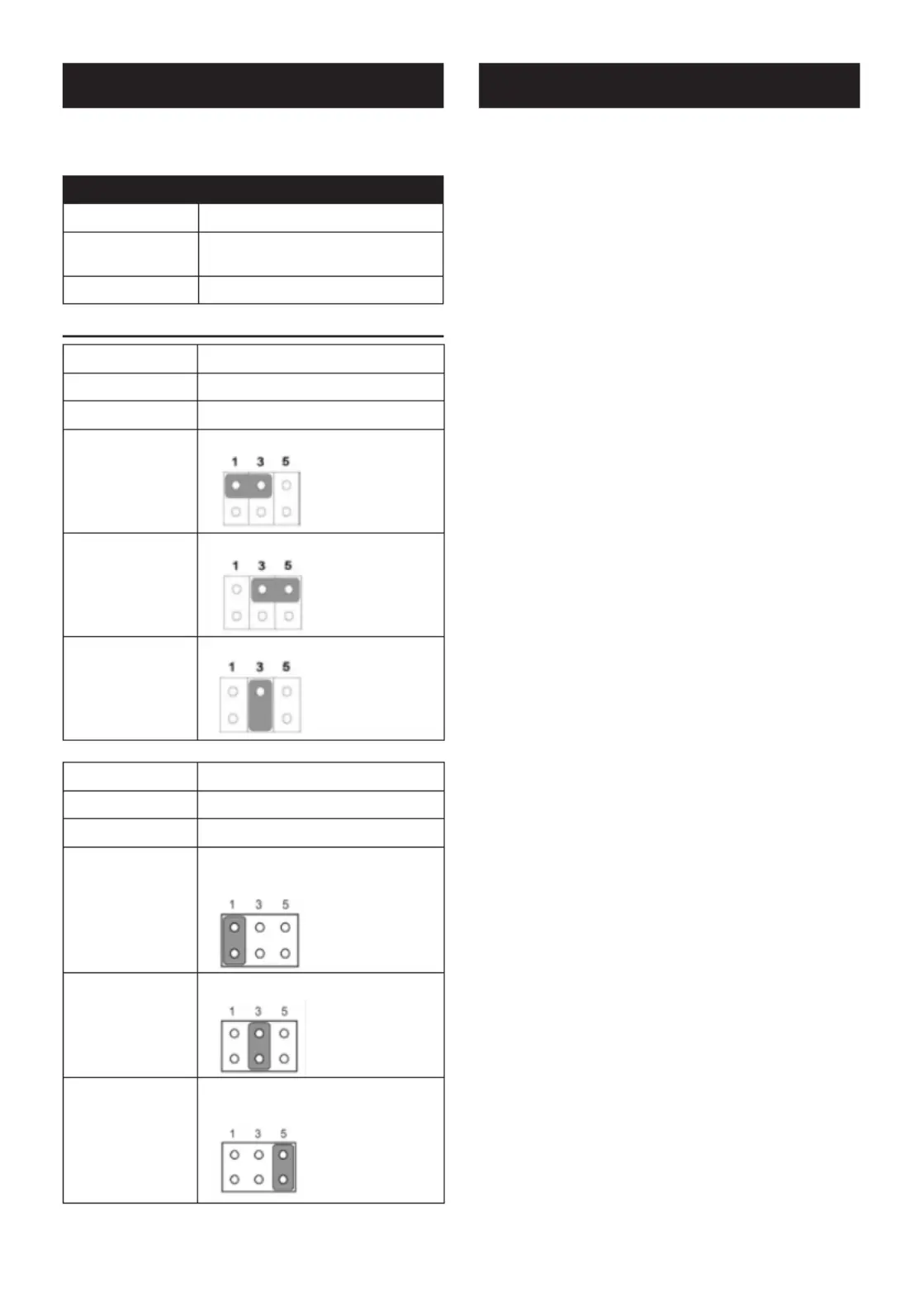

The board has a number of jumpers that allow you to con-
gure your system to suit your application. The table below
lists the function of each of the jumpers and connectors.
Jumpers
Label
Function
VDD1
LVDS Panel Voltage Selection
Jumper
J1 AT mode /Load BIOS default
JumperSetting
VDD1 PanelVoltageSelectionJumper
Setting Function
JumperShort PanelVoltage
1-3
+3.3V (Default)
3-5
+5V
3-4
+12V
J1 ATmode/LoadBIOSdefault
Setting Function
JumperShort PanelFunctional
1-2
1-2 open: ATX mode
1-2 short: AT mode(default)
3-4
Normal_BIOS (default)
5-6
5-6 open: Normal (default)
5-6 short: Load BIOS default
To load factory defaults, follow this:
1. Power o
2. Remove the Jumper (3-4) and add to (5-6), then power
on.
BIOS will load factory defaults (does not clear time or
clear CMOS), a message will remind the user to shut
down system and restore Jumper (3-4).
3. Power on again.
If you want to Clear CMOS, remove battery (battery 1).
System will pop up a message, then wait for 3 seconds.
RTC time will clear but keep the BIOS settings
Caution: The computer is provided with a battery-power
real-time clock circuit. There is a danger of explo-
sion if battery is incorrectly replaced.
Replace only with same or equivalent type
recommended by the manufacturer. Discard
used batteries according to manufacturer’s
instructions.
JumpersandConnectors JumpersandConnectors(Cont.)
MIO-5377 Startup Manual 3
Connectors
Locations

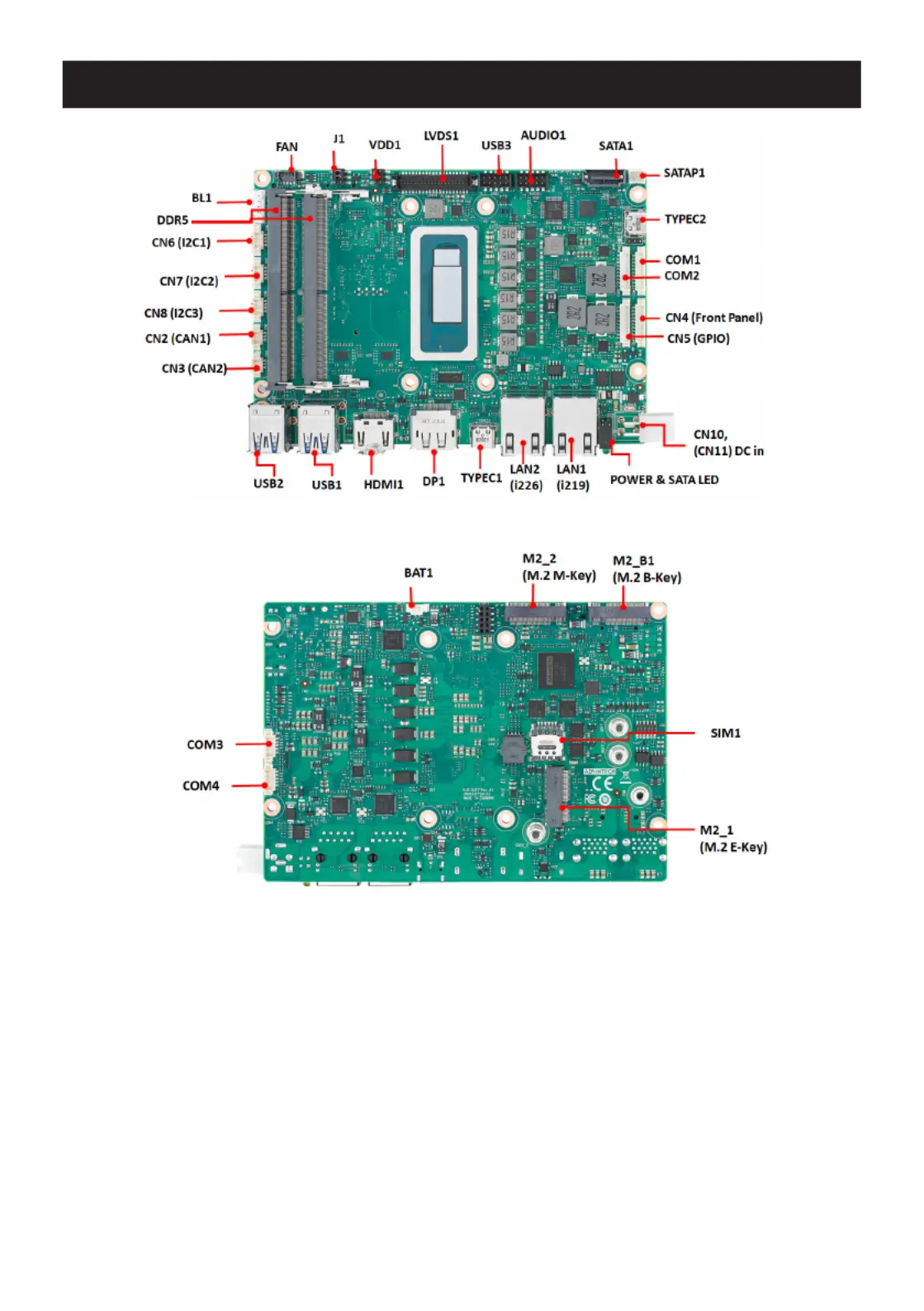

Figure 1: MIO-5377 Connector Locations (Top Side)
Figure 2: MIO-5377 Connector Locations (Bottom Side)
