MIO-3260 Startup Manual 1
Before you begin installing your card, please make sure that
the following items have been shipped:
1. 1 x MIO-3260 SBC
2. 1 x Startup Manual
3. 1 x SATA cable P/N: 1700006291
4. 1 x Power cable* P/N: 1700023340-01
5. 1 x Inverter and SATA P/N: 1700023339-01
power cable*
6. 1 x VGA cable* P/N: 1700023341-01
7. 2 x USB cables* P/N: 1700019000/
1700002172
8. 1 x LAN cable* P/N: 1700019001
9. 1 x Audio cable* P/N: 1700019584
10. 1 x COM cable* P/N: 1701200220
11. 1 x Heatsink P/N: 1960063455T001
12. Screw & stud pack (2 x screws P/N: 9666226200E/
for Mini PCIe, 4 x M3 studs and 9666226300E*
screws for heatsink
* Only for MIO-3260C-S8A1E
If any of these items is missing or damaged, please contact
your distributor or sales representative immediately.
Note 1: For detailed contents of MIO-3260, please refer
to information on the support web site: http://
support.advantech.com.tw/.
Note 2: Acrobat Reader is required to view any PDF
file. Acrobat Reader can be downloaded at:
http://get.adobe.com/reader/ (Acrobat is a trade-
mark of Adobe)
MIO-3260 Intel
®
Atom
TM
E3825 & Celeron
®
N2930 Pico-ITX
SBC, with DDR3L, 18/24-bit LVDS, VGA, DP/HDMI, GbE, Full-
size Mini PCIe, 4 USB, 2 COM, SMBus, I2C, mSATA & MIOe
Startup Manual
• Heat spreader (99.5 x 70.5 x 15.7 mm)
P/N: 1960065074N001
• MIO-3260 Evaluation Board
P/N: MIOE-DB2100-00A1E
• LAN w/LED cable for MIO-3260C
P/N: 1700024079-01
General
• CPU: Intel
®
Atom™ E3825/ Celeron
®
N2930
• System Memory: 1 x 204-pin SODIMM socket DDR3L
1333 MHz (N2930) / 1066 MHz (E3825), up to 8 GB
• L2 Catch: 2 MB (N2930) / 1 MB (E3825)
• BIOS: AMI EFI 16 Mbit Flash ROM
• Watchdog Timer: 255 level interval timer
Battery: Lithium 3 V/210 mAH
Note: How to clear CMOS (follow steps below):
1. Turn off system power.
2. Unplug CR2032 battery cable on BH1.
3. Wait for 15 sec or short BH1 pin1-2.
4. Connect battery cable on BH1.
5. Turn on system power.
• Serial ATA: One SATA II interface, up to 300 MB/s
• Expansion Interface:
- 1 x Full-size Mini PCIe (Supports mSATA or USB
interface module)
- 1 x MIOe
- 2 x 64pin connectors
MIOe Expansion Slot
• Interface: USB3.0, SMBus, LPC, 2 x PCIe x1, HD Audio
Line-out, DisplayPort or HDMI supported by request, +5
Vsb/+12 Vsb power, Power On, Reset
• Total peripheral power supply output: 5 V @ 3 A for
CPU board and MI/O Extension module in total, 12 V @ 2
A for MI/O Extension module
64-pin Expansion Connectors
• 64-pin connecter A: 12V DC input, Inverter, VGA, 2 x
USB2.0, 1GbE w/ LED
• 64-pin connecter B: SMBus, I2C, Power button, Reset
button, HDD/Power LED, 2 x USB2.0, 8-bit GPIO, HD
Audio Line in, Line out, Mic in, 2 x RS-232/422/485
Specications
Packing List
For more information on this and other Advantech
products, please visit our website at:
http://www.advantech.com
http://www.advantech.com/eplatform
For technical support and service, please visit our
support website at:
http://service.advantech.com.tw/support/
This manual is for the MIO-3260 Series.
Part No. 2006326000
Printed in China
1st Edition
April 2015
Optional Accessories
2 MIO-3260 Startup Manual
CN9 VGA*
CN10 2 x USB 2.0*
CN11 Gigabit Ethernet*
CN11_1 Gigabit Ethernet with LED**
CN14 SATA
CN16 Mini PCIE/mSATA
CN29 MIOe
CN31 18/24-bit LVDS panel
*Only for MIO-3260C-S8A1E
**Supported by request

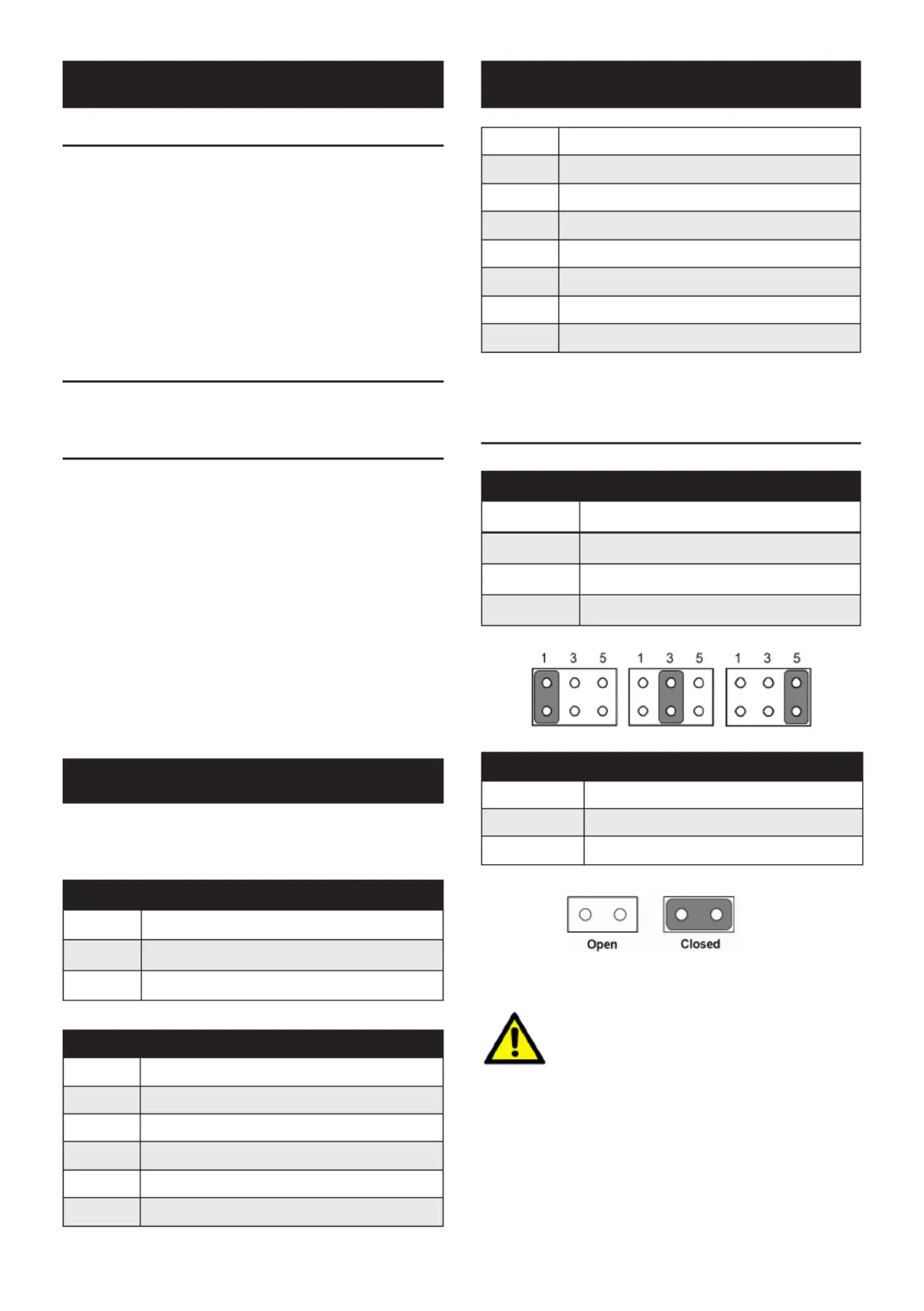

Jumper Settings
J1:
LCD Power / Auto Power On
Setting
Function
(1-2) +5 V
(3-4)* +3.3 V
(5-6)* Auto Power On
* Default
J2: Mini PCIE/ mSATA Select
Setting Function
(Close)* Mini PCIE
(Open) mSATA
* Default
Caution! The computer is provided with a battery-powered
real-time clock circuit. There is a danger of explo-
sion if battery is incorrectly replaced. Replace
only with same or equivalent type recommended
by the manufacturer. Discard used batteries ac-
cording to manufacturer’s instructions.
Display
• Controller: Intel® SoC N2930 / E3825, DirectX 11 and
OpenGL3.0 support for VGA, DP or HDMI display output
Chrontel CH7511 for 18/24 bit LVDS display output
• Output Interfaces:
- VGA: 2560 x 1600 at 60 Hz
- LVDS: Single channel 18/24-bit LVDS, up to
1400 x 900 at 60 MHz
- DP/HDMI: 2560 x 1600 at 60 Hz
- Dual Independent Display: LVDS+VGA or LVDS+DP/
DMI or VGA+DP/HDMI*
* DP/HDMI is from MIOe and HDMI supported by request
Ethernet Interface
• Speed: 10/100/1000 Mbps
• Controller: Intel
®
I210
Mechanical and Environmental
• Dimensions (L x W): 100 x 72 mm (3.9 x 2.8 inches)
Mechanical Drawings are on page 4 - 6.
• Power Requirement: Single +12 V ± 10% DC power
input
• Power Consumption (with 8 GB memory):
- Idle mode:
MIO-3260L-S3A1E(E3825): 4.47 W
MIO-3260L-S8A1E(N2930): 5.08 W
MIO-3260C-S8A1E(N2930): 4.22 W
- Max. load:
MIO-3260L-S3A1E(E3825): 7.13 W
MIO-3260L-S8A1E(N2930): 9.73 W
MIO-3260C-S8A1E(N2930): 8.71 W
• Operating Temperature: 0 ~ 60 °C (32 ~ 140 °F)
• Weight: 0.37 kg, reference weight of total package
The board has a number of jumpers that allow you to con-
figure your system to suit your application. The table below
lists the function of each of the jumpers and connectors.
Jumpers
Label Function
J1
LCD Power / Auto Power on
J2 Mini PCIE / mSATA Select
Connectors
Label Function
CN4 64Pin Connector A
CN5 64Pin Connector B
CN6 DDR3L SO-DIMM
CN7 12V Power Input*
CN8 Inverter Power Output/Internal SATA Power*
Jumpers and Connectors (Cont.)
Jumpers and Connectors
Specications (Cont. )
MIO-3260 Startup Manual 3

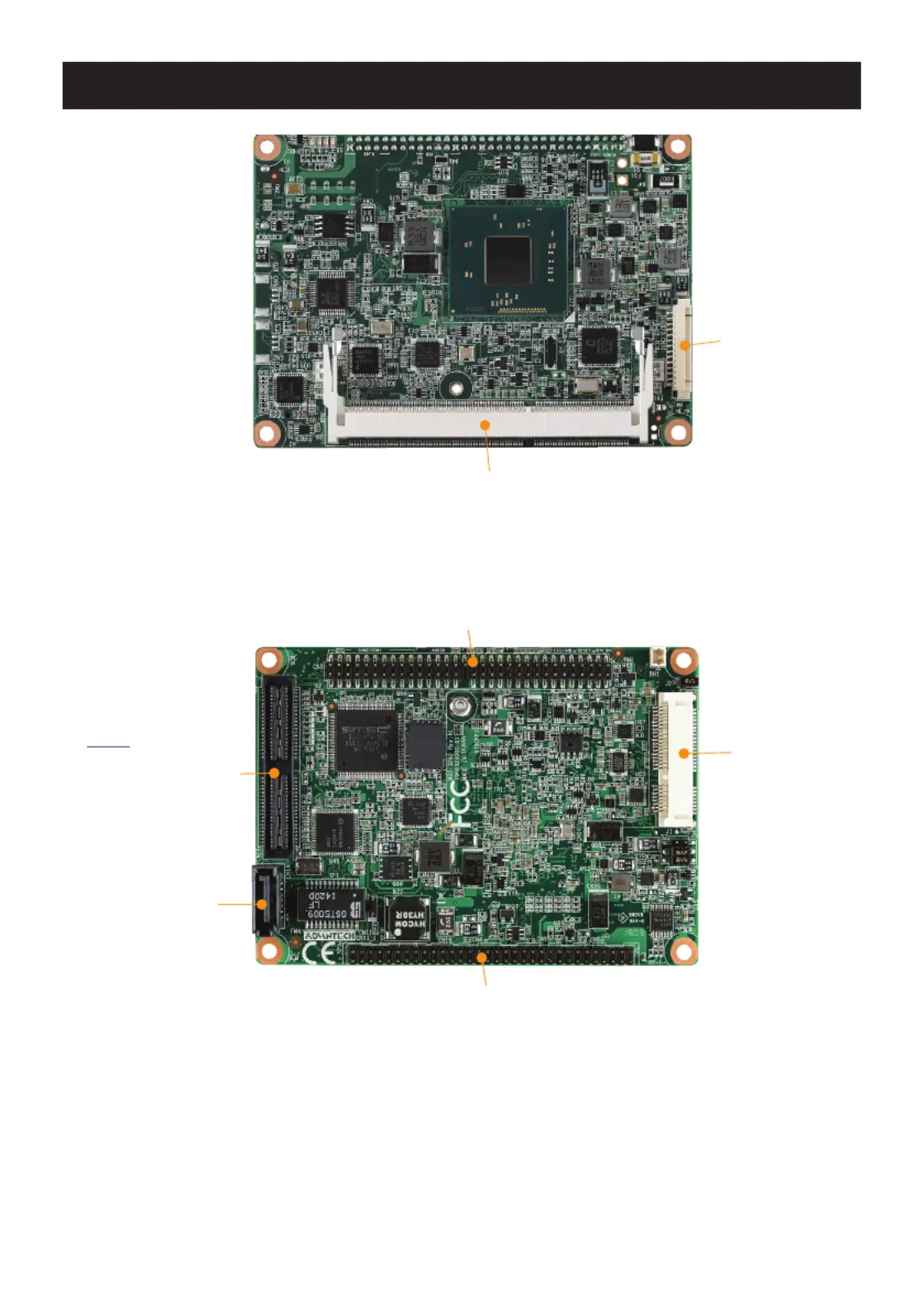

MIO-3260 Connector Locations
Figure 1: MIO-3260 Connecter Location (Top Side)
Figure 2: MIO-3260L Connecter Location (Bottom Side)
18/24-bit
LVDS
DDR3L SO-DIMM Socket
Full size Mini
PCIe or mSATA
MIOe
DP/HDMI,
USB3.0/2.0, 2 x PCIex1,
SMBus,
LPC, 12V/5V power,
HD Audio Line out.
Power on, Reset
SATA
64-Pin Connector A
12V DC in, inverter, VGA ,2 USB2.0, GbE w/ LED
64-Pin Connector B
HDD LED, Power LED, Power bu on, SMBus, I2C, 2xUSB2.0,
8-bit GPIO, HD Audio Line in/out/mic in, 2xRS-232/422/485
