MIO-2263 Startup Manual 1
Before you begin installing your card, please make sure that
the following items have been shipped:
1. 1 MIO-2263 SBC
2. 1 Startup Manual
3. 1 SATA cable p/n: 1700006291
4. 1 Audio cable p/n: 1700022444-01
5. 1 COM cable p/n: 1701200220
6. 1 SATA Power cable p/n: 1700019656
7. 1 USB cable p/n: 1700002172
8. AT power cable p/n : 1700019705
9. 1 Heatsink p/n: 1960063455T001
10. Screw and stud pack (2 screws
for Mini PCIe, 4 M3 studs and
screws for heatsink) p/n: 9666226300E
If any of these items are missing or damaged, please con-
tact your distributor or sales representative immediately.
Note 1: For detailed contents of MIO-2263, please refer
to Advantech website for detailed information.
Note 2: Acrobat Reader is required to view any PDF
file. Acrobat Reader can be downloaded at:
http://get.adobe.com/reader/ (Acrobat is a trade-
mark of Adobe)
Note 3: Default BIOS is supported for 64 bit OS installa-
tion, BIOS for 32 bit OS is supported by project,
please contact with sales representative for
details.
MIO-2263 Intel
®
Atom
TM
SoC J1900/ E3825 Pico-ITX
SBC, DDR3L, 18/24-bit LVDS, VGA or HDMI, 1 GbE,
Half-size Mini PCIe, 4 USB, 2 COM, SMBus,
mSATA & MIOe
Startup Manual
General
• CPU: Intel
®
Atom™ SoC Quad core J1900 2.0 GHz/ Dual
core E3825 1.33 GHz
• System Memory: 1 x 204-pin SODIMM socket DDR3L
1333 MHz (J1900) / 1066 MHz (E3825), up to 8 GB
• L2 Cache: 2 MB (J1900) / 1 MB (E3825)
• BIOS: AMI EFI 64 Mbit Flash ROM
• Watchdog Timer: 255 level interval timer
Battery: Lithium 3 V/210 mAH
Note: How to clear CMOS (Must follow steps below):
1. Turn off system power.
2. Unplug CR2032 battery cable on BH1.
3. Waiting for 15 sec or short BH1 pin1-2.
4. Connect battery cable on BH1.
5. Turn on system power.
• Serial ATA: Two SATA II interface, one supports 2.5” HDD
and another for mSATA devices, up to 300 MB/s
• USB: One USB 3.0 and three USB 2.0 ports
• Audio: High definition audio (HD), line-in, line-out
• GPIO: 8-bit general purpose input/output
• Expansion Interface: Half size Mini PCIe
MIOe Expansion Slot
• Interface: 2 x USB 2.0, 2 x PCIe x1, LPC, HD Audio
line-out, SMBus, DP or HDMI supported by request, 5
Vsb/12 Vsb
• Total peripheral power supply output: 5 V @ 3 A for
CPU board and MI/O Extension module totally, 12 V @ 2
A for MI/O Extension module
VGA/HDMI Interface
• Controller: Intel
®
SoC J1900 / E3825, DirectX 11 and
OpenGL3.0 support for VGA and HDMI display output
Chrontel CH7511 for 18/24 bit LVDS display output
• Output Interfaces:
- VGA: Up to 1920 x 1200
- HDMI: 1920 x 1080
- LVDS: Single channel 18/24-bit LVDS,
up to 1440 x 900
- Dual Display: VGA + LVDS or HDMI + LVDS
Ethernet Interface
• Supports single 10/100/1000 Mbps Ethernet interface
• Controller: Intel® i210
Specications
Packing List
For more information on this and other Advantech
products, please visit our website at:
http://www.advantech.com
http://www.advantech.com/eplatform
For technical support and service, please visit our
support website at:
http://service.advantech.com.tw/support/
This manual is for the MIO-2263 Series Rev. A1
Part No. 2006226301
Printed in China
2nd Edition
August 2014

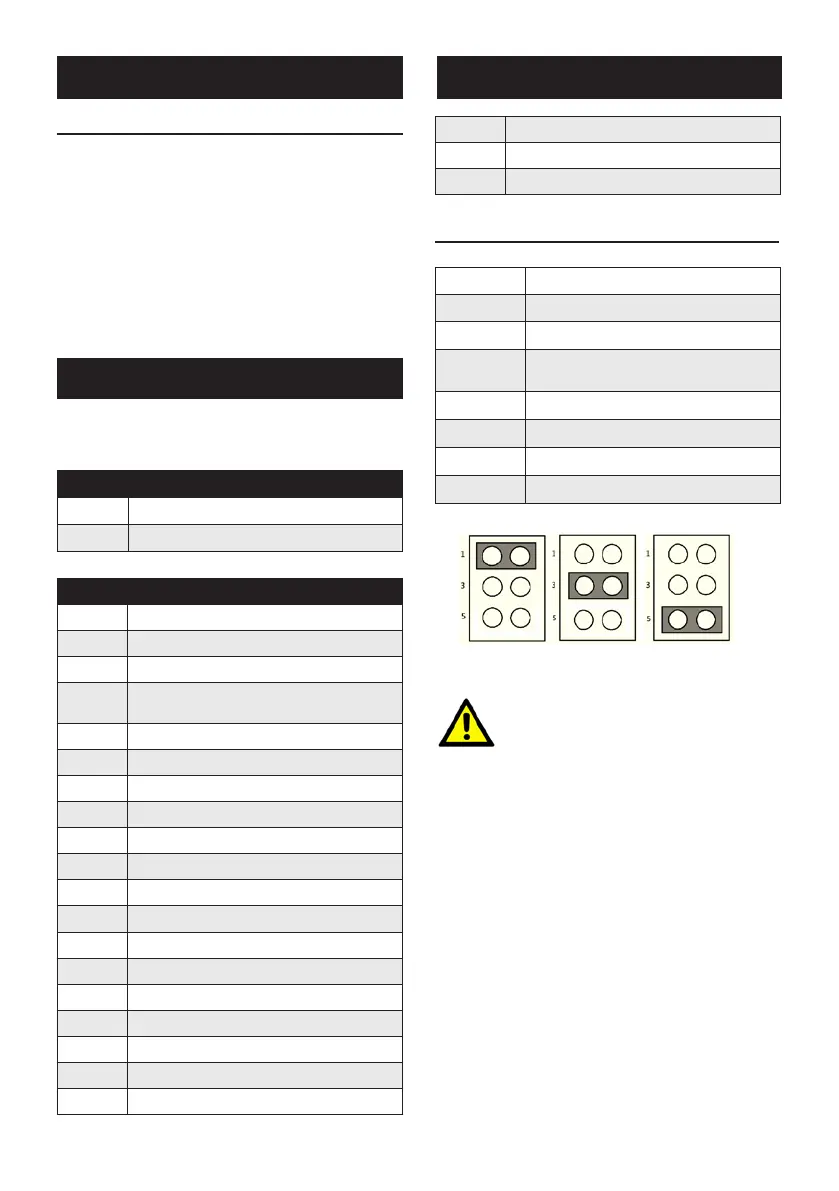

2 MIO-2263 Startup Manual
Mechanical and Environmental
• Dimensions: 100 x 72 mm (3.9” x 2.8”)
Mechanical Drawings are on page 4 - 6.
• Power Requirement: Single 12 V DC power input
• Power Consumption (with 8 GB memory):
- Typical in Window 8:
J1900: 0.86 A @ 12 V (10.59 W)
E3825: 0.59 A @12 V (7.08 W)
- Max in HCT:
J1900: 1.04 A @ 12 V (12.48 W)
E3825: 0.76 A @12 V (9.12 W)
• Operating Temperature: 0 ~ 60° C (32 ~ 140° F)
• Weight: 0.42 kg (0.93 lb) (reference total weight)
The board has a number of jumpers that allow you to con-
figure your system to suit your application. The table below
lists the function of each of the jumpers and connectors.
Jumpers
Label Function
J1
LCD Power / Auto Power on
Connectors
Label Function
CN1 12V Power Input
CN2 DC JACK (support by request)
CN3
12 V Power Input (2 x 3 pin support by
request)
CN6 DDR3L SO-DIMM
CN9 GPIO
CN11 VGA
CN12 HDMI
CN13 Front Panel
CN14 S ATA
CN15 m SATA
CN16 Mini PCIe
CN18 Internal USB
CN19 External USB3.0 + USB2.0
CN20 COM1/ COM2
CN24 Gigabit Ethernet
CN27 HD Audio
CN29 MIOe
CN30 Inverter Power/Internal SATA Power
Jumpers and Connectors
Jumpers and Connectors
Specications Cont.
CN31 18/24 bits LVDS Panel
CN33 SMBus
BH1 Battery
Jumper Settings
J1
LCD Power / Auto Power On
Part Number 1653003260
Footprint
HD_3x2P_79
Description
PIN HEADER 3*2P 180D(M) 2.0 mm
SMD 21N22050
Setting
Function
(1-2) +5 V
(3-4)* +3.3 V
(5-6)* Auto Power On
* default
Caution! The computer is provided with a battery-powered
real-time clock circuit. There is a danger of explo
sion if battery is incorrectly replaced. Replace
only with same or equivalent type recommended
by the manufacturer. Discard used batteries ac-
cording to manufacturer’s instructions.
