Pagina 1/3
MIC-3811 Startup Manual 1
Before you begin installing your IPC, please make sure that
the following items have been shipped:
1. 1 x MIC-3811-A1S1
2. 4 x M2*3LF/S D screws
3. 4 x M2.5x4L R/S D screws
4. 1 x Half-size Mini PCIe bracket
If any of these items are missing or damaged, please con-
tact your distributor or sales representative immediately.
Note: Acrobat Reader is required to view any PDF le.
Acrobat Reader can be downloaded at: www.
adobe.com/Products/acrobat/readstep2. html
(Acrobat is a trademark of Adobe)
MIC-3811 3U CompactPCI® Serial Dual Mini PCIe
Carrier Board
Startup Manual
The MIC-3811 is a CPCI-S.0 standard compliant peripheral
board controlled by a PCIe channel derived from a back-
plane connector P1. It is a dual mini-PCIe carrier board with
two onboard SIM card holders and mini-PCIe connectors,
routed by PCIe and USB2.0 interface. It allows connection
with dierent types of Mini PCIe form factor add on cards
like Wi-Fi/3G/4G LTE/GPS/DIO/CAN/ and MVB modules,
either full- or half-size style. The front panel is designed to
congure dierent module types. The default front panel is
designed with 4 x SMA holes and DB37 DIO and dual DB9
CAN panels are available as accessories per user request.
Features
• 3U Height CompactPCI serial interface peripheral board.
• Dual Mini PCIe module carrier.
• PICMG CPCI-S.0 CompactPCI® serial spec.
Specications
Standard Functions
• Backplane Interface: PCIe Gen2/USB2.0
• MiniPCIe Connector: 2 x PCIe,2 x USB2.0
• Accommodate Card: full- or half-size style MiniPCIe card
• Power: +12V: +12 V/0.1 A w/o module; power consump-
tion depending on the plugged in module.
Mechnical and Environment
• Dimensions (W x H x D): 160.00 x 100.00 mm (6.30” x
3.95”)
• Weight: 0.124g
• Non-Operating Temperature: -40 ~ 85°C (-40 ~ 185°F)
• Operating Temperature (depending on module): -40 ~
85°C (-40 ~ 185°F)
• Operating Humidity: 95% @ 40°C, non-condensing
• Non-Operating Humidity: 95% @ 60°C, non-condensing
• Vibration (5~500 Hz): 2.0 Grms
• Compliance: PICMG CPCI-S.0
Ordering Information
P/N List Description
MIC-3811-A1S1 MIC-3811 Dual Mini-PCIe Carrier Board
Packing List
For more information on this and other Advantech
products, please visit our website at:
http://www.advantech.com
For technical support services, please visit our support
website at:
https://www.advantech.com/support
This manual is for the MIC-3811-A1S1.
Part No. 2041381100
Printed in China
Edition 1
September 2024
Introduction

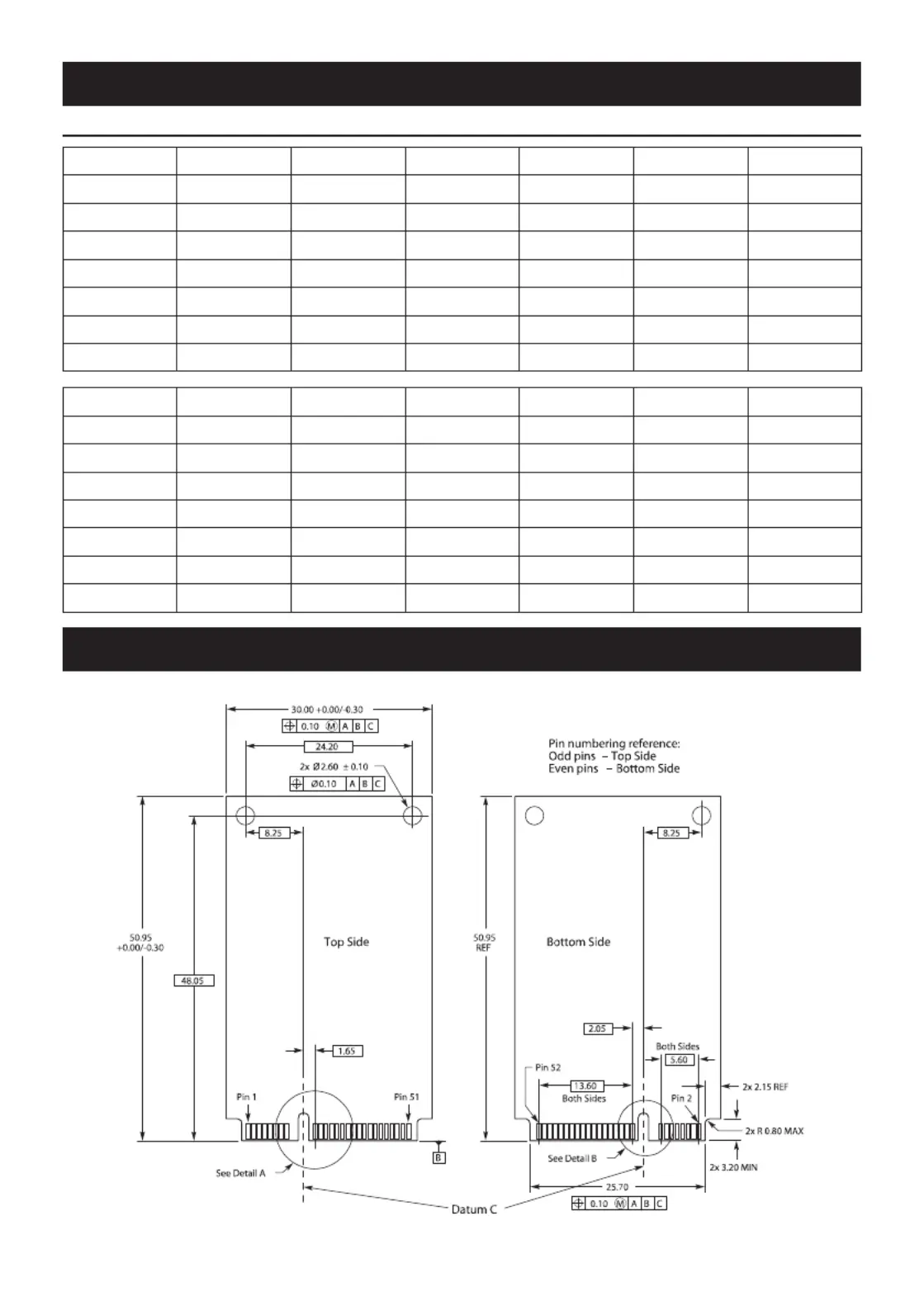

2 MIC-3811 Startup Manual
P1 Pin Denition
Pin A B C D E F
1-06 GND NC NC GND NC NC
1-05 1_PE_TX00+ 1_PE_TX00- GND 1_PE_RX00+ 1_PE_RX00- GND
1-04 GND 1_USB2+ 1_USB2- GND PE CLKIN+ PE CLKIN-
1-03 NC NC GA0 NC NC GA1
1-02 GND I2C_SCL I2C_SDA GND NC NC
1-01 +12V NC GND +12V +12V GND
Pin A B C D E F
Pin G H I J K L
1-06 GND NC NC GND NC NC
1-05 NC NC GND NC NC GND
1-04 GND NC NC GND NC NC
1-03 NC NC GA2 NC NC GA3
1-02 GND RST# WAKE_OUT# GND PCIE_EN# NC
1-01 +12V +12V GND +12V +12V GND
Pin G H I J K L
Mechanical Diagram
1. MIC-3811 Card Dimensions:
Full-Mini Card Form Factor
Pin Denition
MIC-3811 Startup Manual 3
Mechanical Diagram (Cont.)
Half-Mini Card Form Factor
2. MIC-3811 Mechanical Diagram:
