Pagina 1/22
ITA-3650 Startup Manual 1
Before you begin installing your IPC, please make sure that
the following items have been shipped:
1. 1 x ITA-3650 series IPC
2. 1 x Accessary box
3. 2 x Mounting brackets
4. 4 x Bottom rubber pads
5. 1x Warranty card
If any of these items are missing or damaged, please con-
tact your distributor or sales representative immediately.
Note : Acrobat Reader is required to view any PDF
le.Acrobat Reader can be downloaded at:
www.adobe.com/Products/acrobat/readstep2.
html (Acrobat is a trademark of Adobe)
ITA-3650 Series Fanless Compact Embedded IPC with Intel 6th &
7th Generation Desktop Processor
Startup Manual
Standard Functions
• Chip and chipset: Intel 6th & 7th Generation Desktop
Processor with H110 or C236 PCH
• BIOS: AMI SPI 64 MB Flash
• Memory: On board 8GB DDR4, optional on board 16G
max to 32GB with SO-DIMM
• Display: Intel HD Graphics 630/610/530/510
• Dual display mode:
- Resolution of single display up to 3840 x 2160 @ 30H
- Resolution of dual display up to 1920 x 1080 @ 60Hz
• Storage: Supports 1 x M-Sata slot and 2 x 2.5” HDD/SSD
• Expansion slot: Supports 1 x Mini PCIe slot
SystemSpecications
• Ethernet: 2 or 6 x 10/100/100M Ethernet
• USB: 2 x USB 2.0, 4 x USB 3.0
• DISPLAY: 1 x VGA, 1 x HDMI
• Serial port: 2 serial ports, with RS-232/422/485; 4 serial
ports only RS-232(ITA-3650-00A1); 8 serial ports, with
RS-232/422/485(ITA-3650N-00A1)
• Digital I/O: 12 GPIs and 12 GPOs(ITA-3650N-00A1)
• Audio: 1 x speaker out (supports 2-ch 4w speaker), 1 x
line in
Mechnical and Environment
• Dimensions (W x H x D):
ITA-3650-00A1: 210 x 76 x 240 mm(8.27’’ x 2.99’’ x 9.45’’)
ITA-3650N-00A1: 210 x 118 x 240 mm(8.27’’ x 4.65’’ x
9.45’’)
• Voltage input: DC 9 ~ 36 V input
• Working temperature:
-25 ~ 60° C (-13 ~ 140° F)
• Weight:
ITA-3650-00A1: 4.03 kg
ITA-3650N-00A1: 4.65 kg
Specications
Packing List
For more information on this and other Advantech
products, please visit our website at:
http://www.advantech.com
http://www.advantech.com/epc
For technical support and service, please visit our
support website at:
http://support.advantech.com
This manual is for the ITA-3650 Series.
Part No. 2041365000
Print in China
1st Edition
July 2019
2 ITA-3650 Startup Manual

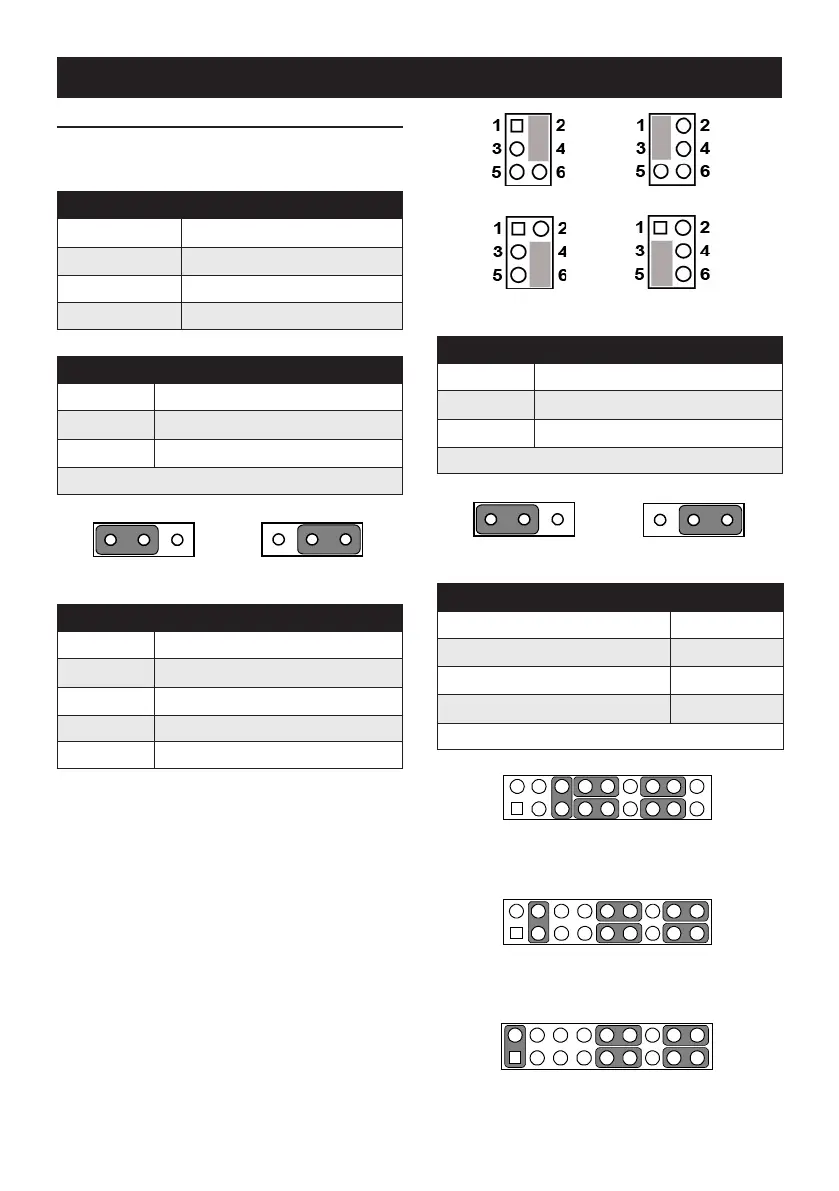

Jumper Setting
The board has a number of jumpers that allow you to con-
gure your system to suit your application.
The table below lists the function of each of the jumpers.
Name/Function
JCOMS1 Clear CMOS setting
VCCGPIO1 GPIO voltage setting
PSON1 Power on mode setting
JSETCOM 1~X COM mode setting
JCOMS1: Clear CMOS Setting
Pins Setting
1-2 Default*
2-3 Clear CMOS setting
* Default setting
VCCGPIO1: GPIO Voltage Setting
Pins Setting
2-4 +V3.3_SB
1-3 +V5_SB (Default)
4-6 +V3.3
3-5 +V5
1 2 3
1 2 3
+V3.3 +V5
PSON1: Power On Mode Setting
Pins Setting
1-2 AT mode
2-3 ATX mode*
* Default setting
JSETCOM 1~X: COM Mode Setting
Pins Setting
(5-6),(7-9),(8-10),(13-15),(14-16) RS232 mode*
(3-4),(9-11),(10-12),(15-17),(16-18) RS422 mode
(1-2),(9-11),(10-12),(15-17),(16-18) RS485 mode
* Default setting
RS-232 Mode
RS-422 Mode
RS-485 Mode
1 2 3
1 2 3
2 4 6 8 10 12 14 16 18
1 3 5 7 9 11 13 15 17
2 4 6 8 10 12 14 16 18
1 3 5 7 9 11 13 15 17
1 3 5 7 9 11 13 15 17
2 4 6 8 10 12 14 16 18
1 3 5 7 9 11 13 15 171 3 5 7 9 11 13 15 17
1 3 5 7 9 11 13 15 17
Jumpers
Default Setting Clear CMOS Setting
AT Mode ATX Mode
+V3.3_SB +V5_SB
