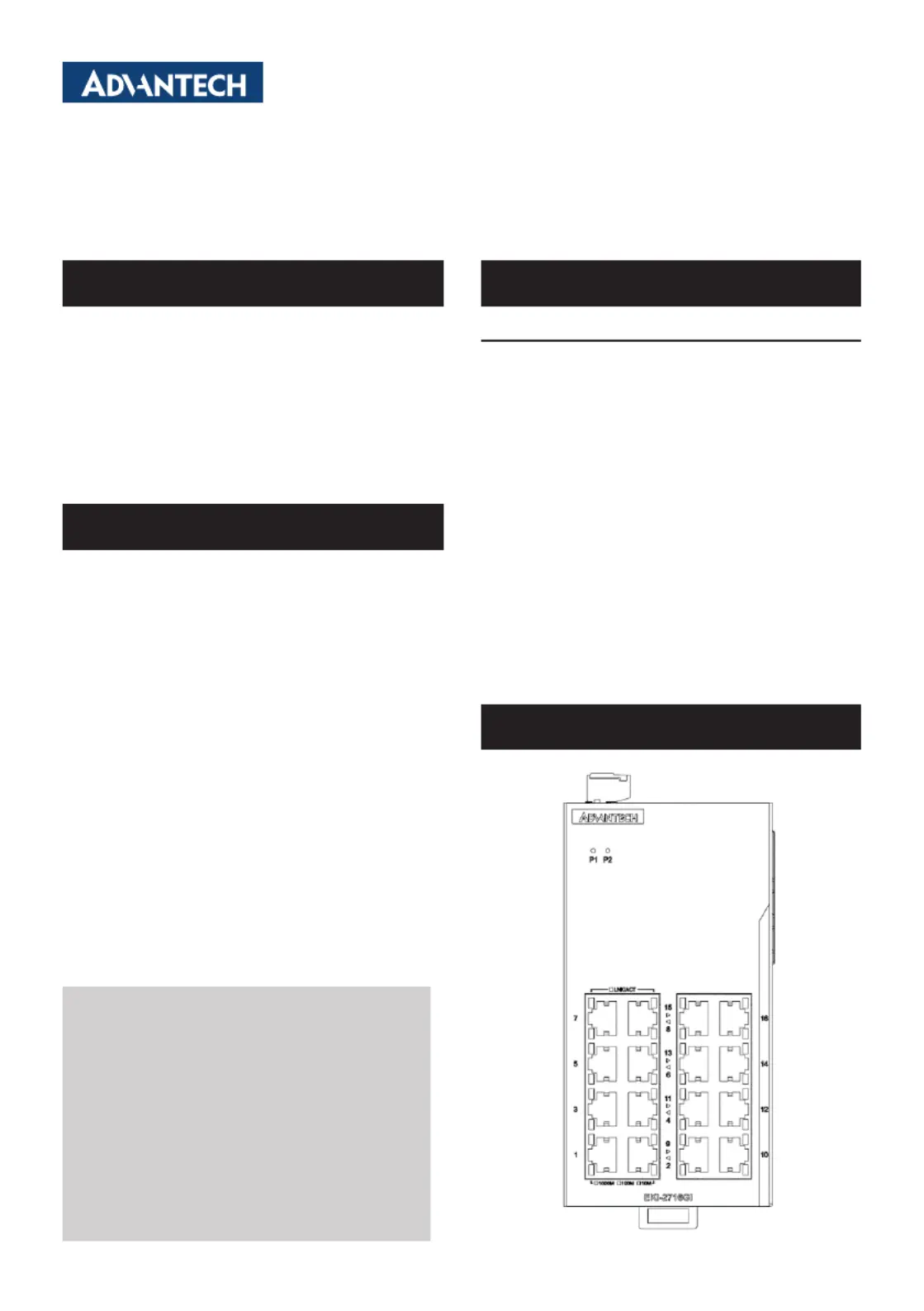

EKI-2716GI Startup Manual 1
Before installation, please make sure that you have re-
ceived the following:
• 1 x EKI-2716GI Ethernet Switch
• 1 x DlN-rail mounting bracket with 4 screws (M3 x 5L)
• 2 x Wall mounting brackets with 4 screws (M3 x 5L)
• 1 x EKI-2716GI Startup Manual
If anything is missing or damaged, contact your distributor
or sales representative immediately.
The EKI-2716GI industrial Ethernet switch provides 16 x
10/100/1000Mcopperports,oeringversatileconnectivity
for diverse applications. Users can conveniently enable or
disable Quality of Service (QoS), broadcast storm protec-
tion, and VLAN settings using DIP switches. Equipped with
12~48 VDC redundant power inputs and DIN-rail mounting,
these switches are designed for reliable performance in
industrial environments. With EMC Level 4 protection, it
resists electromagnetic interference, ensuring stable opera-
tion even in harsh conditions.
EKI-2716GI
16-port Gigabit Unmanaged Switch
Startup Manual
General
• Compatibility:IEEE 802.3, 802.3u, 802.3ab, 802.3x,
802.1p
• LAN:16 x 10/100/1000 BASE-T/TX RJ-45 ports
• TransmissionDistance:Up to 100 m
• Connectors:16 x RJ45
• SwitchArchitecture:Store and Forward
• PowerInput:12~48 VDC, redundant power
• PowerConsumption:9.6W
• Dimensions(WxHxD):72 x 140 x 105 mm
• Enclosure:IP30
• OperatingTemperature:-40 ~ 75°C (-40 ~ 167°F)
• StorageTemperature:-40 ~ 85°C (-40 ~ 185°F)
• OperatingHumidity:5 ~ 95% (non-condensing)
• StorageHumidity:5 ~ 95% (non-condensing)
• Safety:UL62368
• EMC:CE, FCC Class A, BSMI
• Warranty:5 years
Specications
Overview
For more information about this or other Advantech
products, visit the Advantech website at
http://www.advantech.com
For technical support and customer service, visit the
Advantech support website at
http://support.advantech.com.tw
This manual is for EKI-2716GI.
Part No. 2049271630 Edition 1
July 2025
PackingList
Overview

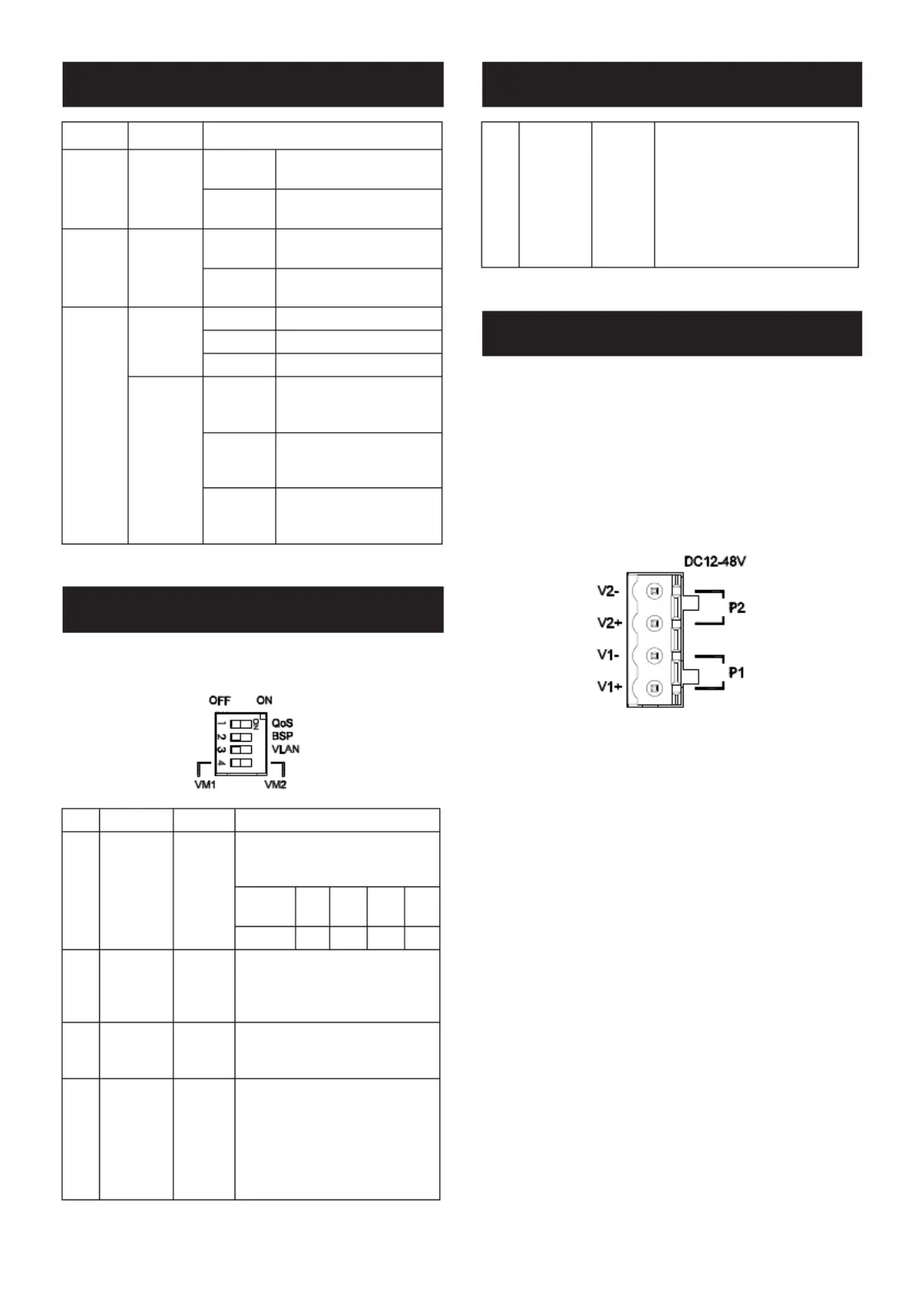

2 EKI-2716GI Startup Manual
4
VLAN
Mode 2
VM1
Switch the DIP to the ‘right’
position to activate VLAN Mode
2, 2-Grouping Mode.
This divides all ports into two
separate groups, ensuring no
interconnection between them.
Group 1 comprises Ports 1-8,
while Group 2 comprises Ports
9-16.
The EKI-2716GI switch supports dual +12~48 V
DC
power in-
puts. For operation, connecting either power V1 or V2 to the
switchissucient.Ifbothsetsareconnected,itenhances
redundancy. In the event of a power resource failure in one
set, it will automatically switch to the other set of power
resources.
1. Insert the positive and negative wires into the V+ and V-
contacts on the terminal block connector.
2. Tighten the wire-clamps screws to prevent the DC wires
coming loose.
Warning: This product is intended to be supplied by an UL
certiedpowersupplyorDCsourcesuitablefor
use at minimum Tma 75°C whose output meets
SELV or ES1 and is rated 12-48 Vdc, 1.2 A min.,
if need further assistance, please contact Advan-
tech for further information.
Warning: Ensure that the voltage of the power source is
correct before connecting the equipment to a
power outlet. By means of a power cord connect-
ed to a socket-outlet with earthing connection.
Warning: Never open the equipment. For safety reasons,
theequipmentshouldbeopenedonlybyqualied
skilled person.
Avertissement: Ce produit est destiné à être alimenté par
unealimentationcertiéeULouunesourcede
courant continu adaptée à une utilisation à au
moins Tma 75°C dont la sortie satisfait les con-
ditions SELV ou ES1 et est évaluée à 12-48 Vdc,
1.2 A minimum. Si vous avez besoin d’une aide
supplémentaire, veuillez contacter Advantech
pour plus d’informations.
Avertissement: Assurez-vous que la tension de la source
d’alimentation est correcte avant de connecter
l’équipement à une prise de courant. Utilisez un
cordon d’alimentation connecté à une prise avec
connexion à la terre.
Avertissement: N’ouvrez jamais l’équipement. Pour des Rai-
sons de sécurité, l’équipement ne doit être ouvert
queparunepersonnequaliée.
LED DescriptionColor
P1 Green
On
P1 is being supplied to
power input.
O
P1 is not being supplied
to power input.
P2 Green
On
P2 is being supplied to
power input.
O
P2 is not being supplied
to power input.
Copper
Ports
Green
(top)
On Ethernet port link
Blinking Ethernet port active
O No link
Green/
Amber
(bottom)
Green
On
When the port’s data
is being transmitted at
1000M
Amber
On
When the port’s data
is being transmitted at
100M
O
When the port’s data
is being transmitted
at 10M
This series provide 4-pin DIP switches for function setting.
DIPswitchdenitionislistedasfollows:
Pin SettingFunction Description
1 QoS ON
Switch the DIP to “ON” to
activate Quality of Service for
managing packet priorities.
CoS
Priority
7,6 5,4 3,2 1,0
WRR 8 4 2 1
2 BSP ON
Switch the DIP to “ON” to
activate broadcast storm
protection for all ports, limiting
the threshold to be 4Mbps.
3 VLAN ON
Switch the DIP to “ON” to ac-
tivate VLAN. (Running by the
following mode options.)
4
VLAN
Mode 1
VM1
Switch the DIP to the ‘left’ po-
sition to activate VLAN Mode
1, Port Isolated Mode.
All ports are isolated from
each other, with only Port
16 interconnected with other
ports.
DIPSwitch
LEDDenition
PowerConnection
DIPSwitch(Cont.)

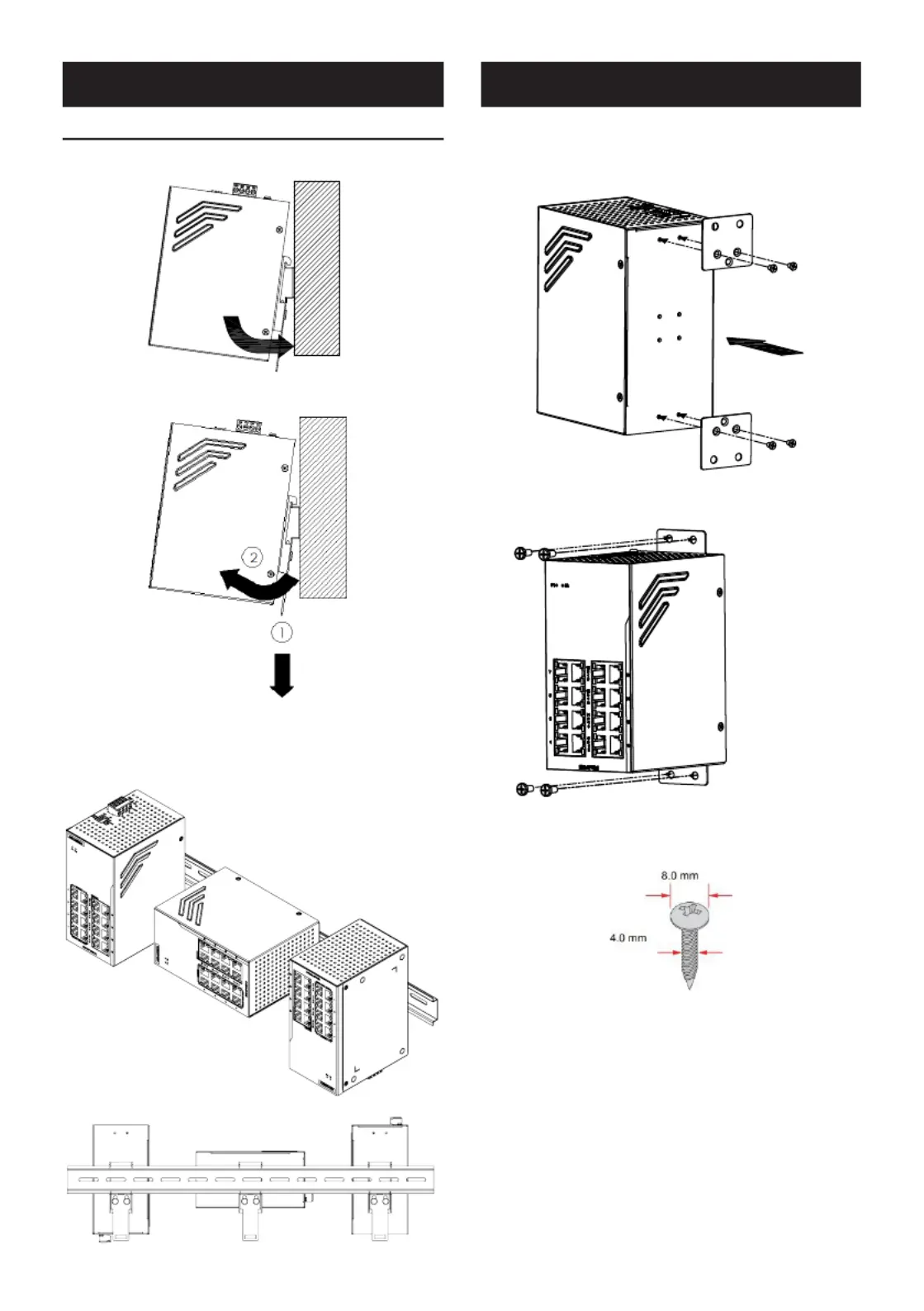

EKI-2716GI Startup Manual 3
DIN-railMounting
1. Install the DIN-Rail Mounting Kit.
2. Removing the DIN-Rail Mounting Kit.
DIN rail mounting screws (4 pcs, M3 x 5L): Diameter 2.9
mm, Length 5 mm.
3. SupportsexibleinstallationangleswiththeDin-railkit.
Mounting
1. Secure the wall brackets to the device with M3 screws,
seethefollowinggure.
Wall-mounting screws (4 pcs, M3 x 5L): Diameter 2.9
mm, Length 5 mm.
2. Align the wall mount plate over the screw on the wall.
3. To mount the wall plate to the wall, please use screws
of the size indicated in the illustration below (users must
provide their own screws).
Wall Mounting Screw Dimensions
Wall
Mounting
